Danfoss thermostatic valve TCAE 068U4334

Ai observat o eroare?

COD PRODUS

TCAE 068U4334

068U4334

Solicită ofertă PDF

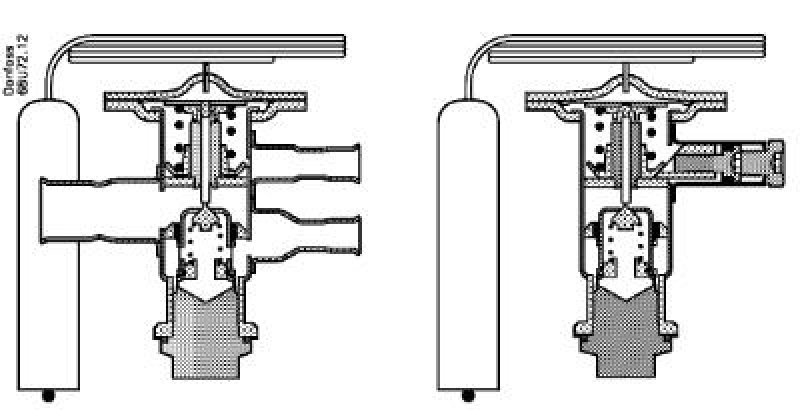

Thermostatic expansion valve, TCAE range

Pressure equalization: externally equalized.
Thermostatic expansion valve regulates the injection of refrigerant liquid into evaporators.

Specificații

Nominal capacity kW
Refrigerant R407C
MOP MOP 0°C
Domain NM: -40°C...-5°C
Equalizer ext.
Capillary tube length 1,5 m
Inlet x out. connections
- mm : 10 x 16

Tabel comparativ

Danfoss TCAE thermostatic valves
Modele	Connection	Inlet x outlet	Nominal capacity (kW)	Refrigerant	MOP	Domain	Equalizer	Inlet x out. connections
Modele	Connection	Inlet x outlet	Nominal capacity (kW)	Refrigerant	MOP	Domain	Equalizer	mm
TCAE 068U4284				R22	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4286				R22	MOP +15°C	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4290				R22	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 16
TCAE 068U4285				R22	Fără MOP (No MOP)	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4287				R22	MOP +15°C	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4291				R22	MOP 0°C	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4296				R134a	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4298				R134a	MOP +15°C	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4302				R134a	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 16
TCAE 068U4297				R134a	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4299				R134a	MOP +15°C	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4303				R134a	MOP 0°C	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4308				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4310				R404A R507A	MOP +15°C	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4314				R404A R507A	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 16
TCAE 068U4320				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	ext.	10 x 16
TCAE 068U4322				R404A R507A	MOP -20C	B: -60°C...-25°C	ext.	10 x 16
TCAE 068U4309				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4311				R404A R507A	MOP +15°C	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4315				R404A R507A	MOP 0°C	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4321				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	ext.	12 x 16
TCAE 068U4323				R404A R507A	MOP -20C	B: -60°C...-25°C	ext.	12 x 16
TCAE 068U4328				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4330				R407C	MOP +15°C	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4334				R407C	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 16
TCAE 068U4329				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4331				R407C	MOP +15°C	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4335				R407C	MOP 0°C	NM: -40°C...-5°C	ext.	12 x 16
TCAE 068U4340				R410A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4342				R410A	MOP +15°C	N: -40°C...+10°C	ext.	10 x 16
TCAE 068U4346				R410A	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 16
TCAE 068U4341				R410A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4343				R410A	MOP +15°C	N: -40°C...+10°C	ext.	12 x 16
TCAE 068U4347				R410A	MOP 0°C	NM: -40°C...-5°C	ext.	12 x 16

Accesorii

Danfoss orifice Danfoss 068U4100

Danfoss orifice Danfoss 068U4101

Danfoss orifice Danfoss 068U4102
