Danfoss thermostatic valve TUBE 068U1932 (1/4 x 1/2)

Valva termostatica Danfoss TUBE 068U1932

Valve termostatice sudabile Danfoss TUB/TUBE

Ai observat o eroare?

COD PRODUS

TUBE 068U1932

Solicită ofertă PDF

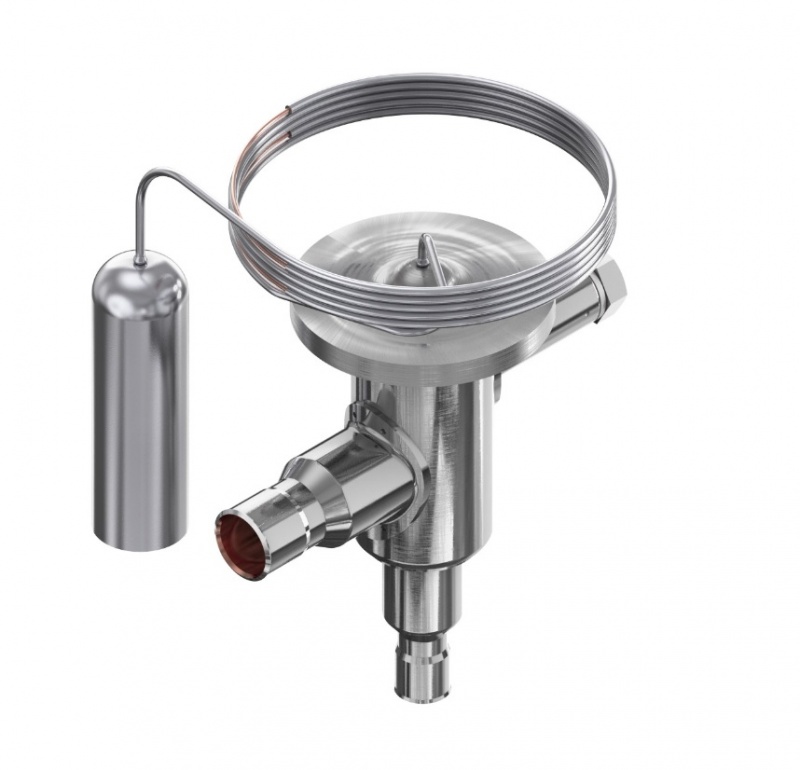

Danfoss thermostatic valve 068U1932, solder connections, 1.4 kW, R407C

Danfoss TUBE 068U1932 - for hermetic cold circuit with thermostatic expansion valve.
Climate expansion valve with 1/4 x 1/2 weldable connections.
Stainless steel thermostatic valve, which makes it also perfect for food refrigeration systems.
Thermostatic valve for R407C.
Nominal capacity: 1.4 kW.
Air conditioner expansion valve also usable for: heat pumps, traditional cold systems, water coolers, ice machines, mobile refrigeration systems.
Expansion valve with right angles in the standard version.
Stable regularization.
Secure and strong connections.
High resistance to corrosion and high pressure.
0.8 m vibration-resistant capillary tube.
Bulb expansion valve Danfoss TUBE 068U1932 with double contact.
Compatibility for climate expansion valve 068U1932: orifice 2.
In standard version, the applicable range is -40ºC ...+10ºC, with MOP.

Specificații

Nominal capacity 1.4 kW
Refrigerant R407C
MOP MOP +15°C
Domain N: -40°C...+10°C
Equalizer ext.
Capillary tube length 0.8 m
Orifice no. 2
Solder connection 1/4 x 1/2

Tabel comparativ

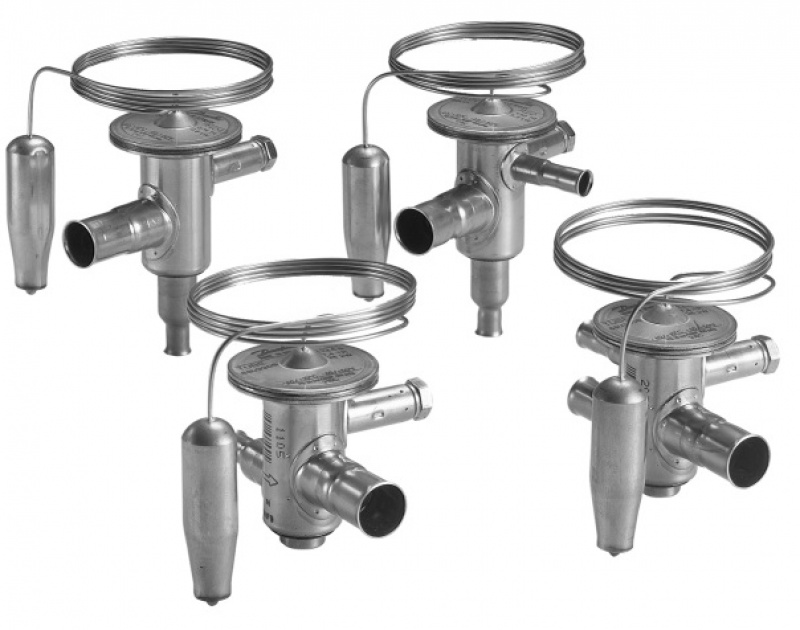

Danfoss thermostatic valves TUB/TUBE
Modele	Connection	Inlet x outlet	Nominal capacity (kW)	Refrigerant	MOP	Domain	Equalizer	Orifice no.	Solder connection
TUB 068U1900			0.63	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	0	6 x 12 mm
TUB 068U1901			0.92	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	1	6 x 12 mm
TUB 068U1902			1.4	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	2	6 x 12 mm
TUB 068U1903			1.9	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	3	6 x 12 mm
TUB 068U1904			2.8	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	4	6 x 12 mm
TUB 068U1905			3.8	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	5	6 x 12 mm
TUB 068U1906			5.7	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6	6 x 12 mm
TUB 068U1907			7.5	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	7	10 x 12 mm
TUB 068U1908			11	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	8	10 x 12 mm
TUB 068U1909			17	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	9	10 x 12 mm
TUBE 068U1910			0.63	R407C	MOP +15°C	N: -40°C...+10°C	ext.	0	6 x 12 mm
TUBE 068U1911			0.92	R407C	MOP +15°C	N: -40°C...+10°C	ext.	1	6 x 12 mm
TUBE 068U1912			1.4	R407C	MOP +15°C	N: -40°C...+10°C	ext.	2	6 x 12 mm
TUBE 068U1913			1.9	R407C	MOP +15°C	N: -40°C...+10°C	ext.	3	6 x 12 mm
TUBE 068U1914			2.8	R407C	MOP +15°C	N: -40°C...+10°C	ext.	4	6 x 12 mm
TUBE 068U1915			3.8	R407C	MOP +15°C	N: -40°C...+10°C	ext.	5	6 x 12 mm
TUBE 068U1916			5.7	R407C	MOP +15°C	N: -40°C...+10°C	ext.	6	6 x 12 mm
TUBE 068U1917			7.5	R407C	MOP +15°C	N: -40°C...+10°C	ext.	7	10 x 12 mm
TUBE 068U1918			11	R407C	MOP +15°C	N: -40°C...+10°C	ext.	8	10 x 12 mm
TUBE 068U1919			17	R407C	MOP +15°C	N: -40°C...+10°C	ext.	9	10 x 12 mm
TUB 068U1920			0.63	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	0	1/4 x 1/2
TUB 068U1921			0.92	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	1	1/4 x 1/2
TUB 068U1922			1.4	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	2	1/4 x 1/2
TUB 068U1923			1.9	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	3	1/4 x 1/2
TUB 068U1924			2.8	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	4	1/4 x 1/2
TUB 068U1925			3.8	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	5	1/4 x 1/2
TUB 068U1926			5.7	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6	1/4 x 1/2
TUB 068U1927			7.5	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	7	1/4 x 1/2
TUB 068U1928			11	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	8	1/4 x 1/2
TUB 068U1929			17	R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	9	1/4 x 1/2
TUBE 068U1930			0.63	R407C	MOP +15°C	N: -40°C...+10°C	ext.	0	1/4 x 1/2
TUBE 068U1931			0.92	R407C	MOP +15°C	N: -40°C...+10°C	ext.	1	1/4 x 1/2
TUBE 068U1932			1.4	R407C	MOP +15°C	N: -40°C...+10°C	ext.	2	1/4 x 1/2
TUBE 068U1933			1.9	R407C	MOP +15°C	N: -40°C...+10°C	ext.	3	1/4 x 1/2
TUBE 068U1934			2.8	R407C	MOP +15°C	N: -40°C...+10°C	ext.	4	1/4 x 1/2
TUBE 068U1935			3.8	R407C	MOP +15°C	N: -40°C...+10°C	ext.	5	1/4 x 1/2
TUBE 068U1936			5.7	R407C	MOP +15°C	N: -40°C...+10°C	ext.	6	1/4 x 1/2
TUBE 068U1937			7.5	R407C	MOP +15°C	N: -40°C...+10°C	ext.	7	3/8 x 1/2
TUBE 068U1938			11	R407C	MOP +15°C	N: -40°C...+10°C	ext.	8	3/8 x 1/2
TUBE 068U1939			17	R407C	MOP +15°C	N: -40°C...+10°C	ext.	9	3/8 x 1/2
TUB 068U1796			0.82	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	0	6 x 12 mm
TUB 068U1940			1.3	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	1	6 x 12 mm
TUB 068U1941			2.1	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	2	6 x 12 mm
TUB 068U1942			2.9	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	3	6 x 12 mm
TUB 068U1943			4.5	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	4	6 x 12 mm
TUB 068U1944			5.2	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	5	6 x 12 mm
TUB 068U1945			9	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6	6 x 12 mm
TUB 068U1946			12	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	7	10 x 12 mm
TUB 068U1947			18	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	8	10 x 12 mm
TUB 068U1948			26	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	9	10 x 12 mm
TUBE 068U1797			0.82	R410A	MOP +15°C	N: -40°C...+10°C	ext.	0	6 x 12 mm
TUBE 068U1949
TUBE 068U1950			2.1	R410A	MOP +15°C	N: -40°C...+10°C	ext.	2	6 x 12 mm
TUBE 068U1951			2.9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	3	6 x 12 mm
TUBE 068U1952			4.5	R410A	MOP +15°C	N: -40°C...+10°C	ext.	4	6 x 12 mm
TUBE 068U1953			5.9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	5	6 x 12 mm
TUBE 068U1954			9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	6	6 x 12 mm
TUBE 068U1955			12	R410A	MOP +15°C	N: -40°C...+10°C	ext.	7	10 x 12 mm
TUBE 068U1956			18	R410A	MOP +15°C	N: -40°C...+10°C	ext.	8	10 x 12 mm
TUBE 068U1957			26	R410A	MOP +15°C	N: -40°C...+10°C	ext.	9	10 x 12 mm
TUB 068U1798			0.82	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	0	1/4 x 1/2
TUB 068U1958			1.3	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	1	1/4 x 1/2
TUB 068U1959			2.1	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	2	1/4 x 1/2
TUB 068U1960			2.9	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	3	1/4 x 1/2
TUB 068U1961			4.5	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	4	1/4 x 1/2
TUB 068U1962			5.2	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	5	1/4 x 1/2
TUB 068U1963			9	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6	1/4 x 1/2
TUB 068U1964			12	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	7	3/8 x 1/2
TUB 068U1965			18	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	8	3/8 x 1/2
TUB 068U1966			26	R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	9	3/8 x 1/2
TUBE 068U1799			0.82	R410A	MOP +15°C	N: -40°C...+10°C	ext.	0	1/4 x 1/2
TUBE 068U1967			1.3	R410A	MOP +15°C	N: -40°C...+10°C	ext.	1	1/4 x 1/2
TUBE 068U1968			2.1	R410A	MOP +15°C	N: -40°C...+10°C	ext.	2	1/4 x 1/2
TUBE 068U1969			2.9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	3	1/4 x 1/2
TUBE 068U1970			4.5	R410A	MOP +15°C	N: -40°C...+10°C	ext.	4	1/4 x 1/2
TUBE 068U1971			5.9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	5	1/4 x 1/2
TUBE 068U1972			9	R410A	MOP +15°C	N: -40°C...+10°C	ext.	6	1/4 x 1/2
TUBE 068U1973			12	R410A	MOP +15°C	N: -40°C...+10°C	ext.	7	3/8 x 1/2
TUBE 068U1974			18	R410A	MOP +15°C	N: -40°C...+10°C	ext.	8	3/8 x 1/2
TUBE 068U1975			26	R410A	MOP +15°C	N: -40°C...+10°C	ext.	9	3/8 x 1/2
