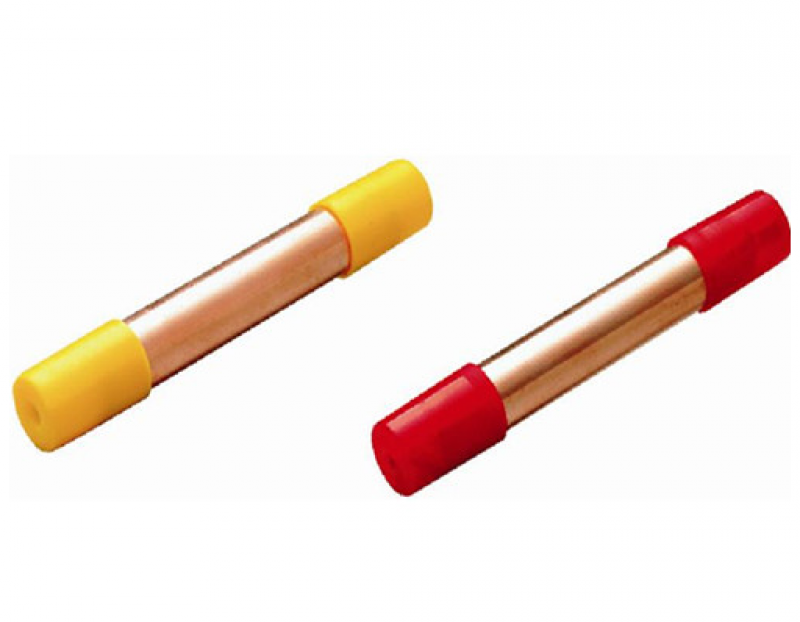

| DE.NA filter driers for household | ||||||
|---|---|---|---|---|---|---|
| Modele | Equal connection (mm) (mm) | Equal connections (") (") | Filter type | Inlet x out. connections | Connexions no. | Weight in grams (gr) |
| mm | ||||||
| 8 gr. 5-2.5 mm | sudabil (solder) | 5 x 2,5 | 2 | 8 | ||
| 10 gr. 5-2.7 mm | sudabil (solder) sudabil (solder) | 5 x 2,7 | 2 | 10 | ||
| 15 gr. 6-2.7 mm | sudabil (solder) | 6 x 2,7 | 2 | 15 | ||
| 20 gr. 6-2.7 mm | sudabil (solder) | 6 x 2,7 | 2 | 20 | ||
| 30 gr. 6-6 mm | sudabil (solder) | 6 x 6 | 2 | 30 | ||
| 30 gr. 6-2.7 mm | sudabil (solder) | 6 x 2.7 | 2 | 30 | ||
| 50 gr. 6-6 mm | sudabil (solder) | 6 x 6 | 2 | 50 | ||
| 10 gr. 6-6-2.5 mm | sudabil (solder) | 6 x 6 x 2.5 | 3 | 10 | ||
| 15 gr. 6-6-2.5 mm | sudabil (solder) | 6 x 6 x 2.5 | 3 | 15 | ||
| 20 gr. 6-6-2.5 mm | sudabil (solder) | 6 x 6 x 2.5 | 3 | 20 | ||
| 30 gr. 6-6-6 mm | sudabil (solder) | 6 x 6 x 6 | 3 | 30 | ||
| 40 gr. 6-2.7 mm | sudabil (solder) | 6 x 2.7 | 2 | 40 | ||
| 40 gr. 6-6 mm | 6 | - | sudabil (solder) | 6 x 6 | 2 | 40 |
| 50 gr. 6-6-6 mm | sudabil (solder) | 6 x 6 x 6 | 3 | 50 | ||
