Eco Luvata cubic evaporator GCE 253G6 ED (MHBP)

Solicită ofertă PDF

Evaporator with defrost (ED) for refrigeration, 3.45 kW, blade pitch 6 mm, 3 fans 250 mm

Medium and positive temperature vaporizer with super-extended thermal range (≥ -15 °C).
Built-in electrical resistance (ED).
Compact dimensions to save useful space.

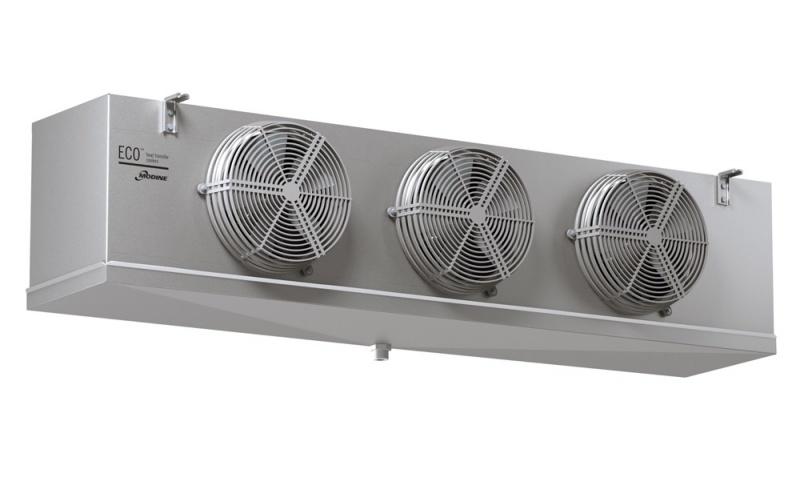

Evaporator Eco Luvata GCE range equipped with 3 fans of 250 mm diameter.
230V power supply.
Cooling capacity of 4.18 kW (dT=10K) with air jet length of 12 m.
The standard electric defrost or defrost cable (ED) of the blower is equipped with stainless steel heater with vulcanized terminal pre-set for connection 230V/1/50-60Hz (Ø 250 mm).
Next to the GCE range of evaporators, the electrical parts and the housing are connected to an earth terminal, the wiring of motors and heaters is carried out in separate junction boxes with IP 54 degree of protection.

GCE evaporators for high temperatures (MHBP)
Modele	Nominal capacity (kW)	Fan no.	Electrical defrost*	Air flow of evaporator (m³/h)	Air throw (m)	Evaporator dimensions (mm)
Modele	Nominal capacity (kW)	Fan no.	Electrical defrost*	Air flow of evaporator (m³/h)	Air throw (m)	A	B	C
GCE 251E6 ED	1.44	1	inclusă (included)	813	9	774	480	387
GCE 252G6 ED	2.28	2	inclusă (included)	1695	10	1224	930	387
GCE 252E6 ED	2.81	2	inclusă (included)	1626	9	1224	930	387
GCE 253G6 ED	3.45	3	inclusă (included)	2540	12	1674	1380	387
GCE 253E6 ED	4.18	3	inclusă (included)	2430	11	1674	1380	387
GCE 254E6 ED	5.61	4	inclusă (included)	3250	13	2124	1830	387
