Eco Luvata EVS 391 B ED ECO evaporator

Vaporizator Eco Luvata EVS 391 B ED ECOSchemă generală vaporizatoare Eco Luvata EVSElemente Eco Luvata EVS
nou
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

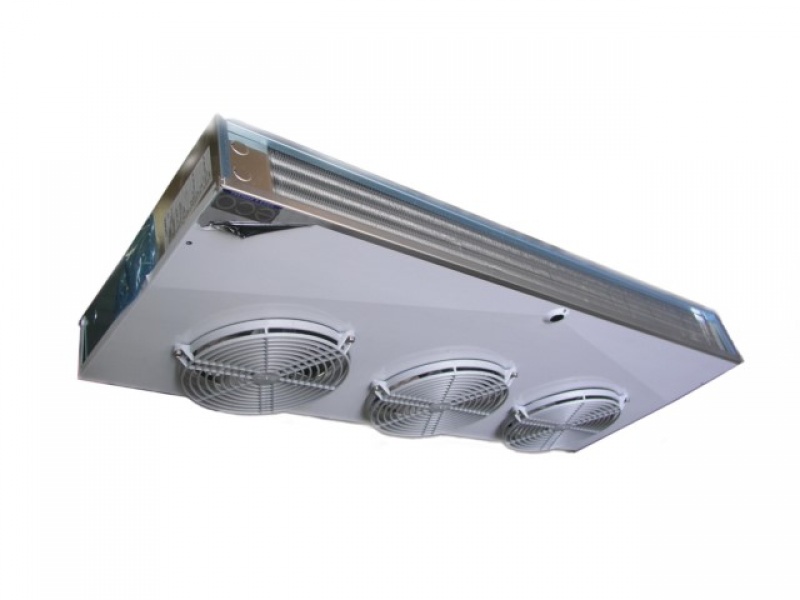

Slim ceiling type evaporator for low temperatures, EVS/B (B ED) range, with 3 X 200 mm fan, 2.46 kW

  • Ceiling evaporator, slim type, for cold rooms with negative temperatures (≥-25°C).

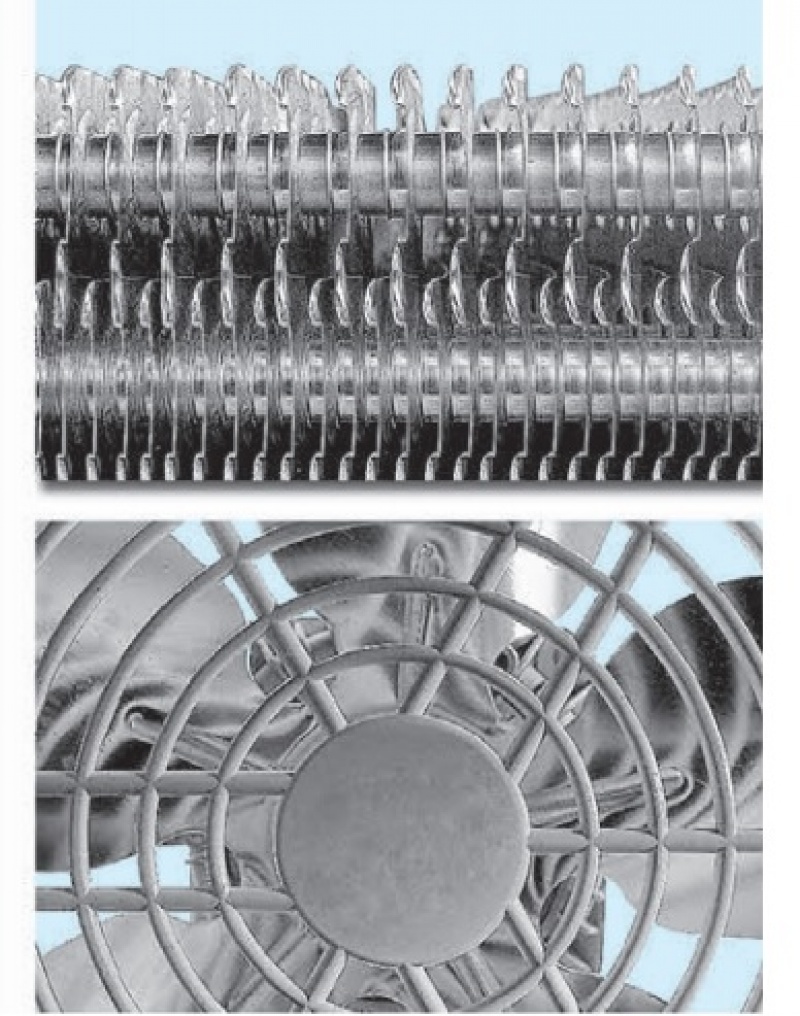

  • Narrow cooler unit ECO Luvata, series EVS/B (B ED) intended for freezing, with dual blades of 4.5/9 mm.
  • Stainless steel casing and pipe system also adaptable to new types of refrigerants.
  • Electric resistance included (electrical defrost - ED).
  • Air cooler with internal condensation tray and junction box (IP 54).
  • Evaporator with single-phase supply (230V).

Specificații

  • Nominal capacity 2.46 kW
  • Fan no. 3
  • Electrical defrost* inclusă (included)
  • Air flow of evaporator 1050 m³/h
  • Air throw 4.5 m
  • Weight 17.0 kg

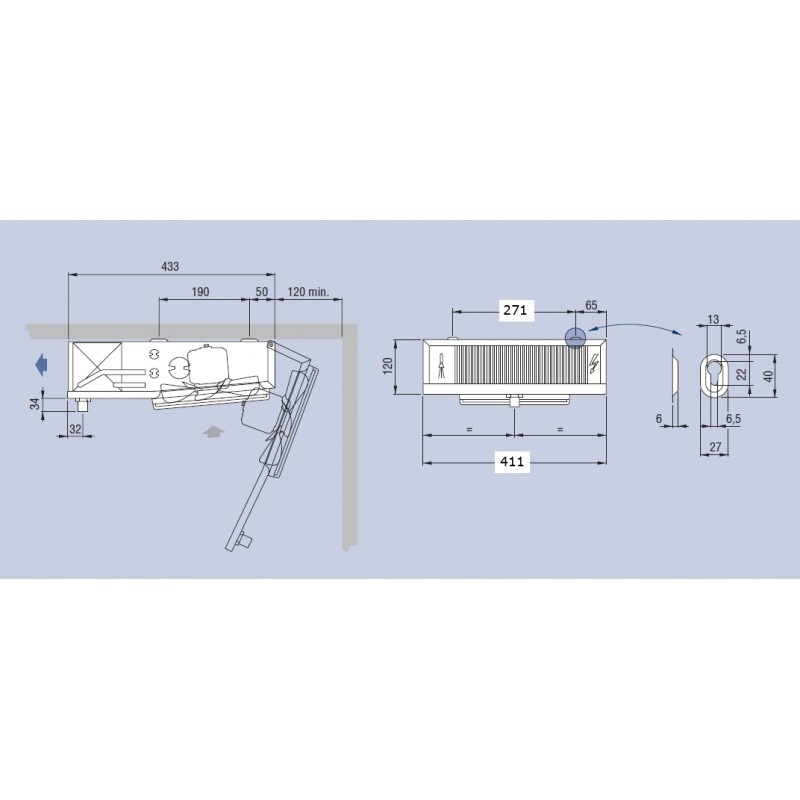

  • Evaporator dimensions
    • A : 1111 mm
    • B : 971 mm
    • C : 170 mm
  • Connections
    • ref. (discharge) : 16
    • asp. (suction) : 12.7
  • Drain connection 1/2 "

Tabel comparativ

EVS slim ceiling evaporators (LBP)
Modele Nominal capacity (kW)Fan no.Electrical defrost*Air flow of evaporator (m³/h)Air throw (m)Evaporator dimensions (mm)
ABC
EVS 61 B ED ECO0.471inclusă (included)2802.5411271120
EVS 101 B ED ECO0.722inclusă (included)6205.0611471120
EVS 131 B ED ECO0.892inclusă (included)5604.5611471120
EVS 271 B ED ECO1.702inclusă (included)7404.5861721170
EVS 181 B ED ECO1.453inclusă (included)9304.51111971120
EVS 291 B ED ECO1.773inclusă (included)8304.01111971120
EVS 391 B ED ECO2.463inclusă (included)10504.51111971170
EVS 521 B ED ECO3.224inclusă (included)14004.514611321170
