ESK oil separator OS-80FH
ESK Schultze oil separator dedicated to protect condensing units
- ESK oil separator is strongly recommended when projecting cost, efficient refrigeration as well as safeguarding against compressor damage.
- The oil separator effectively removes oil from discharge gas in the strainer elements returns the oil through a high precision float valve to the crankcase or oil control system.The efficiency of oil recovery is dependent
on the reduction of gas velocity in the separator itself.
- ESK Oil separators are suitable for use with HFC- and HCFC-refrigerants: (R134a, R404A, R507, R407A, R407C, R22 etc.).
- See more info about utility: Compresorul stricat? Indiciile urmărite de profesioniști
- Capacity 18,9 l
- cu flanșă (flanged)
- Separator's connection

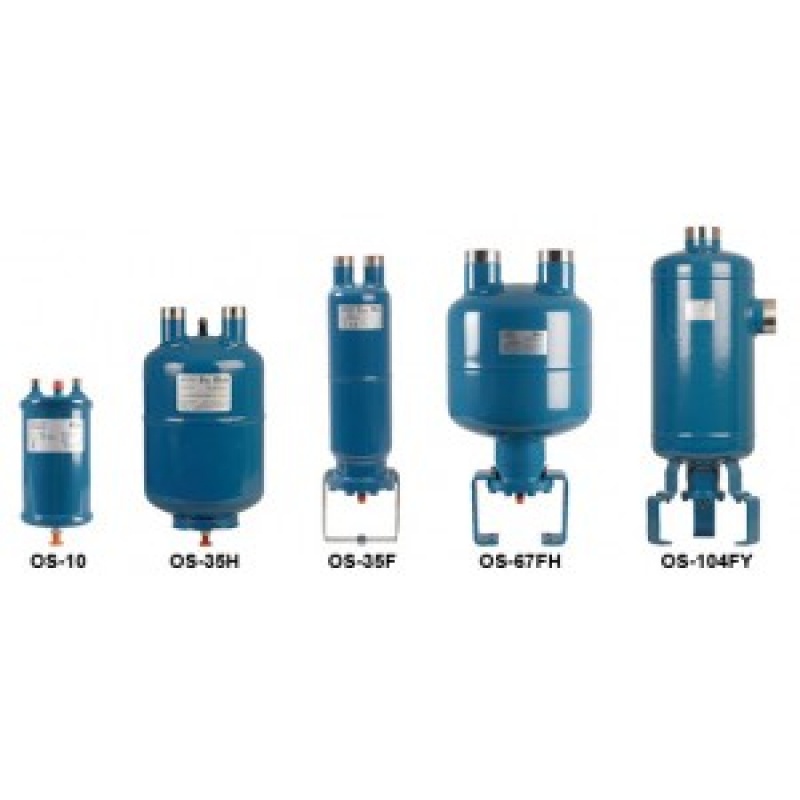

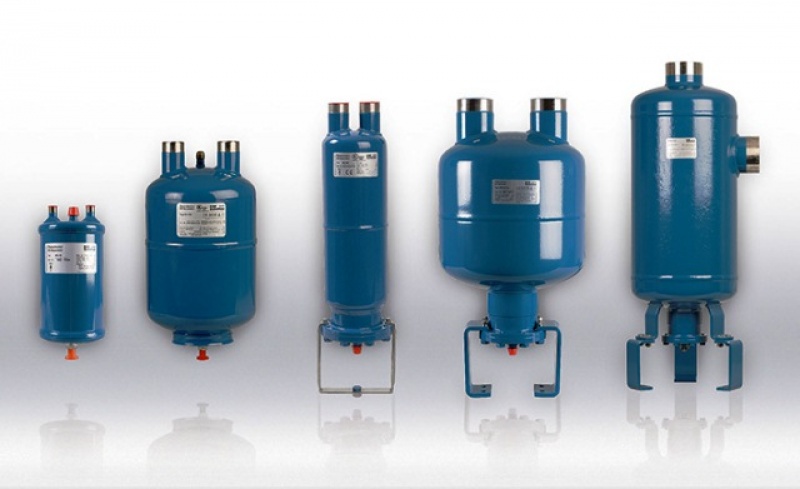

| ESK oil separators |
| Modele |
Capacity (l) | | Separator's connection |
| mm | inch |
| OS-16 | 2,3 | ermetic (hermetic) | 16 | 5/8 |
| OS-22 | 3,5 | ermetic (hermetic) | 22 | 7/8 |
| OS-28H | 7,1 | ermetic (hermetic) | 28 | 1 1/8 |
| OS-35H | 7,1 | ermetic (hermetic) | 35 | 1 3/8 |
| OS-42H | 7,1 | ermetic (hermetic) | 42 | 1 5/8 |
| OS-54H | 7,1 | ermetic (hermetic) | 54 | 2 1/8 |
| OS-28F | 3,7 | cu flanșă (flanged) | 28 | 1 1/8 |
| OS-42F | 3,7 | cu flanșă (flanged) | 42 | 1 5/8 |
| OS-42FL | 7,5 | cu flanșă (flanged) | 42 | 1 5/8 |
| OS-42FH | 11,5 | cu flanșă (flanged) | 42 | 1 5/8 |
| OS-54FH | 11,5 | cu flanșă (flanged) | 54 | 2 1/8 |
| OS-42FY | 18,9 | cu flanșă (flanged) | 42 | 1 5/8 |
| OS-54FY | 18,9 | cu flanșă (flanged) | 54 | 2 1/8 |
| OS-67/64FH | 18,9 | cu flanșă (flanged) | 64 | 2 1/2 |
| OS-80FH | 18,9 | cu flanșă (flanged) | 80 | 3 1/8 |
| OS-80/54FS | 21,0 | cu flanșă (flanged) | 54 | 2 1/8 |
| OS-80/67FS | 21,0 | cu flanșă (flanged) | 67 | 2 5/8 |
| OS-80FS | 21,0 | cu flanșă (flanged) | 80 | 3 1/8 |
| OS-80/54FX | 32,0 | cu flanșă (flanged) | 54 | 2 1/8 |
| OS-80/67FX | 32,0 | cu flanșă (flanged) | 67 | 2 5/8 |
