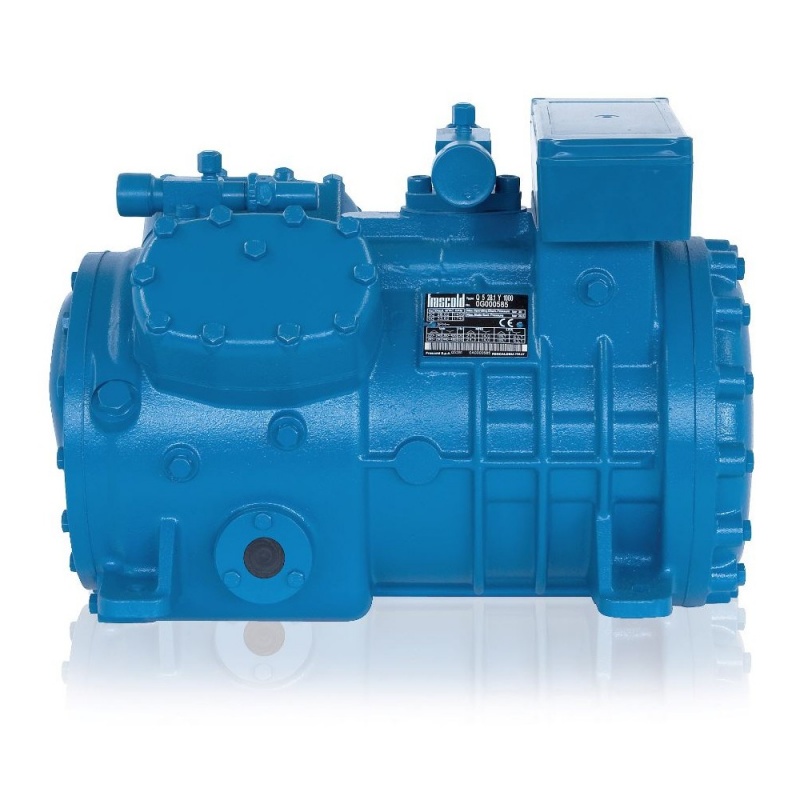

Frascold semi-hermetic compressor S8-42Y

Frascold S8-42Y semi-hermetic compressor for low temperatures (LBP), 41.3 m³/h, 8 HP, 4 cylinders, 380V, R134a/R404A/R507A/R448A/R449A/R407F/R407A

• Frascold S8-42Y three-phase semi-hermetic compressor for negative temperatures.
• Engine version 2: negative temperature applications.
• Refrigerating capacities at -30ºC (40ºC cond. temp.): 4430W (R134a), 8521W (R449A), 8741W (R448A), 9276W (R404A).
• Sweep volume of 41.3 m³/h, 8 horsepower.
• Number of cylinders included: 4 cylinders.
• Electrical terminal box and protection class IP56 included.
• 2 POE32 oil sight glasses included.
• Built-in diagnostic technology that allows the Frascold S8-42Y reciprocating compressor to monitor system conditions and shut down the semi-hermetic compressor in the event of incorrect operating parameters.
• Perfect mechanical balance for reduced vibration.
• Compact dimensions.
• Outstanding reliability in critical operating conditions.
• Quick problem identification, reduced compressor repair times and costs.
• Made in the EU.
