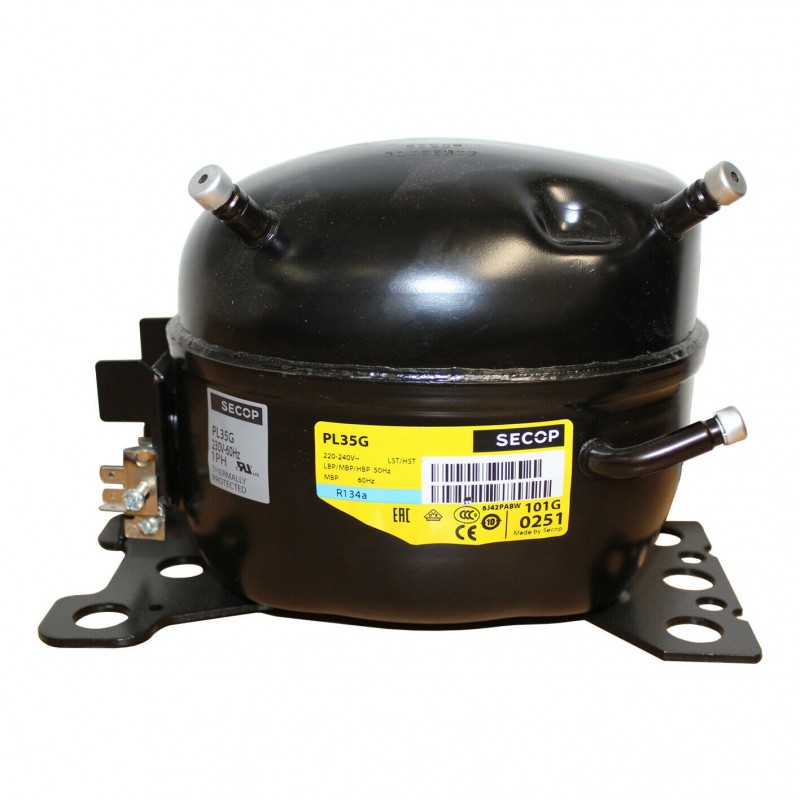

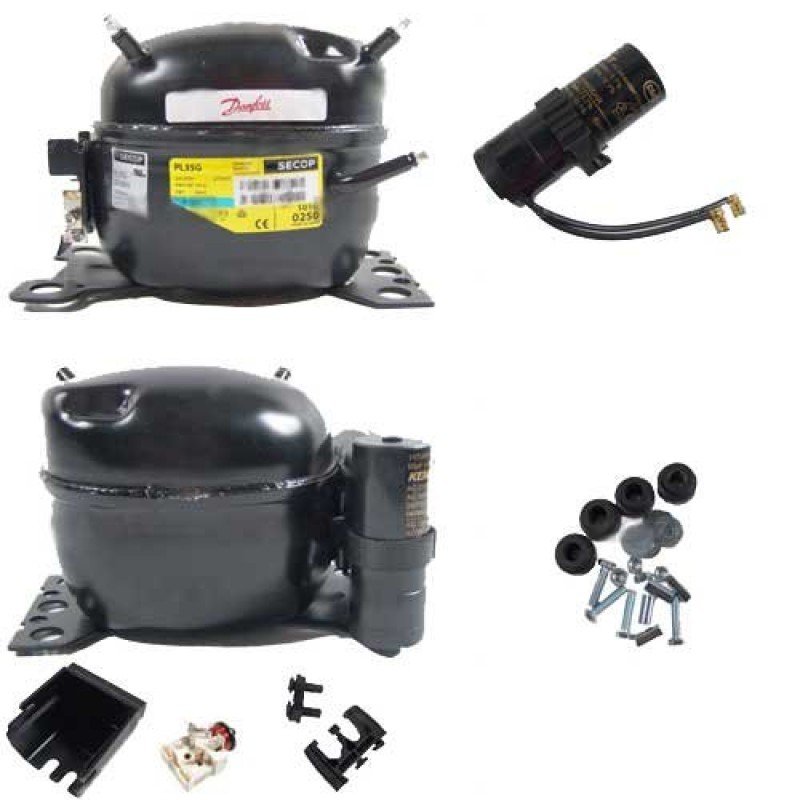

Hermetic compressor Danfoss PL 35GX (R134a)

Compresor frigorific Danfoss PL 35GX (R134a)Danfoss backDanfoss PL35GDanfoss PL35G.
qr Ai observat o eroare?

COD DTN

  • 101.18.1000

COD PRODUS

Solicită ofertă PDF

Danfoss PL35GX single-phase motor, low and high temp. (LBP/MBP/HBP), 2.0 cm³, R134a

  • Danfoss-Secop hermetic compressor for domestic and light commercial use - negative temperatures.
  • Extended operating range: -25ºC ... +15ºC.
  • Cooling capacity of 28 W at -25ºC, 69 W at -10ºC.
  • Durable sealing and reliability in case of unstable power supply.
  • Danfoss PL35GX (PL35G) professional compressor with optimized motor technology.
  • Low energy consumption.
  • Compressor refrigerator / freezer / aggregate on-off with compact design.
  • Height: 137 mm.
  • Silent Danfoss compressor with easy installation.
  • Compressor 220-230V with 2.0 cm³ displacement.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP, MBP, HBP
  • Refrigerant R134a
  • Displacement 2.00 cm³
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -35°C : - W
    • -30°C : - W
    • -25°C : 28 W
    • -20°C : 39.3 W
    • -15°C : 53 W
    • -10°C : 69.4 W
    • -5°C : 89 W
    • 0°C : 112 W
    • 5°C : 140 W
    • 10°C : 172 W
    • 15°C : 209 W
    • 20°C : - W
  • Max. height 137 mm

Tabel comparativ

Danfoss LBP/MBP/HBP (R134a)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)Max. height (mm)
-35°C-30°C-25°C-20°C-15°C-10°C-5°C0°C5°C10°C15°C20°C
BD35F12-24/75/1LBP
MBP
HBP		2.0-18.829.941.955.471.189.8112139---96
PL35GX220-240/50/1LBP
MBP
HBP		2.00--2839.35369.489112140172209-137
TL3GX220-240/50/1LBP
MBP
HBP		3.13-25.340.959.180.5106136170211258312-163
TL4GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		3.86-40.858.380.3107140180226280342413-173
TL5GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		5.08-55.679107139178224278341414497-173
FR6GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		6,23-47,783,3124171226290365452552--196
FR7.5GX220-240/50/1LBP
MBP
HBP		6.93-61.799142193254325408505618--196
FR8.5GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		7.95-84.9123171228298381478592722--196
FR10GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		9.05-91.9136188250324412516638779--196
FR11GX220-240/50/1LBP
MBP		11.15-115170233307395501628780---196
SC10GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		10.1923601131832683694866187649251100-199
SC12GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		12.8764.611317525234846460376896011821437-209
SC15GX220-240/50/1
220-240/60/1		LBP
MBP
HBP		15.28--164290424568728908111013401600-209
SC18GX220-240/50/1
220-240/60/1		MBP
HBP		17.69--2833945266848701087133716241950-219
SC21GX220-240/50/1
220-240/60/1		MBP
HBP		20.95--33345360679210121268156018892257-219
SC12/12GX220-240/50/1LBP
MBP
HBP		2 x 12.8712922635050569692812061535192023642875-249
SC15/15GX220-240/50/1MBP
HBP		2 x 15.28--328581847113714571815222026793201-249
SC18/18GX220-240/50/1LBP
MBP
HBP		2 x 17.69--5667881052136817402174267432483900-259
SC21/21GX220-240/50/1LBP
MBP
HBP		2 x 20,95--6679071212158420252536312037784511-259
