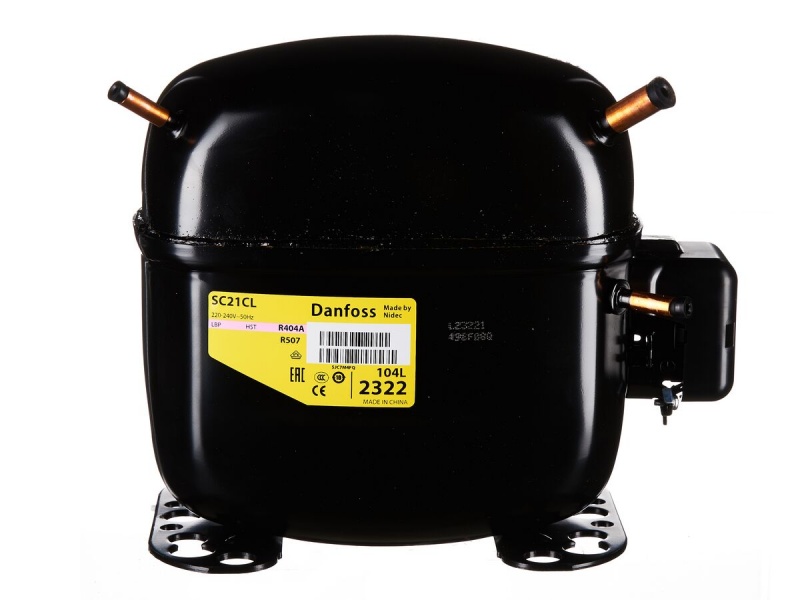

Hermetic compressor Danfoss SC 21CLX (R404A)

Motor monofazat Danfoss SC21CLCompresor frigorific Danfoss SC 21CLX (R404A)
qr Ai observat o eroare?

COD DTN

  • 101.18.1255

COD PRODUS

Solicită ofertă PDF

Danfoss SC21CLX single-phase motor, freezer (LBP), 20.95 cm³, 617 W, R404A

  • Danfoss-Secop hermetic compressor for domestic and light commercial use - negative temperatures.
  • Extended operating range: -45ºC ... -10ºC.
  • Refrigeration capacity of 617 W at -30ºC.
  • Durable sealing and reliability in case of unstable power supply.
  • Professional compressor Danfoss SC18CLX (SC18CL) with optimized motor technology.
  • Low energy consumption.
  • Freezer compressor or on-off refrigerating aggregate with compact design, R404A.
  • Height: 219 mm.
  • Silent Danfoss compressor with easy installation.
  • 220-230V compressor with 20.95 cm³ displacement.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP
  • Refrigerant R404A
  • Displacement 20.95 cm³
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -45°C : 226 W
    • -40°C : 325 W
    • -35°C : 455 W
    • -30°C : 617 W
    • -25°C : 813 W
    • -20°C : 1042 W
    • -15°C : 1306 W
    • -10°C : 1606 W
    • -5°C : - W
    • 0°C : - W
    • 5°C : - W
  • Max. height 219 mm

Tabel comparativ

Danfoss LBP (R404A)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)Max. height (mm)
-45°C-40°C-35°C-30°C-25°C-20°C-15°C-10°C-5°C0°C5°C
TL4.5CLX220-240/50/1LBP4.63-80106139181197232294366--173
FR6CLX220-240/50/1LBP6.2377108145189243307383473578--196
FR8.5CLX220-240/50/1LBP7.9599126168222290372468577---196
NL7CLX220-240/50/1LBP7.27102146199263340430536657796--203
SC10CLX220-240/50/1
220-240/60/1		LBP10.29--16625536048362578997711901430209
SC12CLX220-240/50/1LBP12.875814023735349065083510481291--219
SC15CLX220-240/50/1LBP15.28--16625536048362578997711901430209
SC18CLX220-240/50/1LBP17.69167271395542715918115414251735--219
SC21CLX220-240/50/1LBP20.95226325455617813104213061606---219
GS26CLX220-240/50/1LBP26.303254977039491240158019742427---259
GS34CLX220-240/50/1LBP33.80-72198612971663209225773120---259
