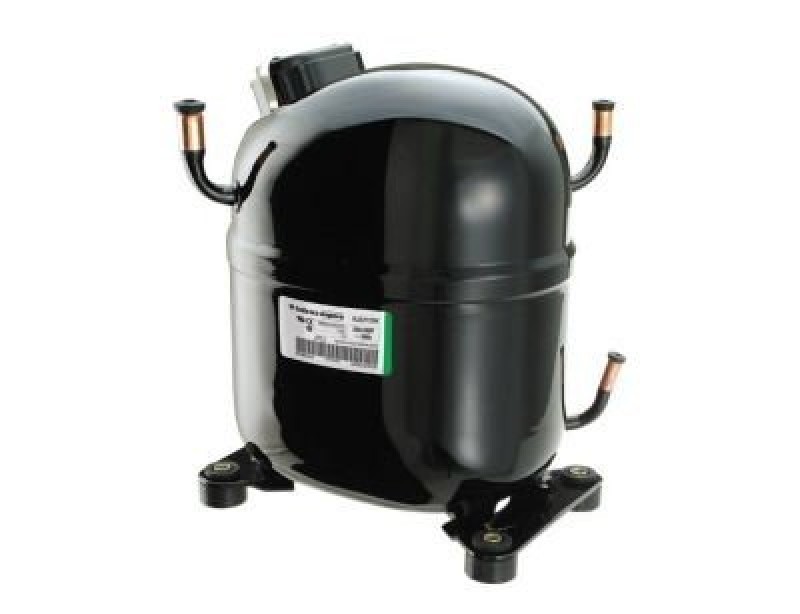

Hermetic compressor Embraco NJ 6226Z

Embraco
qr Did you notice an error?

DTN CODE

  • 101.25.2595

PRODUCT CODE

Offer request PDF

Embraco Aspera NJ6226Z single phase motor, positive temperatures (HBP), 34.4 cm3, R134a

  • Aspera refrigeration compressor for positive temperatures: 1497W at -10ºC.
  • Single-phase engine with a swept volume of 34.4 cm³ displacement.
  • This professional compressor made in Europe stands out for its high energy efficiency, increased reliability and remarkable quietness.
  • NJ6226Z is a small hermetic compressor functional on R134a, which can be successfully used to be refrigerated display case compressor and aggregate refrigerated chamber compressor.
  • Compared to other piston compressors on the market, Embraco Aspera technology stands out in that, during operation, energy consumption varies and adapts, leading to a reduction of even 40%.

Specifications

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application HBP
  • Refrigerant R134a
  • Displacement 34.4 cm³
  • Weight 20.1 kg
  • Height 253 mm
  • Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C)
    • -15°C : 1144 W
    • -10°C : 1497 W
    • -5°C : 1892 W
    • 0°C : 2340 W
    • +5°C : 2852 W
    • +10°C : 3438 W
  • Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C)
    • -15°C : - W
    • -10°C : 1182 W
    • -5°C : 1531 W
    • 0°C : 1923 W
    • +5°C : 2371 W
    • +10°C : 2886 W
  • Capacity (rated point ASHRAE +5°C) 2610 W
  • Electrical capacity (rated point +7,2°C) 1232 W
  • Current (+7,2°C point of reference) 6,0 A

Comparative table

Embraco HBP (R134a)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Weight (kg)Height (mm)Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C) (W)Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C) (W)Capacity (rated point ASHRAE +5°C) (W)Electrical capacity (rated point +7,2°C) (W)Current (+7,2°C point of reference) (A)
-15°C-10°C-5°C0°C+5°C+10°C-15°C-10°C-5°C0°C+5°C+10°C
EMT37HDP220-240/50/1HBP3.47.2158142181228245343412-1531942412943553211370,8
EMT45HDR220-240/50/1HBP4.07.7166146184229284402423-1501892372983613791580,95
EMT50HDP220-240/50/1HBP4.57.7166191242303374456549-2032563183884724231841,05
EMT6144Z220-240/50/1HBP5.27.7166232294367395549661-2503133884745735192221,38
EMT6160Z220-240/50/1HBP7.37.8166281355448481687834-2963764725867166633001,74
NEK6160Z220-240/50/1HBP7.37.8166281355448481687834-2963764725867166633001,74
EMT6170Z220-240/50/1HBP7.697.8166330418522559771915-3584485506637897253562,03
NEK6170Z220-240/50/1HBP8.410.4187335420526573802971-3584515636938417753472,1
NEK6187Z220-240/50/1HBP10.0112003784776006549181113-4025116427939658964102,61
NEK6210Z220-240/50/1HBP12.11120045657872678710971319-480619773942112710464972,86
NEU6210Z220-240/50/1HBP12,110,620048361878096911861431-530672839103212501109--
NEK6212Z220-240/50/1HBP14.311.620652166283089812491498-5657128821076129112066023,53
NEU6212Z220-240/50/1HBP14.311.6200556706892111113651653-5957679651188143712716023,53
NEK6214Z220-240/50/1HBP16.811.6206593752945102614121701-64081410081215147313157754,75
NEU6214Z220-240/50/1HBP16.811.62066638441063132016151914--9271150140716991492--
NT6215Z220-240/50/1HBP17.4162076217961014109015671894-64684310711326160614357074,4
NT6217Z220-240/50/1HBP20.416.52207129211171147118272250-77298012321532189016808064,73
NT6220Z220-240/50/1LBP26,117,222083011141425178121992696-87611471456182122591752--
NJ6220Z220-240/50/1HBP26.120.326583011141425178121992696-876114714561821225920719785,7
NJ6226Z220-240/50/1HBP34.420.1253114414971892234028523438-11821531192323712886261012326,0
NJ6220ZX380-400/50/3HBP26.119.626588211591502172323892932-993132616932096253422408751,6
NJ6226ZX380-400/50/3HBP34.420.2265130416442044203930273608-12141589200424572950274011902,3
