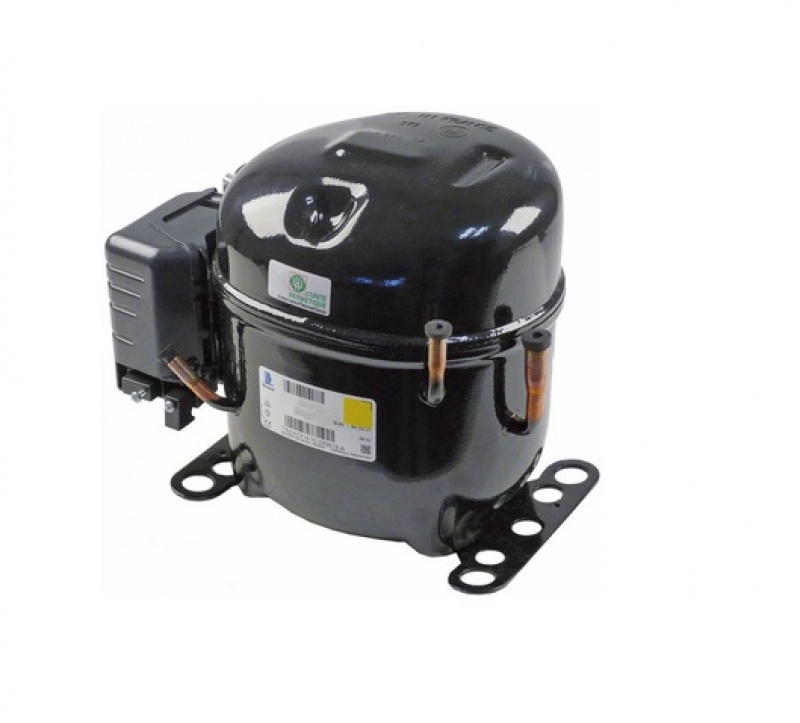

Hermetic compressor Tecumseh AE4440U (R290)
Single-phase motor Tecumseh L'Unite AE4440U-FZ1A, refrigeration (HBP), 8.02 cmc, 525 W, R290
- Refrigeration compressor, 525 W at -10°C, 8.02 cm³ displacement, positive temperatures (HBP).
- Thanks to the natural refrigerant (propane), the energy consumption of the refrigeration system will be reduced, as will the charging requirement of the refrigerant system.
- High energy efficiency.
- Professional piston compressor AE4440U that stands out in the Tecumseh range for its compact size, easy installation, quietness.
- Tecumseh engine now also supplied to installers in Romania, intended for domestic and commercial refrigeration.
- Motor type: CSIR (Capacitor Start-Induction Run), with start capacitor; auxiliary winding disconnected after start up. Efficiency according to standards.
- Single-phase piston compressor, 230V.

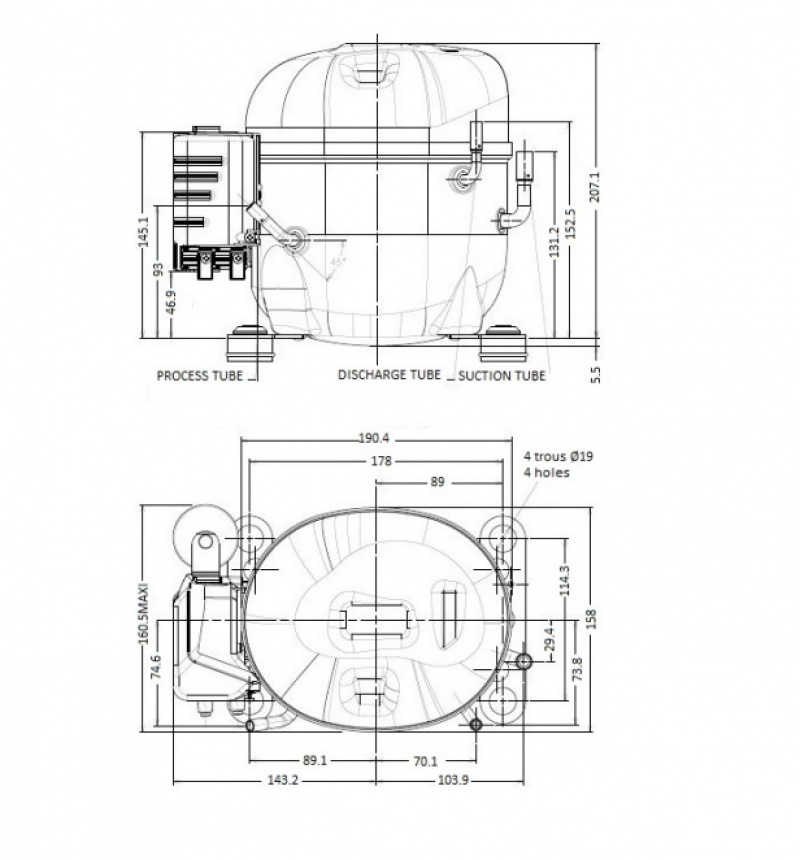

- Maximum height Tecumseh cold compressor: 210 mm.
- Net weight: 10.2 kg.
- Power supply 220-240/50/1 V/Hz/Ph
- Application HBP
- Refrigerant R290
- Displacement 8.02 cm³
- Oil volume 280 cm³
- Connection (suction) 3/8 "
- Connection (discharge) 1/4 "
- Maximum current A
- Cooling capacity (W)/Evaporating temp. (°C)
- -15°C : 416 W
- -10°C : 525 W
- -5°C : 654 W
- 0°C : 807 W
- 5°C : 986 W
- +10°C : 1196 W
- +15°C : 1441 W
| L'Unite HBP (R290) |
| Modele |
Power supply (V/Hz/Ph) | Application | Displacement (cm³) | Cooling capacity (W)/Evaporating temp. (°C) (W) |
| -15°C | -10°C | -5°C | 0°C | 5°C | +10°C | +15°C |
| AE4425U | 220-240/50/1 | HBP | 5.02 | 257 | 331 | 418 | 520 | 639 | 777 | 938 |
| AE4430U | 220-240/50/1 | HBP | 6.12 | 308 | 397 | 501 | 622 | 763 | 926 | 1116 |
| AE4440U | 220-240/50/1 | HBP | 8.02 | 416 | 525 | 654 | 807 | 986 | 1196 | 1441 |
| AE4450U | 220-240/50/1 | HBP | 10.33 | 565 | 709 | 879 | 1080 | 1316 | 1593 | 1916 |
| AE4460U | 220-240/50/1 | HBP | 12.01 | 592 | 765 | 968 | 1207 | 1488 | 1816 | 2197 |
| CAJ4513U | 220-240/50/1 | HBP | 25.95 | 1181 | 1543 | 1984 | 2516 | 3151 | 3904 | 4787 |
| CAJ4518U | 220-240/50/1 | HBP | 34.45 | 1604 | 2128 | 2738 | 3449 | 4275 | 5234 | 6343 |
