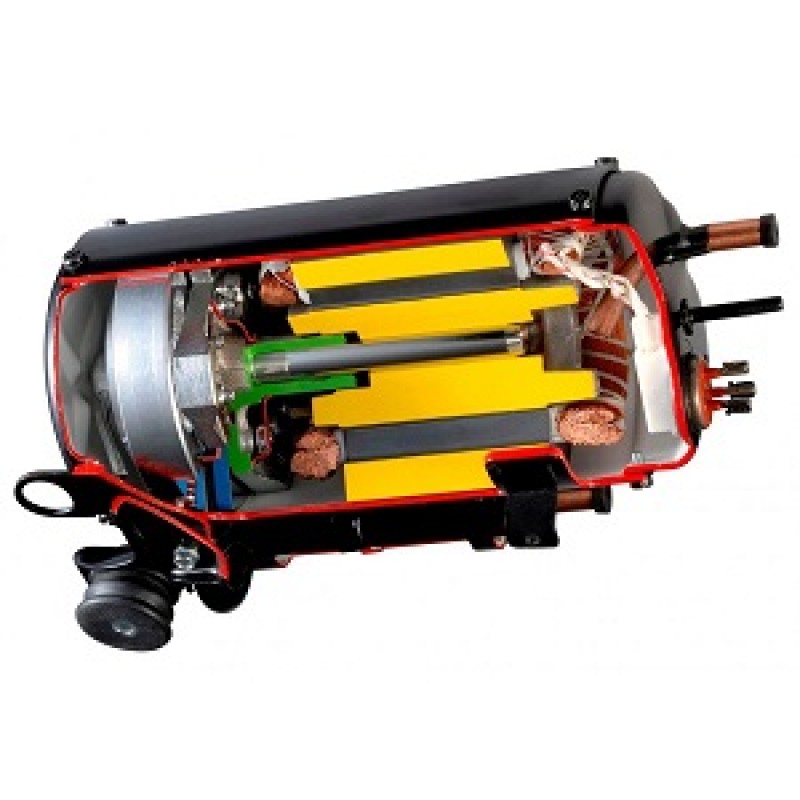

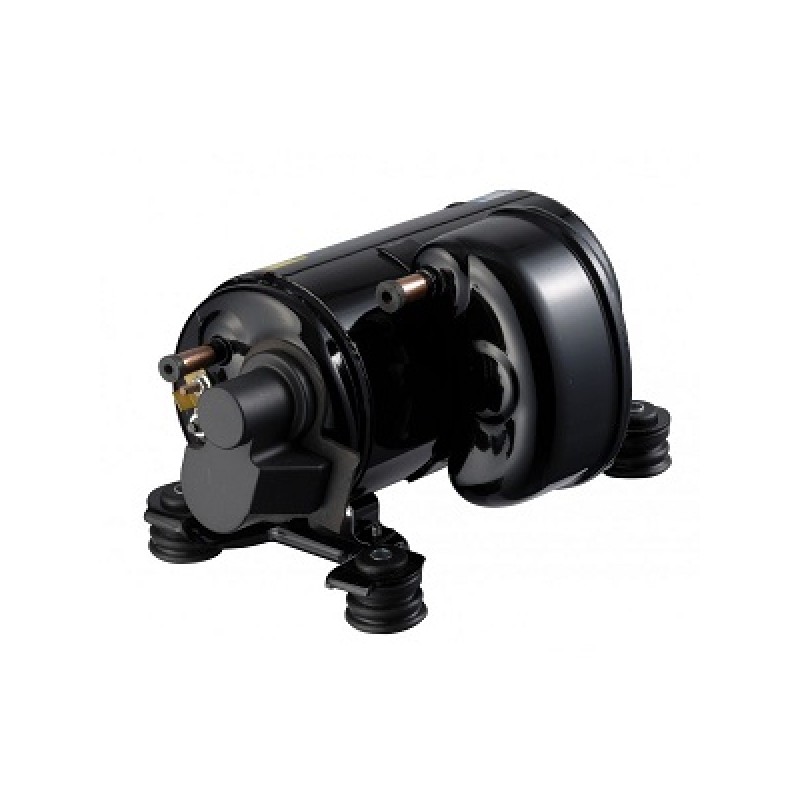

Hermetic compressor Tecumseh HGA 4460Y
Tecumseh L'Unite HGA4460Y, HBP, R134a
- Applications for commercial refrigeration - high temperatures.
- Single-phase electric power.
- Power supply 220-240/50/1 V/Hz/Ph
- Application HBP
- Refrigerant R134a
- Displacement 12,8 cm³
- Oil volume 290 cm³
- Connection (suction) 1/2 "
- Connection (discharge) 5/16 "
- Maximum current 4,3 A
- Cooling capacity (W)/Evaporating temp. (°C)
- -15°C : 562 W
- -10°C : 705 W
- -5°C : 877 W
- 0°C : 1084 W
- +7,2°C : 1455 W
- +10°C : 1625 W
- +15°C : 1969 W
| L'Unite HBP (R134a) |
| Modele |
Power supply (V/Hz/Ph) | Application | Displacement (cm³) | Cooling capacity (W)/Evaporating temp. (°C) (W) |
| -15°C | -10°C | -5°C | 0°C | +7,2°C | +10°C | +15°C |
| THB4413Y | 220-240/50/1 | HBP | 3.6 | 136 | 169 | 211 | 262 | 347 | 385 | 456 |
| THB4415Y | 220-240/50/1 | HBP | 4.23 | 161 | 198 | 245 | 302 | 400 | 443 | 524 |
| THB4419Y | 220-240/50/1 | HBP | 5.0 | 194 | 241 | 299 | 368 | 484 | 534 | 629 |
| THB4422Y | 220-240/50/1 | HBP | 5.9 | 253 | 308 | 375 | 454 | 586 | 643 | 750 |
| AEZ4425Y | 220-240/50/1 | HBP | 7.6 | 241 | 323 | 417 | 524 | 698 | 770 | 907 |
| AE 4430Y-FZ1A | 220-240/50/1 | HBP | 8.0 | 318 | 412 | 526 | 659 | 816 | 998 | 1207 |
| AEZ3430Y | 220-240/50/1 | HBP | 8.8 | 319 | 407 | 516 | 643 | 854 | 945 | 1117 |
| AEZ4430Y | 220-240/50/1 | HBP | 8.8 | 319 | 407 | 516 | 643 | 854 | 945 | 1117 |
| AE 4440Y-FZ1A | 220-240/50/1 | HBP | 10.33 | 429 | 545 | 684 | 847 | 1038 | 1260 | 1517 |
| CAE4440Y | 220-240/50/1 | HBP | 12.0 | 403 | 524 | 670 | 842 | 1127 | 1249 | 1481 |
| AE4450Y | 220-240/50/1 | HBP | 13.24 | 569 | 725 | 907 | 1119 | 1507 | 1650 | 1976 |
| CAE4456Y | 220-240/50/1 | HBP | 16.0 | 596 | 750 | 940 | 1162 | 1534 | 1694 | 1996 |
| CAJ4461Y | 220-240/50/1 | HBP | 18.3 | 603 | 793 | 1021 | 1294 | 1780 | 2003 | 2453 |
| TAJ4461Y | 380-400/50/3 | HBP | 18.3 | 603 | 793 | 1021 | 1294 | 1780 | 2003 | 2453 |
| CAJ4476Y | 220-240/50/1 | HBP | 22.8 | 643 | 889 | 1177 | 1514 | 2100 | 2363 | 2888 |
| CAJ4492Y | 220-240/50/1 | HBP | 25.9 | 800 | 1113 | 1467 | 1871 | 2554 | 2856 | 3454 |
| TAJ4492Y | 380-400/50/3 | HBP | 25.9 | 800 | 1113 | 1467 | 1871 | 2554 | 2856 | 3454 |
| CAJ4511Y | 220-240/50/1 | HBP | 32.7 | 1109 | 1474 | 1895 | 2382 | 3218 | 3592 | 4332 |
| TAJ4511Y | 380-400/50/3 | HBP | 32.7 | 1109 | 1474 | 1895 | 2382 | 3218 | 3592 | 4332 |
| CAJ4513Y | 220-240/50/1 | HBP | 34.45 | 1329 | 1727 | 2192 | 2733 | 3719 | 4080 | 4906 |
| AJ 4513N-FZ | 220-240/50/1 | HBP | 34.45 | 1325 | 1751 | 2258 | 2862 | 3336 | 4415 | 5395 |
| FH 4518Y-XC | 220-240/50/1 | HBP | 48.5 | 1687 | 2277 | 2979 | 3810 | 5357 | 5928 | 7248 |
| FH 4518Y-XG | 380-400/50/3 | HBP | 48.5 | 1715 | 2314 | 3024 | 3864 | 5422 | 5996 | 7321 |
| TFH4525Y | 380-400/50/3 | HBP | 74.25 | 2167 | 2913 | 3822 | 4884 | 6654 | 7411 | 8846 |
