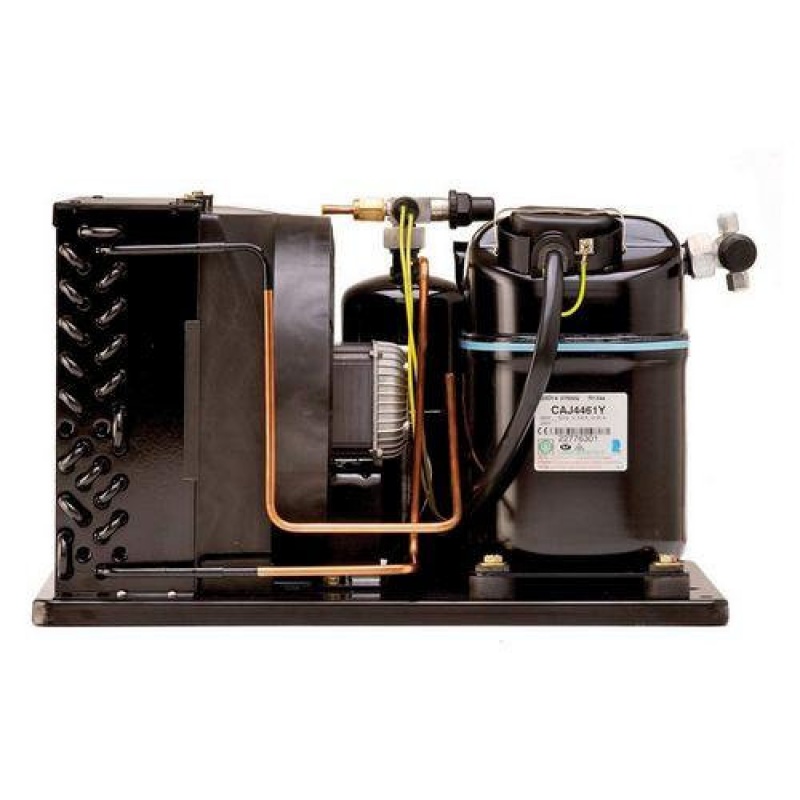

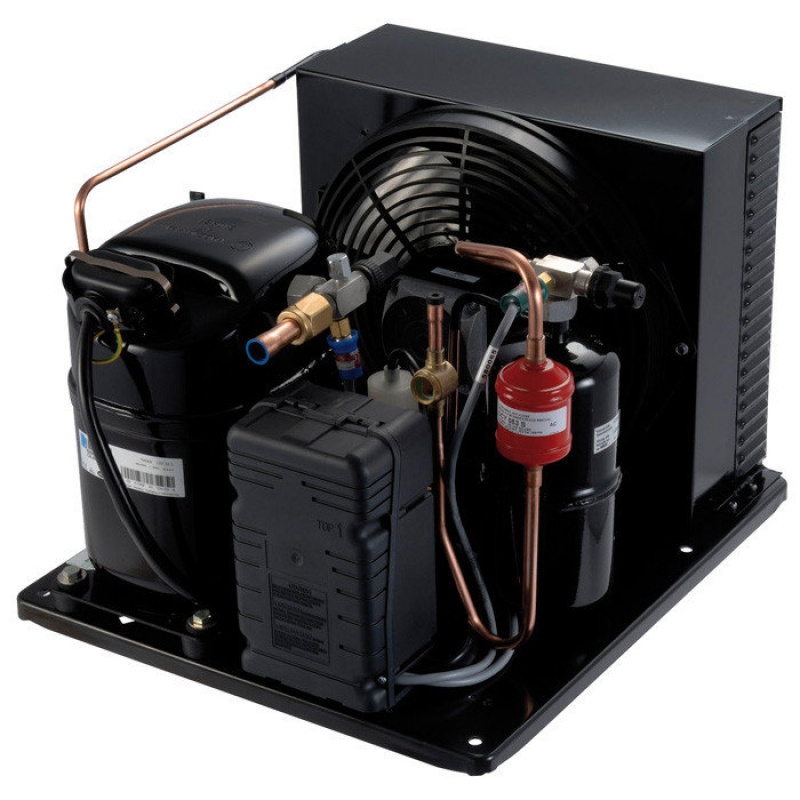

Tecumseh L'Unite condensing unit CAJ 2446 ZBR (R404A)

Agregat frigorific Tecumseh CAJ2446ZBRAgregat condensare CAJ2446ZBR.
qr Ai observat o eroare?

COD DTN

  • 121.54.1040

COD PRODUS

Solicită ofertă PDF

Condensing unit Tecumseh L'Unite CAJ 2446 ZBR, low temperatures (LBP), 26.2 cmc, 869 W, R404A/R507A

  • New model: CAJN2446ZBR.
  • Condensing unit with single-phase power supply (230V).
  • Cooling capacity: 869 W at -30°C.
  • Negative temperature aggregate applications: cold room aggregate or refrigerated showcase aggregate.
  • Use for integrated and remote refrigeration applications.
  • CAJ2446ZBR freezer refrigeration unit with outstanding energy efficiency.
  • Like any Tecumseh aggregate, the condensing unit is at the top of the market for reliability!

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP
  • Refrigerant R404A, R507A
  • Weight 39.0 kg
  • Displacement 26.2 cm³
  • Air flow volume 900 m³/h
  • Maximum current 8.10 A
  • Oil quantity 2.35 l
  • Connections
    • ref. (discharge) : 3/8
    • asp. (suction) : 1/2
  • Cooling capacity [W] / Evapor. temp. [°C] (ambient. temp. of 32°C)
    • -40°C : 480 W
    • -35°C : 664 W
    • -30°C : 869 W
    • -23,3°C : 1174 W
    • -20°C : 1334 W
    • -15°C : 1586 W
    • -10°C : 1843 W

Tabel comparativ

Tecumseh L'Unite (LBP)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Air flow volume (m³/h)ConnectionsCooling capacity [W] / Evapor. temp. [°C] (ambient. temp. of 32°C) (W)
ref. (discharge)asp. (suction)-40°C-35°C-30°C-23,3°C-20°C-15°C-10°C
CAJ2432ZBR220-240/50/1LBP18.35501/41/22713805066957969571125
CAJ2446ZBR220-240/50/1LBP26.29003/81/24806648691174133415861843
TAJ2446ZBR380-400/50/3LBP26.29003/81/24806648691174133415861843
CAJ2464ZBR220-240/50/1LBP34.59003/85/863183810701414159318732157
TAJ2464ZBR380-400/50/3LBP34.59003/85/863183810701414159318732157
FHT2480ZBR220-240/50/1LBP54.322003/85/8791117415672109238228033230
TFH2480ZBR380-400/50/3LBP53.222003/85/8791117415672109238228033230
FHT 2480 ZBR-XG (380V)380-400/50/3LBP54.322003/85/8954135618162300289034964149
TFH2511ZBR380-400/50/3LBP68.022503/85/81086156020862859326038854516
FHT 2511 ZBR-XC220-240/50/1LBP74.217503/85/81341197126723400426151406086
FHT 2511 ZBR-XG (380V)380-400/50/3LBP68.01750/18503/85/81237181624723100398648285723
TAG2516ZBR380-400/50/3LBP112.548003/87/81538223529944105469156246608
TAG2522ZBR380-400/50/3LBP134.848003/81-1/82028286937795102579668968050

Accesorii

Compressor Tecumseh CAJ2446Z (R404A)

Compressor Tecumseh CAJ2446Z (R404A)
R404A (9 kg) refrigerant

R404A (9 kg) refrigerant
