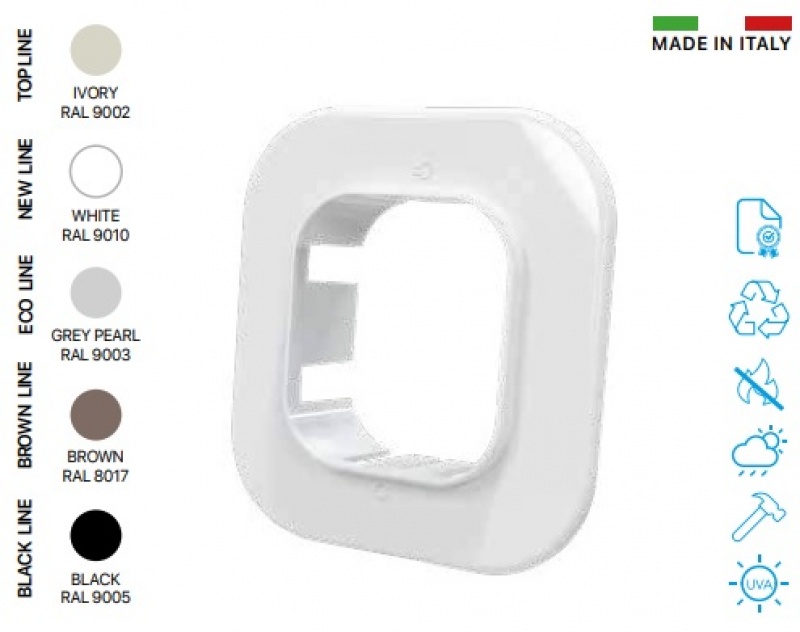

NEW LINE RM-60 wall flange (bright white)

nou

Solicită ofertă PDF

Tecnosystemi PVC wall cover with 60 mm width

The accessories Tecnosystemi have been studied withmaximum care and professional skill.
In fact, they are aesthetically very refined and sophisticated, smooth in the curves and lightly round to be adapted harmoniously with all rooms.
The wide range permits to solve every installation problemv and the new joint between the cover and the bottom help to fix it and assure the insulation from the weather of the material placed inside.
All accessories are packaged with thermo-shrinking film, in minimum quantities with stainless steel screws.

Wall flanges
Modele	Masca ECO LINE RM-60	Masca ECO LINE RM-72	Masca ECO LINE RM-100	Masca NEW LINE RM-60	Masca NEW LINE RM-72	Masca NEW LINE RM-100	Masca NEW LINE RFE	Masca NEW LINE RA	Masca TOP LINE RM-60	Masca TOP LINE RM-72	Masca TOP LINE RM-100
Width (mm)	60	72	100	60	72	100	130	130	60	72	100

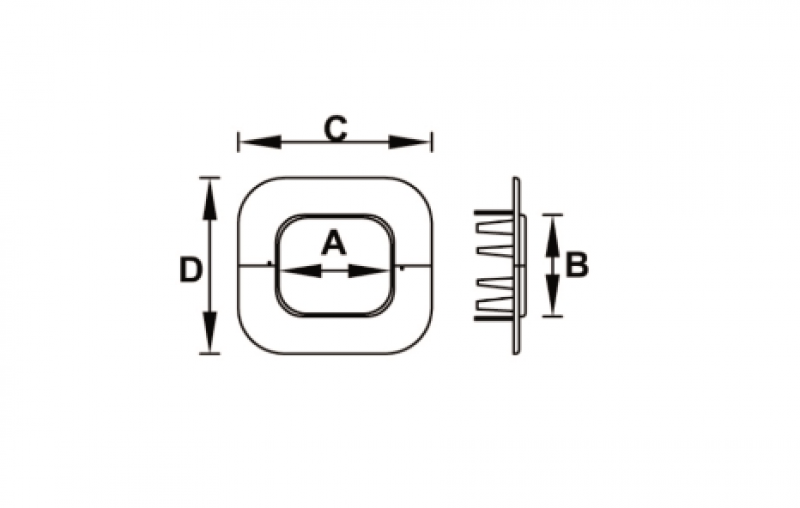

Dimensions (L x W x H) (mm)	66 x 56 (int), 105 x 97 (ext) x 30	78 x 68 (int), 120 x 112 (ext) x 30	104 x 78 (int), 167 x 143 (ext) x 30	66 x 56 (int), 105 x 97 (ext) x 30	78 x 68 (int), 120 x 112 (ext) x 30	104 x 78 (int), 167 x 143 (ext) x 30	130 x 130 x X	130 x 130 x X	66 x 56 (int), 105 x 97 (ext) x 30	78 x 68 (int), 120 x 112 (ext) x 30	104 x 78 (int), 167 x 143 (ext) x 30
Colour	alb neutru RAL 9003 (neutral white)	alb neutru RAL 9003 (neutral white)	alb neutru RAL 9003 (neutral white)	alb strălucitor RAL 9010 (bright white)	alb strălucitor RAL 9010 (bright white)	alb strălucitor RAL 9010 (bright white)	alb strălucitor RAL 9010 (bright white)	alb strălucitor RAL 9010 (bright white)	fildeș RAL 9002 (ivoire)	fildeș RAL 9002 (ivoire)	fildeș RAL 9002 (ivoire)
Range	Eco Line	Eco Line	Eco Line	New Line	New Line	New Line	New Line	New Line	Top Line	Top Line	Top Line
