Rivacold ceiling monoblock BEC2353LA80P12 (LBP, 2873 W) - 380 V

Agregat monobloc tavan Rivacold BEC2353LA80P12 (LBP, 2873 W) - 380 VAgregat frigorific monobloc Rivacold pentru congelare (LBP)Agregat monobloc tavan Rivacold BEC2353LA80P12
nou
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Rivacold monoblock unit for freezing (LBP), ceiling mounting, 3 x 33.4 cm³, R290, 380V

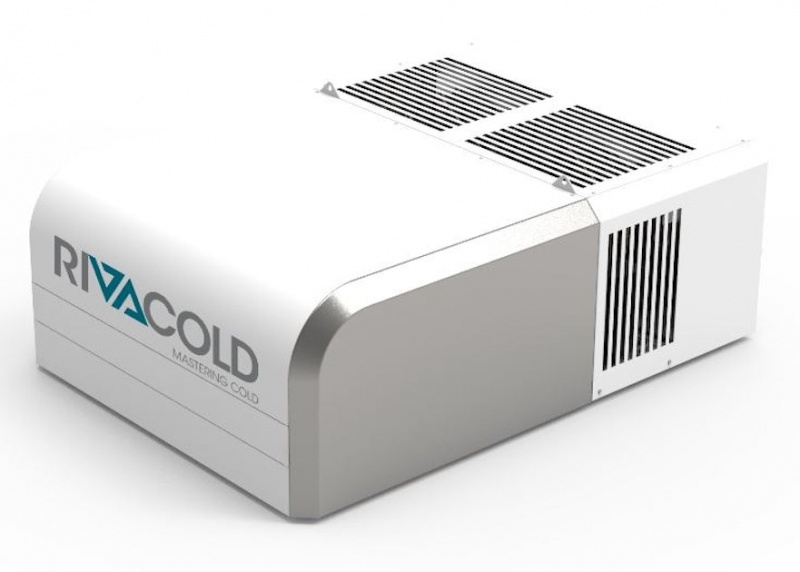

  • Rivacold BEC2353LA80P12 cased refrigeration unit for horizontal installation (through the ceiling).
  • Monoblock unit with cooling capacity of 2515 W at -25ºC (cond. temp. 43ºC) and 2873 W at -25ºC (cond. temp. 32ºC).
  • Applications: freezing (negative temperatures - LBP), three-phase supply.
  • Monoblock unit refrigerant: R290 (propane).
  • Compact type unit, Rivacold BEST CM 235 range, intended for modular cold rooms, mobile cold rooms and refrigerated spaces that can be relocated.
  • 2 in 1 unit with 3 x 33.4 cm³ 3-phase hermetic compressor and 2 350 mm fans.
  • Cooling unit air flow: 4800 m³/h condenser and 2300 m³/h evaporator.
  • Cooling unit air flow length: 5 m.
  • Weight of cooling unit BEC2353LA80P12: 192 kg.

Specificații

  • Power supply 380-400/50/3 V/Hz/Ph
  • Application LBP
  • Refrigerant R290
  • Weight 192 kg
  • Mounting orizontal, pe tavan (horizontally, ceiling mounting)
  • Unit type compact plug-in
  • Displacement 3 x 33.42 cm³
  • Power input 3.0 kW
  • Fan no. 2
  • Dimension of fan 2 x 350 mm n° x Ø
  • Fan's air flow 2300 m³/h
  • Air throw 5 m
  • Cooling capacity [W] / Evapor. temp. [°C] (ambient. temp. of 32°C)
    • -25°C : 2873 W
    • -20°C : 3406 W
    • -15°C : 3974 W
    • -5°C : - W
    • 0°C : - W
    • 5°C : - W

Tabel comparativ

Ceiling-mounted monoblocks Rivacold
Modele Power supply (V/Hz/Ph)ApplicationMountingUnit typeDisplacement (cm³)Air throw (m)Cooling capacity [W] / Evapor. temp. [°C] (ambient. temp. of 32°C) (W)
-25°C-20°C-15°C-5°C0°C5°C
BEC1301LA10P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in18.73.0625755898---
BEC1301LA20P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in27.83.083710001176---
BEC2301LA30P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in33.44.5101712121422---
BEC2302LA40P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 214141617062026---
BEC2302LA40P12380-400/50/3LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 214141617062026---
BEC2302LA50P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 27.84169520252382---
BEC2302LA50P12380-400/50/3LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 27.84169520252382---
BEC2302LA60P11220-240/50/1LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 33.424189822492624---
BEC2302LA60P12380-400/50/3LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 33.424189822492624---
BEC2353LA70P12380-400/50/3LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in3 x 27.85256430643606---
BEC2353LA80P12380-400/50/3LBPorizontal, pe tavan (horizontally, ceiling mounting)compact plug-in3 x 33.425287334063974---
BEC1301MA05P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in7.283.0---626737858
BEC1301MA07P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in9.993.0---8199561104
BEC1301MA10P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in12.13.0---92410741236
BEC1301MA20P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in16.83.0---115613321520
BEC2301MA30P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in21.04.5---145716831926
BEC2301MA40P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in27.84.5---171719722245
BEC2302MA50P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 16.84---234126983078
BEC2302MA50P12380-400/50/3MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 16.84---234126983078
BEC2302MA60P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 214---269830973521
BEC2302MA60P12380-400/50/3MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 214---269830973521
BEC2302MA70P11220-240/50/1MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 27.84---314035844053
BEC2302MA70P12380-400/50/3MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in2 x 27.84---314035844053
BEC2353MA80P12380-400/50/3MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in3 x 215---408546905334
BEC2353MA90P12380-400/50/3MBP
HBP		orizontal, pe tavan (horizontally, ceiling mounting)compact plug-in3 x 27.85---475954316143
