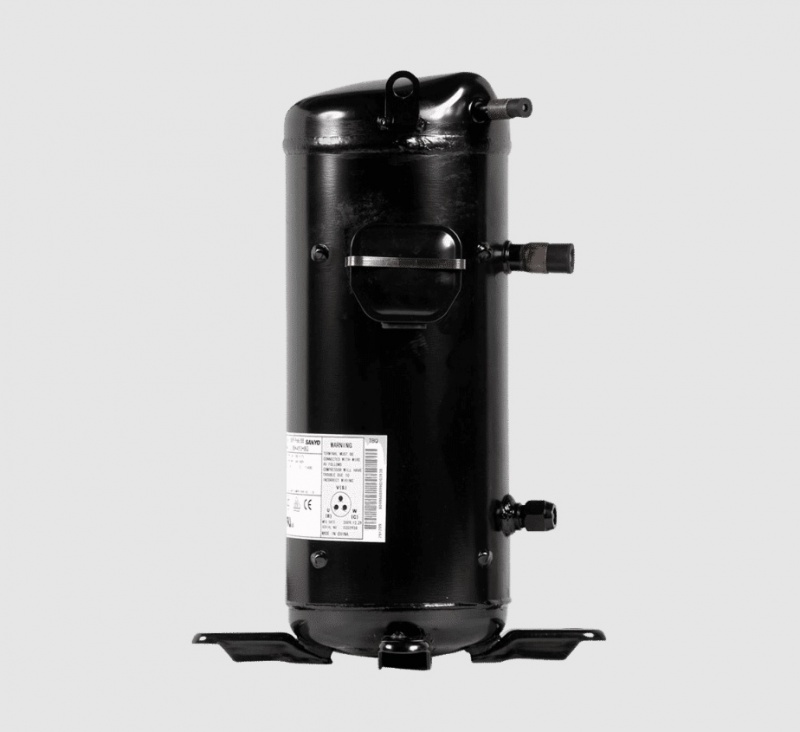

Sanyo-Panasonic compressor C-SBS180H00B (64000 BTUs)

Compresor Sanyo model C-SBS180H00B (64000 BTU)

nou

Ai observat o eroare?

COD DTN

102.74.2037

COD PRODUS

C-SBS180H00B

COMPRESOR CLIMA SANYO C-SBS180H00B

Solicită ofertă PDF

Sanyo-Panasonic compressor for air conditioners, R407C, 64000 BTUs, 380V - inverter type, not ON-OFF

Scroll type AC inverter compressor for 18.65 kW three-phase air conditioning units and heat pumps.
C-SBS180H00B air conditioning inverter compressor approved refrigerants: R407C, R134a, R448A, R449A, R513A.
Advanced technology and precision operation - essential aspect in air conditioning service activities.
Applications: AC, chillers, commercial refrigeration, AHU.
Special readiness in air conditioning repairs with capacities close to 64000 BTUs.
Air conditioning compressor capacity: 55.7 cmc cylinder capacity.
Weldable connections (ODF).
Maximum height scroll compressor 64000 BTU: 451 mm.
Can be connected in tandem through the oil sight glass.
Weight C-SBS180H00B: 44 kg.

Specificații

Power supply 380-400/50/3 V/Hz/Ph
Nominal capacity 64000 BTU
Refrigerant R134a, R407C, R448A, R449A, R513A
Nominal capacity 18.65 kW
Starting capacitor μF
Model scroll
Motor techn. inverter

Tabel comparativ

Sanyo-Panasonic
Modele	Power supply (V/Hz/Ph)	Nominal capacity (BTU)	Refrigerant	Nominal capacity (kW)	Model	Motor techn.
C-SBS120H15A	220-240/50/1	33080	R407C	9.69	scroll	ON-OFF
C-SBS145H15A	220-240/50/1	40240	R134a R407C R448A R449A R513A	11.79	scroll	ON-OFF
C-SBS165H15A	220-240/50/1	46000	R407C	13.48	scroll
C-SBS180H15A	220-240/50/1	49400	R134a R407C R448A R449A R513A	14.47	scroll	ON-OFF
C-SBS200H15H	220-240/50/1	55240	R407C	16.18	scroll	ON-OFF
C-SBS180H00B	380-400/50/3	64000	R134a R407C R448A R449A R513A	18.65	scroll	inverter
C-SBS235H38B	380-400/50/3	66500	R134a R407C R448A R449A R513A	19.5	scroll	ON-OFF
C-SBN263H8G	380-400/50/3	32700	R134a R407C R448A R449A R513A	9.58	scroll	ON-OFF
C-SBN303H8G	380-400/50/3	39000	R134a R407C R448A R449A R513A	11.60	scroll	ON-OFF
C-SBN353H8A	380-400/50/3	45700	R134a R407C R448A R449A R513A	13.39	scroll	ON-OFF
C-SBN373H8G	380-400/50/3	49450	R407C	14.49	scroll	ON-OFF
C-SBN453H8G	380-400/50/3	60000	R134a R407C R448A R449A R513A	17.58	scroll	ON-OFF
C-SCN603H8K	380-400/50/3	83550	R407C	24.48	scroll	ON-OFF
C-SCN753H8K	380-400/50/3	102000	R134a R407C R448A R449A R513A	29.89	scroll	ON-OFF
C-SCN903H8K	380-400/50/3	119000	R134a R407C R448A R449A R513A	34.87	scroll	ON-OFF
C-SBN263H38B	380-400/50/3	30180	R410A HI-COP MODEL	9.13	scroll	ON-OFF
C-SBN261H5A	220-240/50/1	33100	R134a R407C R448A R449A R513A	9.7	scroll	ON-OFF
C-SBP120H15A	220-240/50/1	33500	R410A	9.8	scroll	ON-OFF
C-SBP120H38B	380-400/50/3	34100	R410A HI-COP MODEL	10.0	scroll	ON-OFF
C-SBP140H38B	380-400/50/3	39900	R410A HI-COP MODEL	11.69	scroll	ON-OFF
C-SBP160H38B	380-400/50/3	45000	R410A HI-COP MODEL	13.18	scroll	ON-OFF
C-SBP170H38B	380-400/50/3	48700	R410A HI-COP MODEL	14.27	scroll	ON-OFF
C-SBP205H38B	380-400/50/3	57600	R410A HI-COP MODEL	16.88	scroll	ON-OFF
C-SBP235H38B	380-400/50/3	67900	R410A HI-COP MODEL	19.90	scroll	ON-OFF
C-SCP270H38B	380-400/50/3	76400	R410A HI-COP MODEL	22.39	scroll	ON-OFF
C-SCP315H38B	380-400/50/3	88660	R410A HI-COP MODEL	26.00	scroll	ON-OFF
C-SCP360H38B	380-400/50/3	101600	R410A HI-COP MODEL	29.77	scroll	ON-OFF
C-SCP400H38B	380-400/50/3	111850	R410A HI-COP MODEL	32.79	scroll	ON-OFF
C-SCP435H38B	380-400/50/3	129300	R410A HI-COP MODEL	37.89	scroll	ON-OFF
C-SCP510H38B	380-400/50/3	101600	R410A HI-COP MODEL	29.77	scroll	ON-OFF
C-SBN303H8H	380-400/50/3	33500	R410A	9.81	scroll	ON-OFF
C-SBN353H8H	380-400/50/3	44400	R410A	13.01	scroll	ON-OFF
C-SBN373H8H	380-400/50/3	48100	R410A	14.09	scroll	ON-OFF
C-SBN453H8H	380-400/50/3	56000	R410A	16.41	scroll	ON-OFF
C-SBN523H8H	380-400/50/3	65500	R410A	19.2	scroll	ON-OFF

Accesorii

R407C (11 kg) refrigerant
