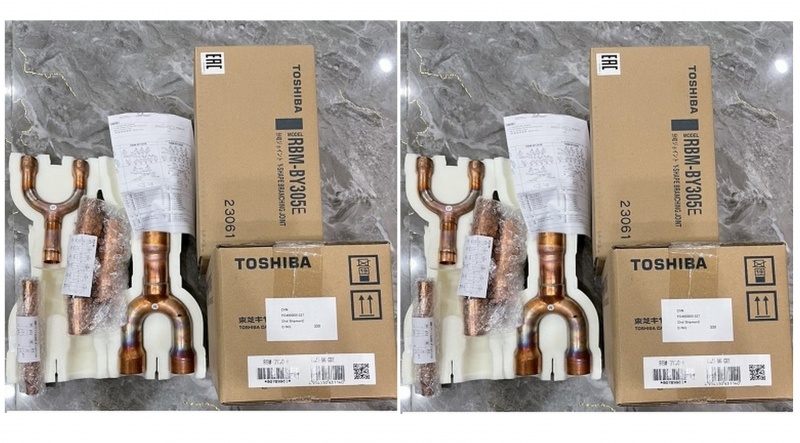

Toshiba RBM-BY305E refnet joint (≥ 25.2 HP)

Solicită ofertă PDF

Toshiba industrial AC Refnet for Y branching of professional air conditioning systems

Refnet RBM-BY305E for AC capacities of total 18.7 kW (25.2 HP, 64000 BTUs) or more.
Y branch for Toshiba SMMSi VRF, SHRM & Mini SMMS professional air conditioning systems.
Gas connection 1½, liquid line connection 7/8.
Compact design that has stood the test of time, making it really easy to locate and install the joint.
Light weight, optimized.
Newly designed Y-shape branching joint insulation provided for each individual joint.

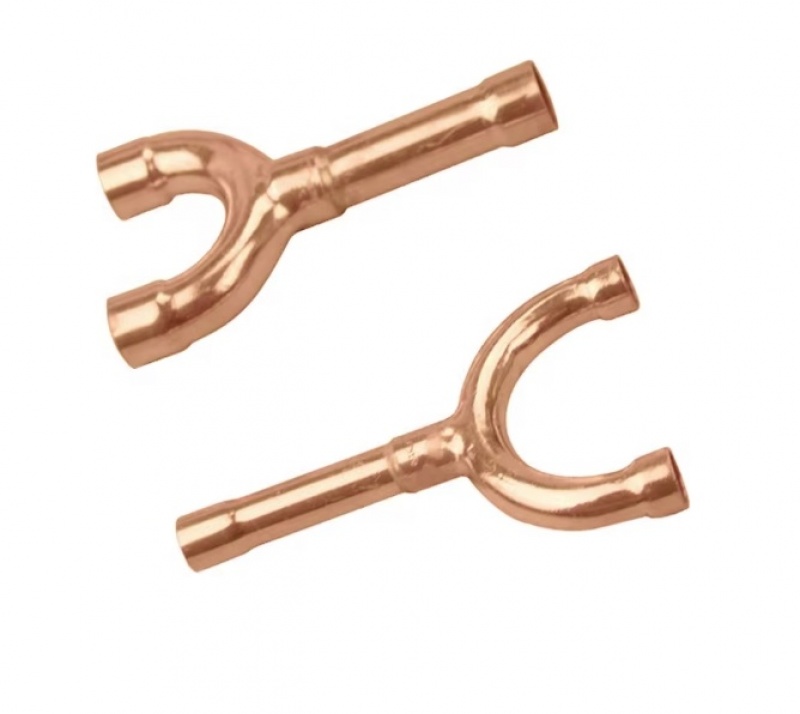

Refnet air conditioning Toshiba made of copper, intended for HVAC installers.

Toshiba distributors - Y branches
Modele	RBM-BY55E	RBM-BY105E	RBM-BY205E	RBM-BY305E	RBM-BY405E
IDU compatibility	Toshiba SMMS & Mini SMMS Toshiba SHRM	Toshiba SMMS & Mini SMMS	Toshiba SMMS & Mini SMMS Toshiba SHRM	Toshiba SMMS & Mini SMMS Toshiba SHRM	Toshiba SMMS & Mini SMMS
Installing type	in exteriorul unitatii (outside installation)	in exteriorul unitatii (outside installation)	in exteriorul unitatii (outside installation)	in exteriorul unitatii (outside installation)	in exteriorul unitatii (outside installation)
Total capacity of downstream IDU(s) C (kW)	4.77	4.77 < 10.5	10.5 < 18.7	≥ 18.7	≥ 45.6 kW
Piping connection gas (mm)	5/8	7/8	1¼	1½	1-1/2
Piping connection liquid (mm)	3/8	5/8	5/8	7/8	7/8

R410a (9 kg) refrigerant
