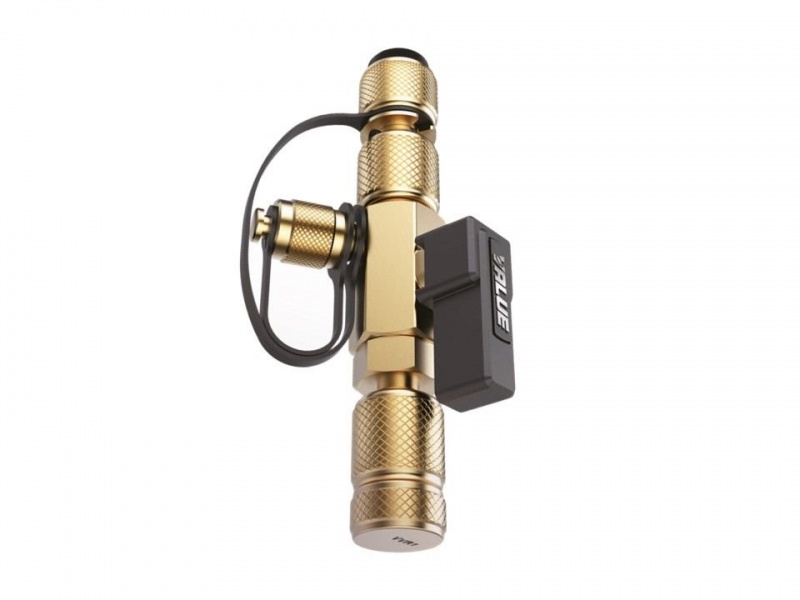

Value VCR-1 Valve Core Remover Tool🪛1/4 x 5/16🪛 DTN GROUP

Value VCR-1 Valve Core Removal Tool (1/4 x 5/16)

Dispozitiv indepartare miez supapa Value VCR-1

Dispozitiv indepartare miez supapa Value VCR-1 (1/4 x 5/16)

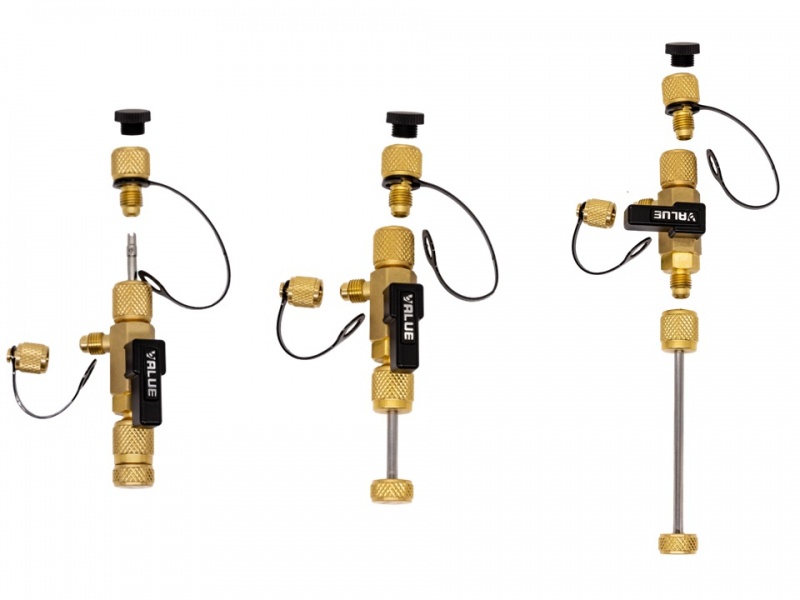

Instrument profesional de indepartare a supapelor sub presiune

Ai observat o eroare?

COD DTN

502.99.0014

COD PRODUS

Indepartare miez supapa Value VCR-1 (1/4 x 5/16)

Solicită ofertă PDF

Professional 1/4" and 5/16" valve core removal tool from Value: for pressure valves

Value VCR-1 - versatile tool for replacing pressurized valves in HVAC-R installations.
A must-have in the refrigeration technician's kit for quick recoveries/evacuations.

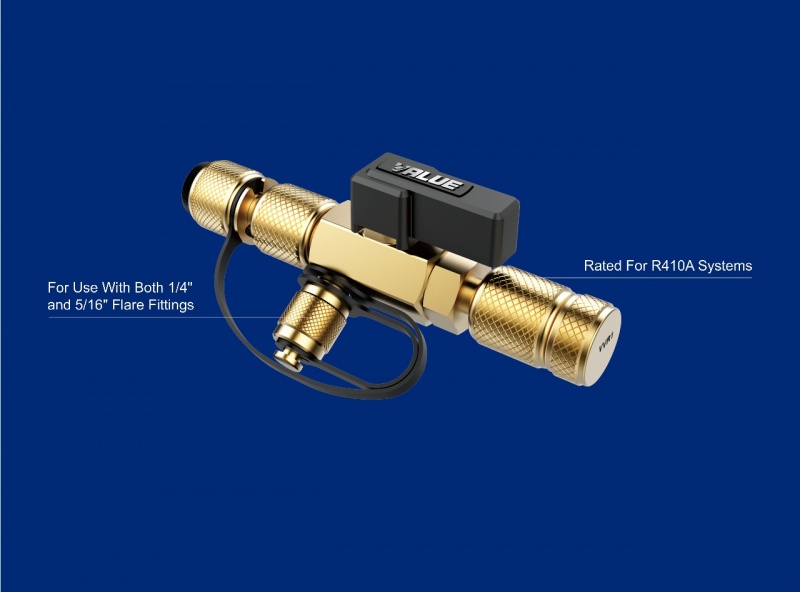

General applications: 1/4” x 1/4” and 5/16” service fittings.
Specific applications: trouble-free evacuation and refilling of installations or vacuuming.
The Value VCR-1 functions as a T-connector for connecting a vacuum gauge.
The dual-size air conditioning service valve connection eliminates the need for two separate tools.
VCR1 base material: R410A pressure-tested brass.
Valve removal device weight: 0.2 kg.

Specificații

Observations Pentru supape de 1/4″ și 5/16″, rezistență la vid până la 20 microni, mâner metalic pentru durabilitate (For 1/4″ and 5/16″ valves, vacuum resistance up to 20 microns, metal handle for durability)
Refrigerant R134a, R404A, R507A, R407C, R452A, R448A, R449A, R22, R410A, R450A, R32, R410A HI-COP MODEL, R134A, R1234ze, R1234yf, R12, R454B
Description Instrument pentru înlocuirea supapelor de serviciu și evacuarea și reumplerea fără probleme (1/4” x 1/4” și 5/16”). Tool for replacing service valves and seamless evacuation and refilling (1/4” x 1/4” and 5/16”)

Tabel comparativ

Adapters, connectors and other couplings
Modele	Refrigerant	Description
Adaptor Robinair RAHFO1234yf (12mm x 1/4)	R1234yf	adaptor (adapter) 12mm x 1/4 SAE, R1234yf
Adaptor Robinair RA894A (3/8 x 1/4)	R134a R404A R407C R22	Adaptor (adapter) 3/8" ffl x 1/4" mfl
Adaptor castel G9150/R05 (1/4 SAE 1/4 NAT)	R134a R404A R507A R407C R452A R448A R449A R22 R410A R450A R1234ze	cuplă dreaptă (straight); 1/4SAE*1/4NPT
Cupla Robinair RA RG180-5-4	R410A	cuplă dreaptă (straight); 5/16" FFL x 1/4" MFL
Cupla Robinair RA RG0.90-5-4	R410A	cuplă tip cot (90° type); 5/16" FFL x 1/4" MFL
Cupla Refco V-35024		cupla uz general (small valve general application); conexiune intrare (inlet): 1/8"NPT; iesire (outlet): 1/4" SAE; maner albastru (blue handle)
Cupla Refco V-35042		cupla uz general (small valve general application); conexiune intrare (inlet): 1/4"SAE; iesire (outlet): 1/4"NPT; maner rosu (red handle)
Cupla Refco V-35094		cupla uz general (small valve general application); conexiune intrare (inlet): 1/4"SAE; iesire (outlet): 1/4"SAE; maner albastru (blue handle)
Indepartare miez supapa Fieldpiece VC2GE (1/4 x 5/16)	R134a R404A R507A R407C R452A R448A R449A R22 R410A R450A R32 R410A HI-COP MODEL R134A R1234ze R1234yf R12 R454B	Instrument de îndepărtare a miezului de supapă de 1/4" și 5/16" pentru supapă dublă cu vizor (1/4" and 5/16" Valve Core Removal Tool Dual Valve with Sight Glass)
Indepartare miez supapa Value VCR-1 (1/4 x 5/16)	R134a R404A R507A R407C R452A R448A R449A R22 R410A R450A R32 R410A HI-COP MODEL R134A R1234ze R1234yf R12 R454B	Instrument pentru înlocuirea supapelor de serviciu și evacuarea și reumplerea fără probleme (1/4” x 1/4” și 5/16”). Tool for replacing service valves and seamless evacuation and refilling (1/4” x 1/4” and 5/16”)
