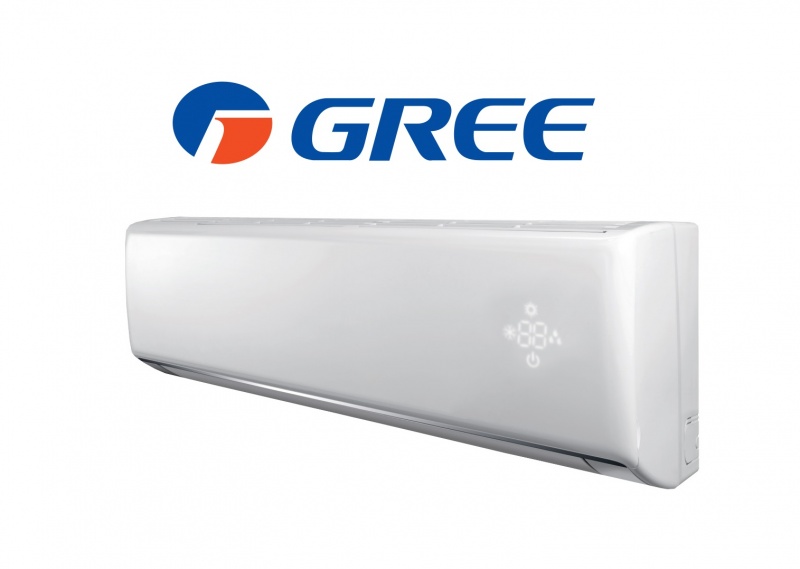

Wall-mounted indoor unit Gree GMV-ND45G (15000 BTU)

Solicită ofertă PDF

Industrial air conditioner GMV-ND45G/B4B-T, wall mounted, 4.5 - 5 kW, 15000 BTUs, R410A

Inverter technology with a capacity of 15000 BTU (cooling) and 17000 BTU (heating).
GMV split air conditioner without an outdoor unit compatible with Gree GMV air conditioning systems.
Eurovent certification guaranteed.
Gree Wall-Mounted GMV-ND45G/B4B-T - professional air conditioner with single-phase power supply for VRF.
The most suitable solution for interiors with modern design: business buildings, showrooms, hospitals, etc.
Versatile display of temperature and main functions via the LED built into the panel.
Comfortable and intelligent airflow. In cooling mode, the airflow is first horizontal, then gradually descends.
In heating mode, the airflow is first directed downwards, then gradually rises.
Mold prevention and electrostatic fiber filter.
The Gree GMV outdoor unit will be selected separately.

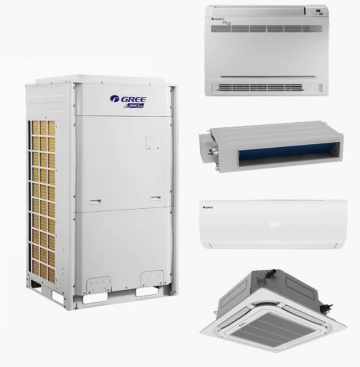

The Gree VRF system will be completed with: Gree GMV Y-branches, AHU-kit control boxes, GMV controllers and monitoring systems.

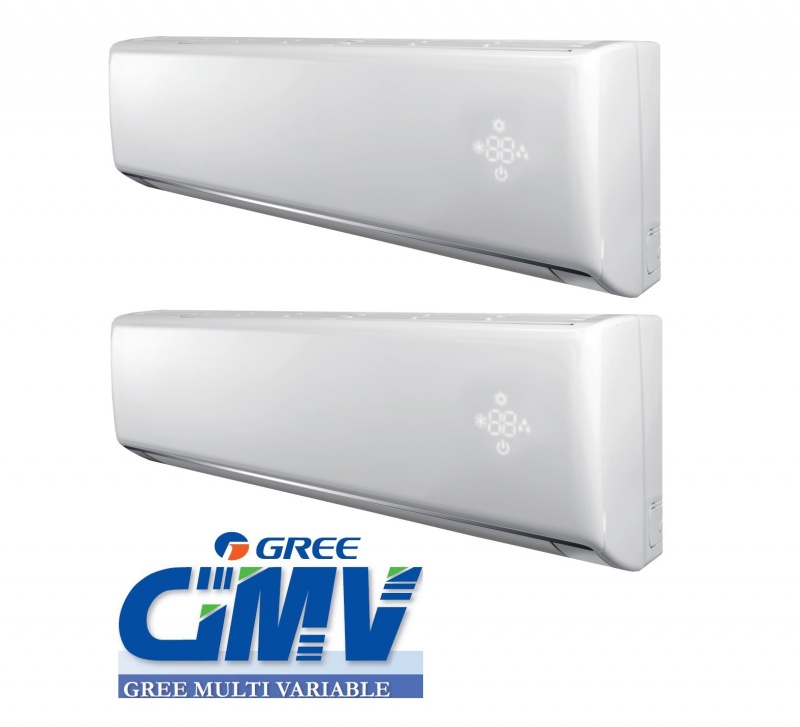

Wall mounted Gree GMV indoor units
Power supply (V/Hz/Ph)	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1	220-240/50/1
BTU cooling (BTU)	7500	9500	12000	15000	19000	21500	32500
BTU heating (BTU)	8500	11000	13500	17000	21500	24200	36000
Cooling capacity (kW)	2.2	2.8	3.6	4.5	5.6	6.3	9.5
Heating capacity (kW)	2.5	3.2	4.0	5.0	6.3	7.1	10.5
Air flow volume (M) (m³/h)	440	440	460	580	850	850	1100
Sound pressure level IDU (M) (db(A))	33	33	35	40	41	41	48
Piping connection liquid (mm)	6.35	6.35	6.35	6.35	9.52	9.52	9.52
Piping connection gas (mm)	9.52	9.52	12.7	12.7	15.9	15.9	15.9
Dimensions (W x D x H) (mm)	845 x 209 x 289	845 x 209 x 289	845 x 209 x 289	970 x 224 x 300	1078 x 246 x 325	1078 x 246 x 325	1350 x 258 x 326

Wall mounted Gree GMV indoor units

Modele

Power supply (V/Hz/Ph)

220-240/50/1

BTU cooling (BTU)
