WIND fan-motor bracket H109-2
Fan-motor bracket with height of 109 mm
- Spare part for WIND universal fan-brackets.

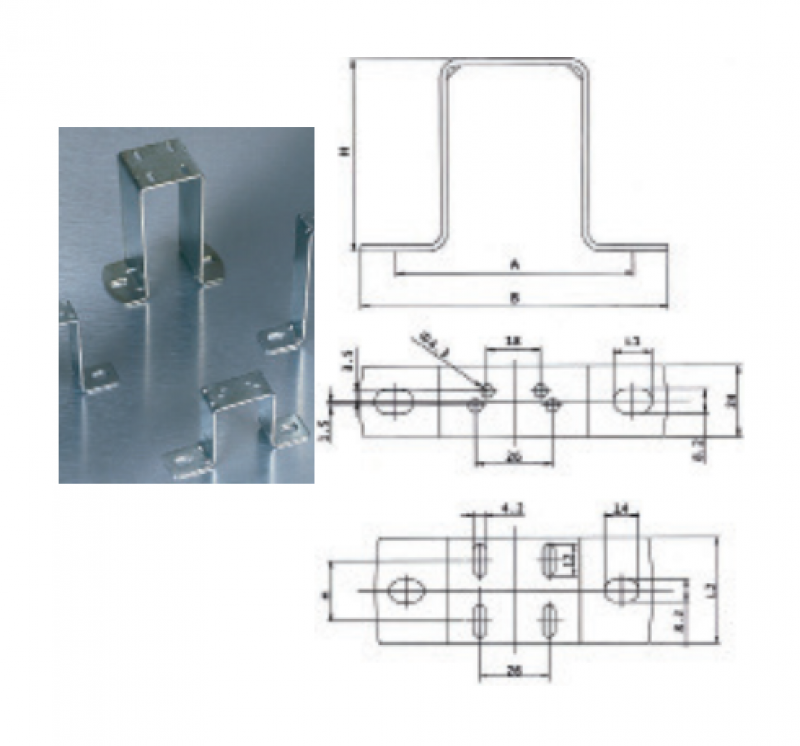

- Dimensions
- A : 78 mm
- B : 100 mm
- H : 109 mm
- L1 : 14 mm
- L2 : 39 mm
| Fan-motor brackets |
| Modele |
Dimensions (mm) |
| A | B | H | L1 | L2 |
| H55 | 81 | 106 | 55 | 13 | - |
| H72 | 81 | 106 | 72 | 13 | - |
| H84 | 81 | 106 | 84 | 20 | - |
| H109-1 | 81 | 106 | 109 | 14 | - |
| H109-2 | 78 | 100 | 109 | 14 | 39 |
| H109-3 | 78 | 100 | 109 | 14 | 49 |
