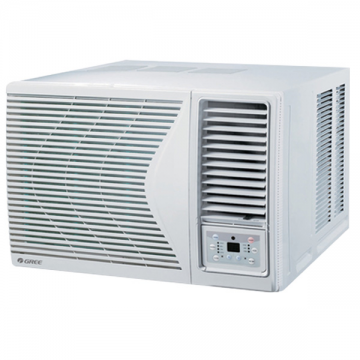

Window type Gree Coolani 9000 BTU (R32)

Window type Gree Coolani (R32) perspectiveWindow type Gree Coolani (R32)
qr Did you notice an error?

DTN CODE

  • 401.90.6602

PRODUCT CODE

Offer request PDF

Compact window type air-conditioning for home and container offices.

  • 145V low voltage start up, being suitable for unstable power supply areas.
  • Soft start: the compressor (re)starts smootly, restraining the impact on distribution network.
  • Self-diagnosis and fresh air supply ventilation.
  • 3D airflow, comfortable sleep mode and cold air prevention.
  • Filter dirty alarm and dehumidifying function.





Specifications

  • Power supply 220-240/50/1 V/Hz/Ph
  • Refrigerant R32
  • BTU cooling 9200 BTU
  • BTU heating - BTU
  • Cooling capacity 2,7 kW
  • Heating capacity - kW
  • Power consumption C 0,78 kW
  • Power consumption H - kW
  • SEER/SCOP 5,2/- W/W
  • EER/COP 3,45/- W/W
  • Energy class C A
  • Energy class H
  • Rated current C/H 3,5/- A/A
  • Air flow volume (M) 350 m³/h
  • Indoor unit (IDU)
  • Sound pressure level IDU (M) 48 (indoor side), 54 (outdoor side) db(A)
  • Sound power level IDU (M) 57 (indoor side), 63 (outdoor side) db(A)
  • Net dimensions IDU (WxDxH) 708 x 375 x 560 mm
  • Net weight IDU 43 kg
  • Outdoor unit (ODU)
  • Sound pressure level ODU (M) - dB(A)
  • Sound power level OU (M) - dB(A)
  • Compressor type Rotativ (rotary)
  • Net dimensions ODU (WxDxH) - mm
  • Net weight ODU - kg
  • Piping connection liquid - mm
  • Piping connection gas - mm
  • Max. distance lenght - m
  • Max. distance height - m
  • Refrigerant charge 0,51 kg
  • Operation ambient temp. range C - → °C
  • Operation ambient temp. range H - → °C
  • Control Remote

Comparative table

Window type units
Modele GJC09AF-E6RNB3AGJC12AG-E6RNB3A
Power supply (V/Hz/Ph)220-240/50/1220-240/50/1
BTU cooling (BTU)920012500
BTU heating (BTU)--
Cooling capacity (kW)2,73,65
Heating capacity (kW)--
SEER/SCOP (W/W)5,2/-5,4/-
EER/COP (W/W)3,45/-3,54/-
Energy class CAA
Energy class H
Air flow volume (M) (m³/h)350430
Indoor unit (IDU)
Sound pressure level IDU (M) (db(A))48 (indoor side), 54 (outdoor side)48 (indoor side), 56 (outdoor side)
Sound power level IDU (M) (db(A))57 (indoor side), 63 (outdoor side)57 (indoor side), 63 (outdoor side)
Net dimensions IDU (WxDxH) (mm)708 x 375 x 560700 x 428 x 600
Net weight IDU (kg)4350
Outdoor unit (ODU)
Sound pressure level ODU (M) (dB(A))--
Sound power level OU (M) (dB(A))--
Net dimensions ODU (WxDxH) (mm)--
Net weight ODU (kg)--
Piping connection liquid (mm)--
Piping connection gas (mm)--
Max. distance lenght (m)--
Max. distance height (m)--
Refrigerant charge (kg)0,510,63
Operation ambient temp. range C (°C)- → - → -
Operation ambient temp. range H (°C)- → - → -
ControlRemoteRemote
