| Wall-mounted brackets | |||||||||
|---|---|---|---|---|---|---|---|---|---|

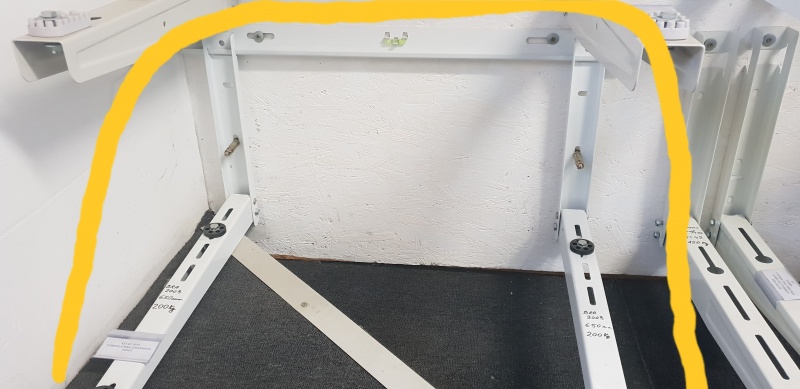

| Modele | Consolă Tecnosystemi SG 90 EVO (400 mm x 400 mm) | Consolă Tecnosystemi SGL 100 EVO (430 mm x 400 mm) | Consolă Tecnosystemi TSMC 180 EVO (430 mm x 480 mm) | Consolă Tecnosystemi SPIRIT XS100 BASIC (440 mm x 430 mm) | Consolă Vecamco VS41 (450 mm x 400 mm) | Consolă Tecnosystemi SGL 140 EVO (475 mm x 400 mm) | Consolă Vecamco VS42 (600 mm x 400 mm) | Consolă BRA 2003 (650 mm x 390 mm) | |
| Legth horizontal x vertical x transverse brackets (mm) | 400 x 400 x 800 | 430 x 400 x 750 | 430 x 480 x 750 | 440 x 430 x - | 450 x 400 x - | 475 x 400 x 750 | 600 x 400 x - | 650 x 390 x - | |
| Legth main bracket (mm) | 400 | 430 | 430 | 440 | 450 | 475 | 600 | 650 | |
| Maximum loading (kg) | 90 | 100 | 180 | 100 | 110 | 140 | 150 | 200 | |
| Bracket material thickness (mm) | 1.5 | 1.5 | 2.2 | 130 ÷ 310 | 1.5 | 1.9 | 2.0 | 2.0 | |
| Colour | RAL 9002 (albă/white) | RAL 9002 (albă/white) | RAL 9002 (albă/white) | fildes (ivoire) | RAL 9002 (albă/white) | RAL 9002 (albă/white) | RAL 9002 (albă/white) | RAL 9002 (albă/white) | |
| Weight (kg) | 3.9 | 3.05 | 4.9 | 1.2 | 2.6 | 3.4 | 4.2 | 5.77 | |
