Tecnosystemi TSTT 140 roof bracket (750 mm x 380 mm)

Consolă de acoperiș Tecnosystemi TSTT Consolă de acoperiș Tecnosystemi TSTT
qr Ai observat o eroare?

COD DTN

  • 431.53.1015

COD PRODUS

Solicită ofertă PDF

Roof bracket for mounting across the slope

  • Mounting zone: roof.
  • Galvanized sheet metal and exterior-grade polyester powder coating.
  • Angle adjustable in 10°-30° range.
  • Standard and special accessories included. Sliding anti-vibration Noshock kit & built-in spirit level supplied.
  • Maximim loading: 140 kg.

Specificații

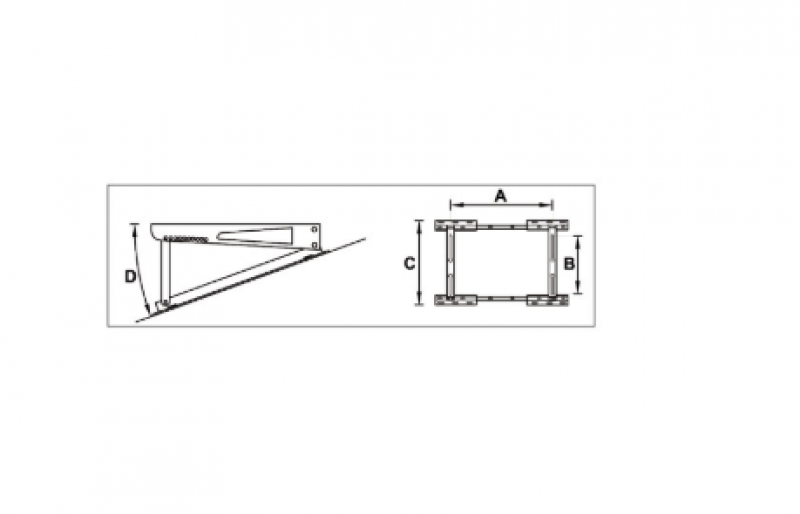

  • Legth horizontal x vertical x transverse brackets 750 x 380 x 500 mm
  • Legth main bracket 750 mm
  • Maximum loading 140 kg
  • Bracket material thickness 2.0 mm
  • Colour RAL 9002 (albă/white)
  • Weight 6.81 kg

Tabel comparativ

Roof brackets for ACs
Modele Consolă de acoperiș DWG 02 1.8 (800 mm x 450 mm)Consolă de acoperiș DWG 01 1.8 (800 mm x 560 mm)Consolă de acoperiș Tecnosystemi TSTT 140 (750 mm x 380 mm)
Legth horizontal x vertical x transverse brackets (mm)800 x 450 x 450800 x 240 x 560750 x 380 x 500
Legth main bracket (mm)800800750
Maximum loading (kg)80140140
Bracket material thickness (mm)2.52.52.0
ColourRAL 9002 (albă/white)RAL 9002 (albă/white)RAL 9002 (albă/white)
Weight (kg)4.676.56.81
