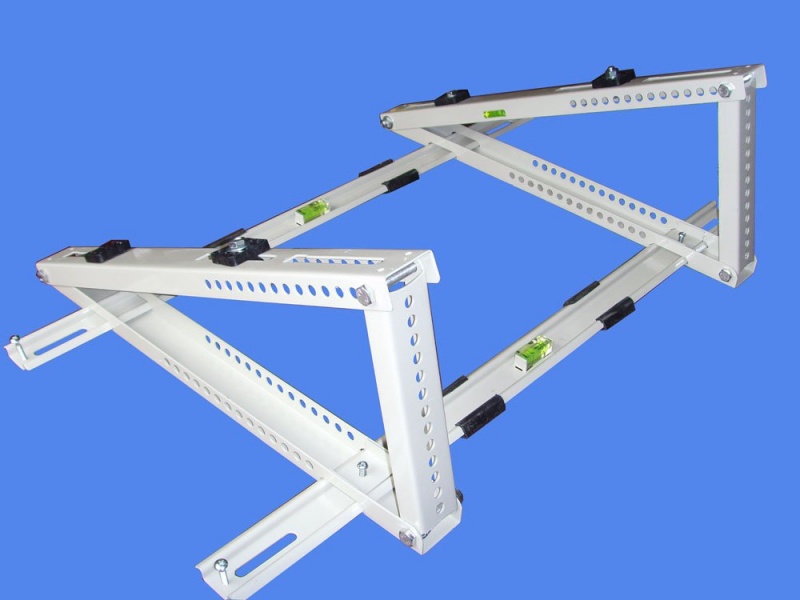

| Roof brackets for ACs | ||||
|---|---|---|---|---|

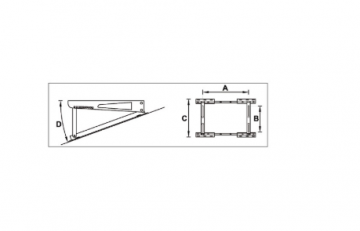

| Modele | Consolă de acoperiș DWG 02 1.8 (800 mm x 450 mm) | Consolă de acoperiș DWG 01 1.8 (800 mm x 560 mm) | Consolă de acoperiș Tecnosystemi TSTT 140 (750 mm x 380 mm) | |

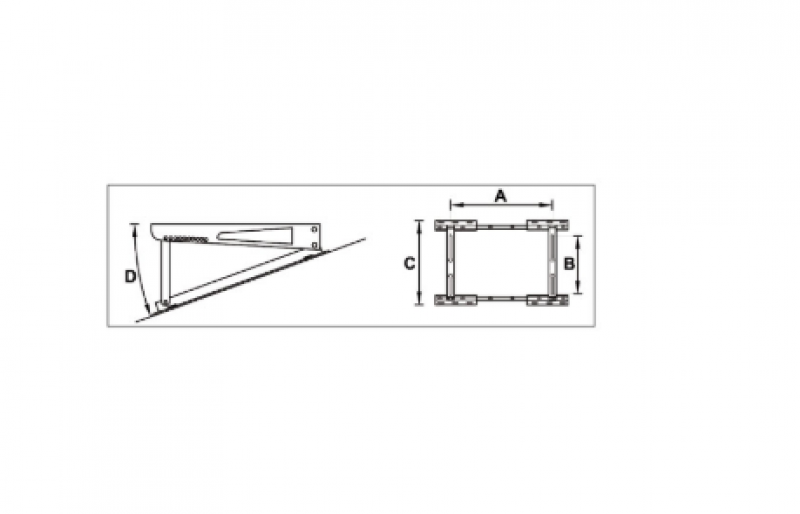

| Legth horizontal x vertical x transverse brackets (mm) | 800 x 450 x 450 | 800 x 240 x 560 | 750 x 380 x 500 | |
| Legth main bracket (mm) | 800 | 800 | 750 | |
| Maximum loading (kg) | 80 | 140 | 140 | |
| Bracket material thickness (mm) | 2.5 | 2.5 | 2.0 | |
| Colour | RAL 9002 (albă/white) | RAL 9002 (albă/white) | RAL 9002 (albă/white) | |
| Weight (kg) | 4.67 | 6.5 | 6.81 | |
