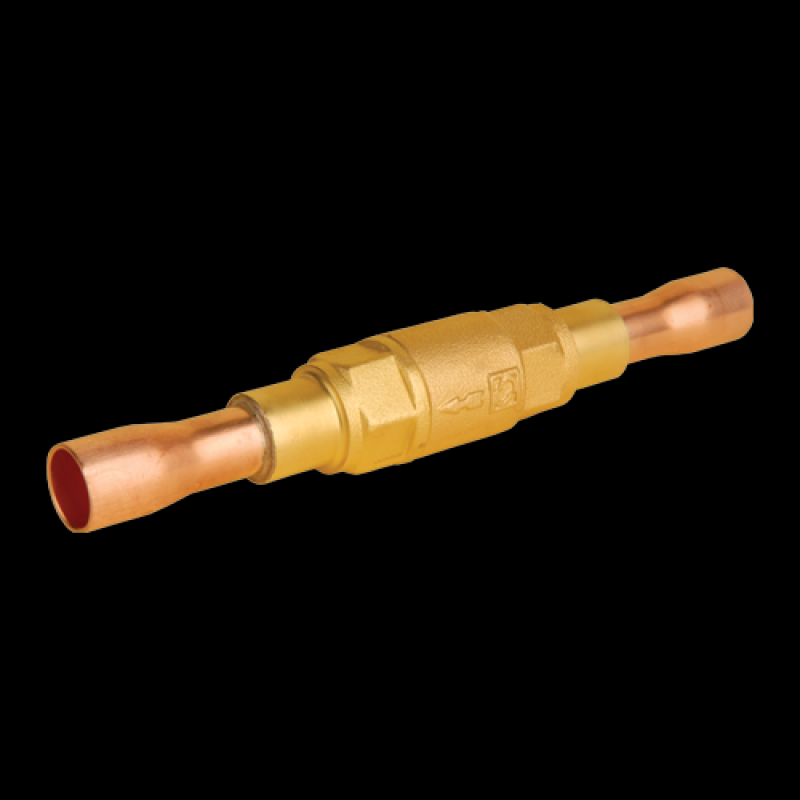

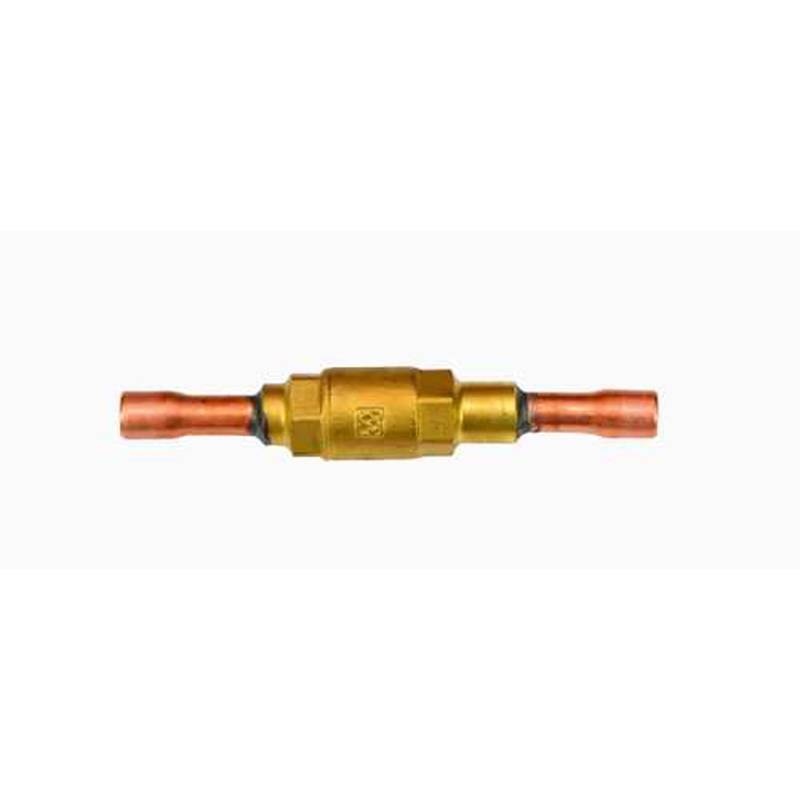

Castel Straightway check valve 3132/5

Ventil unisens drept CastelVentil unisens drept Castel
qr Ai observat o eroare?

COD DTN

  • 209.14.1315

COD PRODUS

Solicită ofertă PDF

Solder connection

  • The valves can be installed in any section of a refrigerating system, where it is necessary to avoid an inversion of the refrigerating flow.
  • They are designed for installation on commercial refrigerating systems and on civil and industrial conditioning plants, which use refrigerant fluids proper to the Group II.

Specificații

  • Equal connections (") 5/8 "
  • Equal connection (mm) 16 mm
  • Connection sudabilă (solder)
  • Inlet x out. connections
    • inch : 5/8 X 5/8
    • mm : 16 x 16
  • Min. pressure drop 0,1 bar

Tabel comparativ

Castel straightway check valves
Modele ConnectionInlet x out. connectionsMin. pressure drop (bar)
inchmm
3132/2sudabilă (solder)1/4 x 1/4-0,1
3132/M10sudabilă (solder)-10 x 100,1
3132/M12sudabilă (solder)-12 x 120,1
3132/5sudabilă (solder)5/8 X 5/816 x 160,1
3132/M18sudabilă (solder)-18 x 180,1
3132/7sudabilă (solder)-22 x 220,1
3142/M28sudabilă (solder)-28 x 280,1
3142/11sudabilă (solder)-35 x 350,1
