Cubigel condensing unit CGL90TB (R134a)

Agregat frigorific Cubigel R134a refrigerareAgregat frigorific Cubigel CGL90TB (R134a)
qr Did you notice an error?

PRODUCT CODE

Offer request PDF

Cubigel condensing unit (ACC): medium and positive temperatures, 437 W, 8.85 cm³, 134a, 230V

  • Cubigel condensing unit with medium and positive temperature applications (MHBP).
  • Cubigel CGL90TB with high reliability and high quality components.
  • Applications: 437 W unit for refrigerated display cases or small cold rooms.
  • Single phase power supply, 230V.
  • Easy installation.
  • Designed to operate up to tropical temperatures of 43°C.

Specifications

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application MBP, HBP
  • Refrigerant R134a
  • Weight 18.5 kg
  • Displacement 8.85 cm³
  • Max. ambience temp. 43 °C
  • Motor type CSIR
  • Cooling capacity [W] / Evapor. temp. [°C]
    • -40°C : - W
    • -30°C : - W
    • -25°C : 203 W
    • -23,3°C : 272 W
    • -20°C : 306 W
    • -15°C : 341 W
    • -10°C : 437 W
    • -5°C : 533 W
    • 5°C : 780 W
    • 7,2°C : 842 W
    • 10°C : 942 W
  • Connection (suction) 3/8 "
  • Connection (discharge) 1/4 "

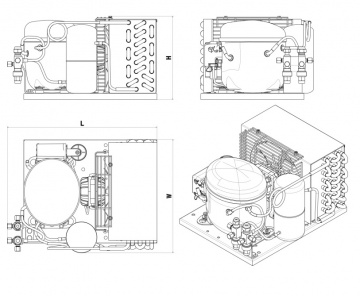

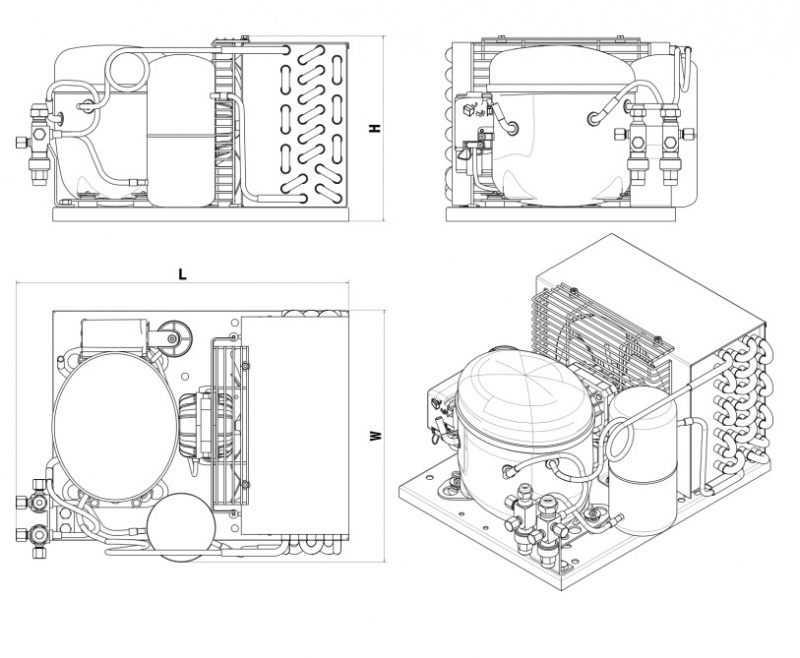

  • Net dimensions (WxDxH) 340 x 425 x 235 mm

Comparative table

Cubigel HMBP (R134a)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity [W] / Evapor. temp. [°C] (W)
-40°C-30°C-25°C-23,3°C-20°C-15°C-10°C-5°C5°C7,2°C10°C
CGL45TB220-240/50/1MBP
HBP		4.50--108145164183234286416238491
CGL60TB220-240/50/1MBP
HBP		5.68--130181206232296361520558609
CGL80TB220-240/50/1MBP
HBP		7.57--166225255285363441636684747
CGL90TB220-240/50/1MBP
HBP		8.85--203272306341437533780842942
CGLY12RA220-240/50/1HBP10.7-----42254266297110481151
CGP14TB220-240/50/1MBP
HBP		14.17--292395446498638778113012171334
CGX21TB220-240/50/1MBP
HBP		20.72--4506046817599681178170718382012
CGS26TB220-240/50/1MBP
HBP		25.93--52475687298912651542218223352535
CGS30TB220-240/50/1MBP
HBP		29.95--6098711002113414721811264028433112
CGS34TB220-240/50/1MBP
HBP		34.42--6869841133128316371992281330093266
