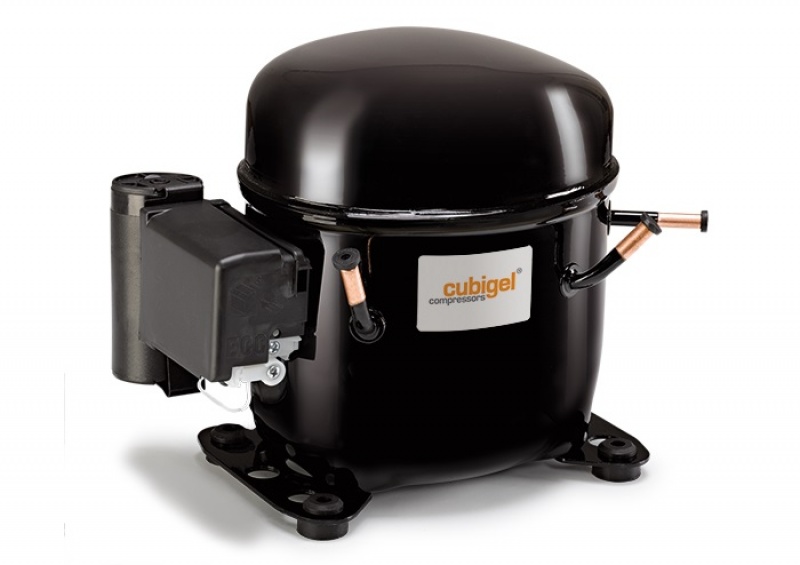

Cubigel HPY12AA compressor (R600a)

Solicită ofertă PDF

Cubigel (ACC) hermetic compressor for freezing, 230V

Application for low temperatures (LBP).
Natural refrigerant: isobutane (R600a).
High efficiency version.
Used for household refrigerators, bottle coolers and freezers, can coolers, chest freezers, vending machines, ice cream freezers, beer dispensers, ice makers, soft drink dispensers, heat pump systems.
1 phase, 220-240V/50Hz.
Replaced by new model: HYE113MKU.

Cubigel LBP (R600a)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Cooling capacity [W] / Evapor. temp. [°C] (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	-40°C	-35°C	-30°C	-25°C	-15°C	-10°C	-5°C	5°C	7,2°C	10°C
L30CL	220-240/50/1	LBP	3.10	-	19	49	36	-	75	-	-	-	-
B35C	220-240/50/1	LBP	3.50	-	16	28	41		89	-	-	-	-
B43CB	220-240/50/1	LBP	4.30	-	29	39	51		108	-	-	-	-
B52CL	220-240/50/1	LBP	5.20	-	34	44	58		124	-	-	-	-
B60CBL	220-240/50/1	LBP	6.00	-	53	72	97	162	202	-	-	-	-
HLY70AA	220-240/50/1	LBP	6.65	-	42	59	80		162	-	-	-	-
HLY80AA	220-240/50/1	LBP	8.10	-	54	74	99		201	-	-	-	-
HLY90AA	220-240/50/1	LBP	9.09	-	64	84	109		230	-	-	-	-
HLY99AA	220-240/50/1	LBP	9.95	-	69	90	119		248	-	-	-	-
HYE113MKU	220-240/50/1	LBP	11.3	-	95	132	175	276	334	-	-	-	-
HYE131MKU	220-240/50/1	LBP	13.1	-	110	151	199	316	381	-	-	-	-
HPY12AA	220-240/50/1	LBP	12.10	-	78	107	144		300	-	-	-	-
