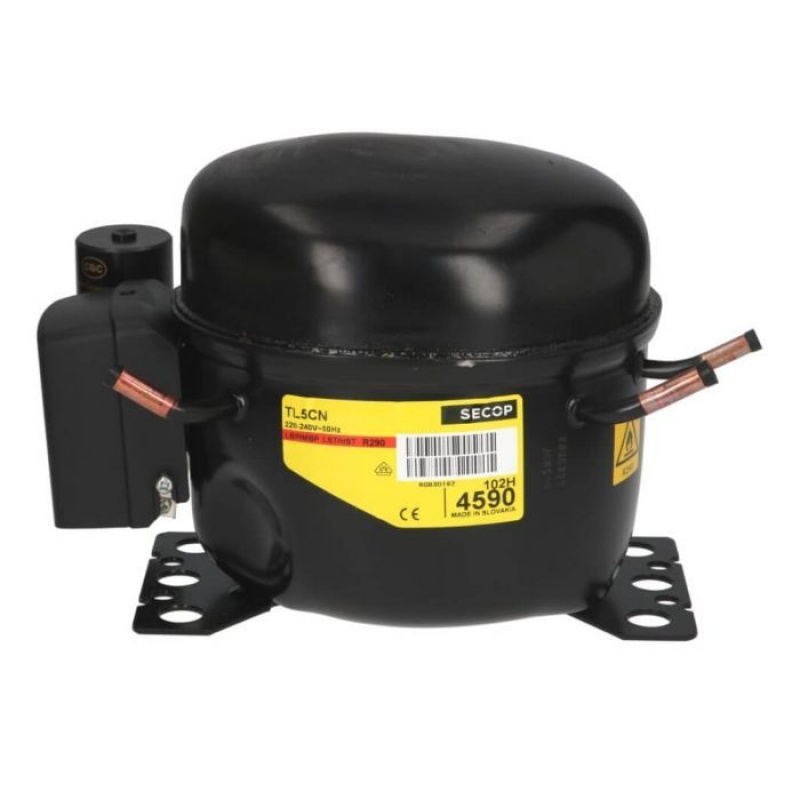

Danfoss-Secop TL5CN compressor (R290)

Solicită ofertă PDF

Secop single-phase motor (Danfoss) TL5CN, low and medium temperatures (LBP/MBP), 5.08 cm³, 162 W, R290

Attention: out of production, the model has been replaced by the KLF 4.8 CND.
Propane refrigeration compressor with applications for negative and medium temperatures (LBP/MBP): refrigerators/freezers, ice-making equipment, etc.
220V compressor on R290 with compact design, light weight and silent operation.
Compressor cooling capacity: 162 W at -30°C, 389 W at -10°C.
Single-phase compressor with small dimensions intended for installations with stable supply voltage.
Net weight: 7.5 kg.
Maximum height of TL 5 CN cold compressor: 173 mm.

Notes:

EN13215 RTG 20°C

Danfoss LBP (R290)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Cooling capacity (W)/Evaporating temp. (°C) (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	-40°C	-35°C	-30°C	-25°C	-15°C	-10°C	-5°C	0°C	5°C
KLF 4.0 CND	220-240/50/1	LBP MBP	4.00	-	95	129	163	254	315	376	451	515
KLF 4.8 CND	220-240/50/1	LBP MBP	4.80	112	148	195	241	370	459	548	658	800
TL 5 CN	220-240/50/1	LBP MBP	5.08	92	124	192	206	319	389	469	560	662
KLF 5.6 CND	220-240/50/1	LBP MBP	5.60	112	148	195	241	370	459	548	658	800
KLF 7.7 CND	220-240/50/1	LBP MBP	7.70	-	211.5	278	344	527	638	765	906	1100
SC 12 CNX	220-240/50/1	LBP MBP	12.87	178	250	331	426	678	846	1050	1293	1582
SC 15 CNX	220-240/50/1	LBP MBP	15.29	195	297	414	550	887		1328	1594	1894
SC 15 CNX.2	220-240/50/1	LBP	15.29	252	332	434	560	900	1120
SLV 15 CNK.2 Inverter	220-240/50/1	LBP	15.28	218	297	393	509	805	990	-	-	-
SC 18 CNX	220-240/50/1	LBP MBP	17.69	219	341	480	640	1033	1272	1543	1849	2193
SC 18 CNX.2	220-240/50/1	LBP	17.69	244	384	531	689	1057	1273
SC 21 CNX.2	220-240/50/1	LBP	20.95	338	492	654	828	1233	1470
