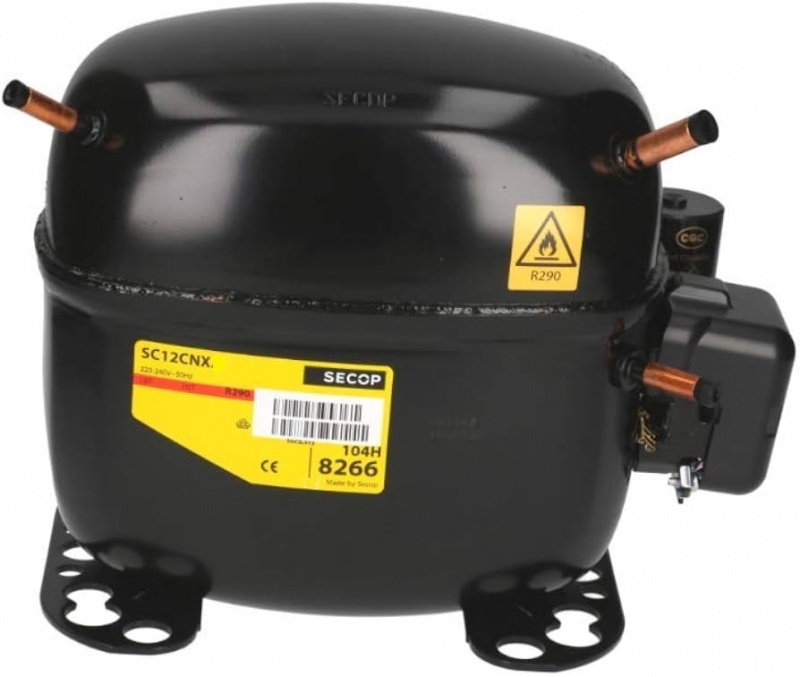

Danfoss-Secop SC 12 CNX compressor (R290)

Compresor Danfoss-Secop SC 12 CNX (R290)Motor monofazat Secop SC12CNX, congelare si temp. medii (LBP/MBP)
nou
qr Ai observat o eroare?

COD DTN

  • 101.18.0013

COD PRODUS

Solicită ofertă PDF

Secop SC12CNX single-phase motor, low and medium temp. (LBP/MBP), 12.87 cm³, 331 W, R290

  • SC12CNX propane refrigeration compressor with negative and medium temperature applications.
  • Applications: refrigerators/freezers, ice-making equipment, refrigerated display cases, etc.
  • 220V compressor on R290 with compact design, light weight and silent operation.
  • Compressor cooling capacity: 331 W at -30°C (Tc=45°C).
  • Single-phase compressor with compact dimensions for installations with stable supply voltage.
  • Net weight: 13.1 kg.

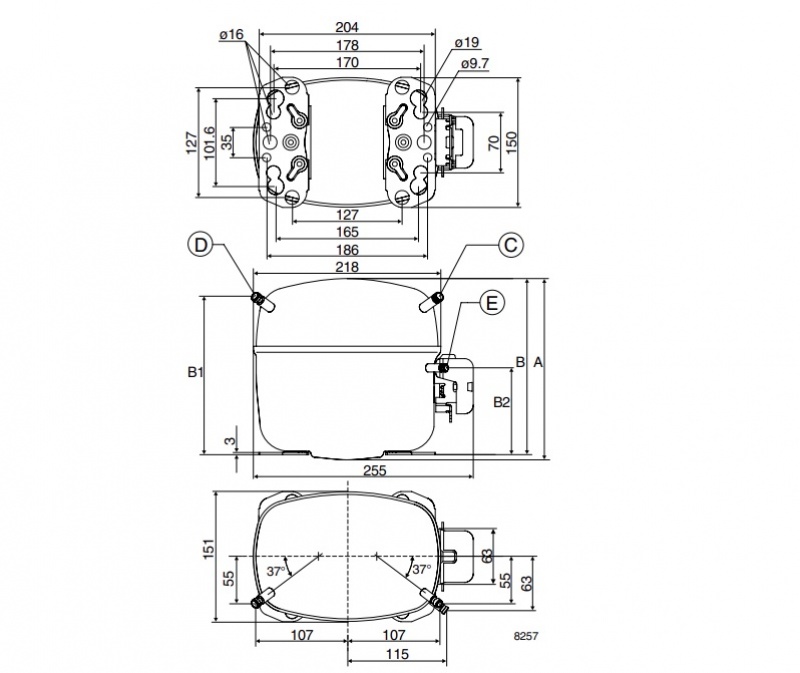

  • Danfoss SC12CNX cold compressor maximum height: 209 mm.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Application LBP, MBP
  • Refrigerant R290
  • Displacement 12.87 cm³
  • Cooling capacity (W)/Evaporating temp. (°C)
    • -40°C : 178 W
    • -35°C : 250 W
    • -30°C : 331 W
    • -25°C : 426 W
    • -15°C : 678 W
    • -10°C : 846 W
    • -5°C : 1050 W
    • 0°C : 1293 W
    • 5°C : 1582 W
Notes:
EN13215 RTG 20°C

Tabel comparativ

Danfoss LBP (R290)
Modele Power supply (V/Hz/Ph)ApplicationDisplacement (cm³)Cooling capacity (W)/Evaporating temp. (°C) (W)
-40°C-35°C-30°C-25°C-15°C-10°C-5°C0°C5°C
KLF 4.0 CND220-240/50/1LBP
MBP		4.00-95129163254315376451515
KLF 4.8 CND220-240/50/1LBP
MBP		4.80112148195241370459548658800
TL 5 CN220-240/50/1LBP
MBP		5.0892124192206319389469560662
KLF 5.6 CND220-240/50/1LBP
MBP		5.60112148195241370459548658800
KLF 7.7 CND220-240/50/1LBP
MBP		7.70-211.52783445276387659061100
SC 12 CNX220-240/50/1LBP
MBP		12.87178250331426678846105012931582
SC 15 CNX220-240/50/1LBP
MBP		15.29195297414550887132815941894
SC 15 CNX.2220-240/50/1LBP15.292523324345609001120
SLV 15 CNK.2 Inverter220-240/50/1LBP15.28218297393509805990---
SC 18 CNX220-240/50/1LBP
MBP		17.6921934148064010331272154318492193
SC 18 CNX.2220-240/50/1LBP17.6924438453168910571273
SC 21 CNX.2220-240/50/1LBP20.9533849265482812331470

Accesorii

R290 (370 g) refrigerant

R290 (370 g) refrigerant
