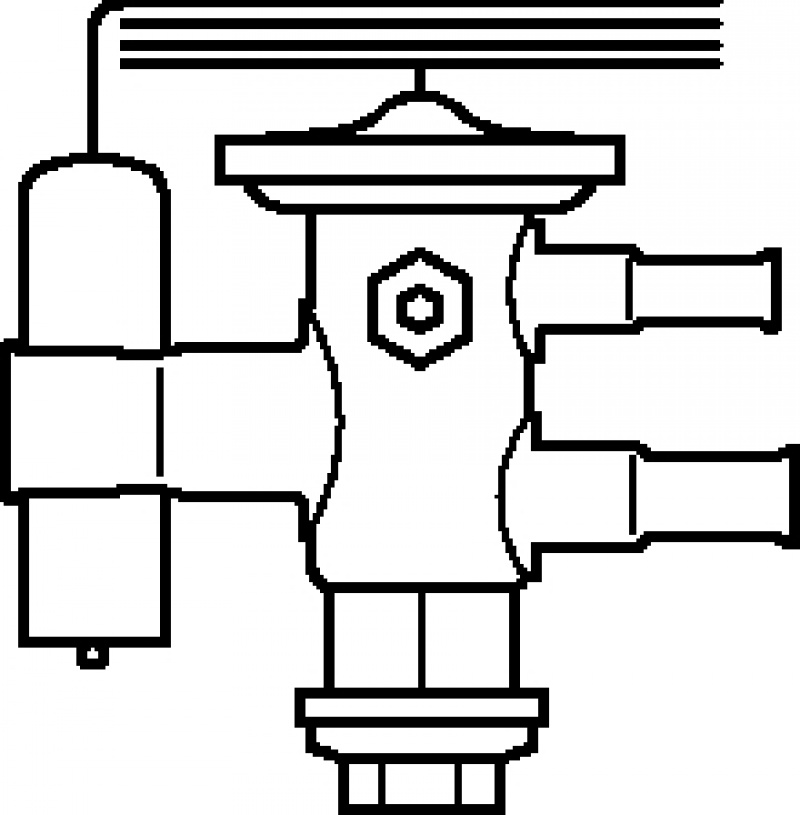

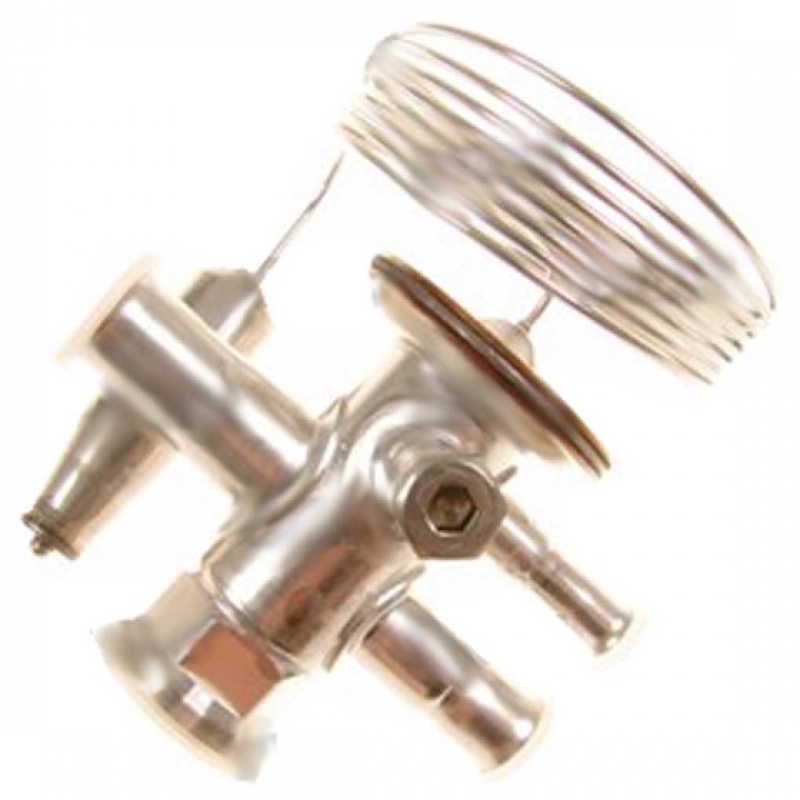

Danfoss thermostatic valve TUAE 068U2232

Ai observat o eroare?

COD PRODUS

TUAE 068U2232

068U2232

Solicită ofertă PDF

Thermostatic expansion valve, TUAE range

Pressure equalization: Externally equalized.
Thermostatic expansion valve regulates the injection of refrigerant liquid into evaporators.
Solder, ODF connections.

Specificații

Refrigerant R407C, R22
MOP Fără MOP (No MOP)
Domain N: -40°C...+10°C
Equalizer ext.
Capillary tube length 1,5 m
Inlet x out. connections
- mm : 6 x 12

Tabel comparativ

Danfoss thermostatic valves TUA/TUAE
Modele	Connection	Inlet x outlet	Nominal capacity (kW)	Refrigerant	MOP	Domain	Equalizer	Inlet x out. connections
Modele	Connection	Inlet x outlet	Nominal capacity (kW)	Refrigerant	MOP	Domain	Equalizer	mm
TUA 068U2230				R407C R22	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6 x 12
TUA 068U2238				R407C R22	MOP +15°C	N: -40°C...+10°C	int.	6 x 12
TUA 068U2231				R407C R22	Fără MOP (No MOP)	N: -40°C...+10°C	int.	10 x 12
TUA 068U2239				R407C R22	MOP +15°C	N: -40°C...+10°C	int.	10 x 12
TUAE 068U2232				R407C R22	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2240				R407C R22	MOP +15°C	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2233				R407C R22	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 12
TUAE 068U2241				R407C R22	MOP +15°C	N: -40°C...+10°C	ext.	10 x 12
TUA 068U2200				R134a R513A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6 x 12
TUA 068U2208				R134a R513A	MOP +15°C	N: -40°C...+10°C	int.	6 x 12
TUA 068U2201				R134a R513A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	10 x 12
TUA 068U2209				R134a R513A	MOP +15°C	N: -40°C...+10°C	int.	10 x 12
TUAE 068U2202				R134a R513A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2210				R134a R513A	MOP +15°C	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2203				R134a R513A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 12
TUAE 068U2211				R134a R513A	MOP +15°C	N: -40°C...+10°C	ext.	10 x 12
TUA 068U2280				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6 x 12
TUA 068U2288				R404A R507A	MOP +15°C	N: -40°C...+10°C	int.	6 x 12
TUA 068U2296				R404A R507A	MOP 0°C	NM: -40°C...-5°C	int.	6 x 12
TUA 068U2304				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	int.	6 x 12
TUA 068U2312				R404A R507A	MOP -20C	B: -60°C...-25°C	int.	6 x 12
TUA 068U2281				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	10 x 12
TUA 068U2289				R404A R507A	MOP +15°C	N: -40°C...+10°C	int.	10 x 12
TUA 068U2297				R404A R507A	MOP 0°C	NM: -40°C...-5°C	int.	10 x 12
TUA 068U2305				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	int.	10 x 12
TUA 068U2313				R404A R507A	MOP -20C	B: -60°C...-25°C	int.	10 x 12
TUAE 068U2282				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2290				R404A R507A	MOP +15°C	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2298				R404A R507A	MOP 0°C	NM: -40°C...-5°C	ext.	6 x 12
TUAE 068U2306				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	ext.	6 x 12
TUAE 068U2314				R404A R507A	MOP -20C	B: -60°C...-25°C	ext.	6 x 12
TUAE 068U2283				R404A R507A	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 12
TUAE 068U2291				R404A R507A	MOP +15°C	N: -40°C...+10°C	ext.	10 x 12
TUAE 068U2299				R404A R507A	MOP 0°C	NM: -40°C...-5°C	ext.	10 x 12
TUAE 068U2307				R404A R507A	Fără MOP (No MOP)	B: -60°C...-25°C	ext.	10 x 12
TUAE 068U2315				R404A R507A	MOP -20C	B: -60°C...-25°C	ext.	10 x 12
TUA 068U2320				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	6 x 12
TUA 068U2328				R407C	MOP +15°C	N: -40°C...+10°C	int.	6 x 12
TUA 068U2321				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	int.	10 x 12
TUA 068U2329				R407C	MOP +15°C	N: -40°C...+10°C	int.	10 x 12
TUAE 068U2322				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2330				R407C	MOP +15°C	N: -40°C...+10°C	ext.	6 x 12
TUAE 068U2323				R407C	Fără MOP (No MOP)	N: -40°C...+10°C	ext.	10 x 12
TUAE 068U2331				R407C	MOP +15°C	N: -40°C...+10°C	ext.	10 x 12
TUA 068U2780				R410A	Fără MOP (No MOP)	N: -40°C...+10°C	int.	10 x 12
TUA 068U2450				R410A	MOP -20C	N: -40°C...+10°C	int.	10 x 12
