ESR 20028 4-tubes static evaporator (2000x40x280mm)

nou

Solicită ofertă PDF

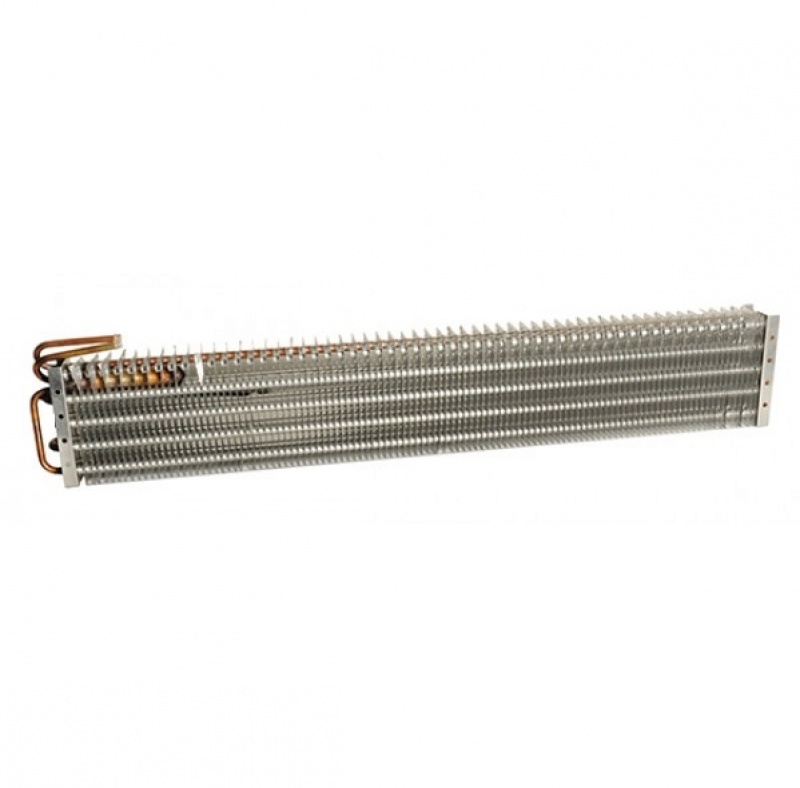

Rivacold static vaporizer with 4 pipes, 276W, ESR range, for showcases, laboratories and small cold rooms

This type of 4-tube static condenser is specifically designed for static cooling systems where the lack of mobility of the cooled air is essential.
Static cooling radiator with a capacity of Q = 0.276kW (dT = 10K).
Static refrigeration vaporizer made of aluminum slats and 4 side copper pipes.
Made in Italy.

Rivacold 4 tubes static evaporators
Modele	No. of total tubes	Dimensions (L x W x H) (mm)	Performance ΔT10°C (W)	Application area (m²)
ESR 5028	4	500 x 40 x 280	60	0.74
ESR 7028	4	700 x 40 x 280	89	1.09
ESR 9028	4	900 x 40 x 280	118	1.44
ESR 11028	4	1100 x 40 x 280	147	1.80
ESR 13028	4	1300 x 40 x 280	175	2.15
ESR 15028	4	1500 x 40 x 280	204	2.50
ESR 17028	4	1700 x 40 x 280	233	2.86
ESR 20028	4	2000 x 40 x 280	276	3.93
