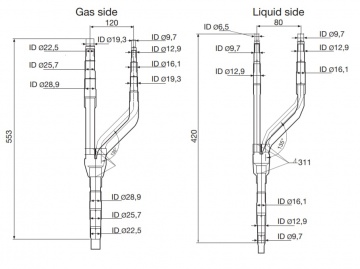

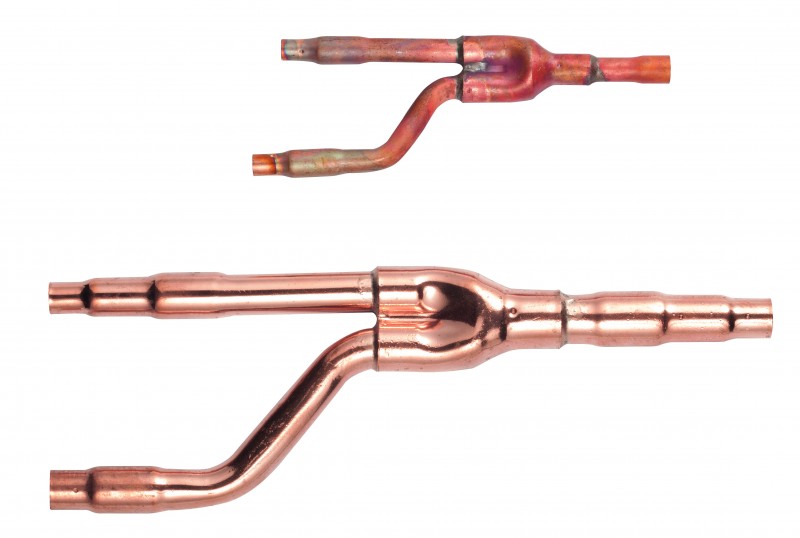

Y branch or Y-type manifold for Gree GMV industrial air conditioning systems, 30-70 kW
Y-type refnets for the areas of the VRF system in which there is a branch of the network of indoor air conditioning units networks.
Total capacity served: 30 kW < X ≤ 70 kW.
Equipping with auxiliary branch tubes with different diameters; if the diameter of the pipes in the system is different from the diameter of the refnet, the copper pipe can be cut in the middle area, according to the instructions.
Installation in horizontal or vertical position.
Suitable on both the gas distribution and the liquid distribution side.
Specificații
Total capacity of downstream IDU(s) C 30 < X ≤ 70 kW
