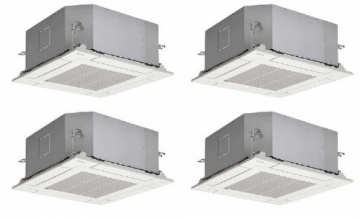

Indoor air conditioning unit Toshiba Compact Cassette 10000 BTU (R32)

Toshiba Compact Cassette indoor unit - cassette air conditioning, 570 x 570 mm main body, 2.7 / 4.0 kW, ceiling or false ceiling mounting, multi-splice destination

  • Toshiba compact box indoor air conditioning unit with the latest inverter technology.
  • Ceiling or ceiling mounting due to the compact shape of only 57x57 cm main body, 62x62 cm full panel dimensions.
  • Cassette air conditioning with elegant flat panel (only 12 mm thick), option for wall control and user presence sensor and condensate pump included.
  • The Toshiba Compact cassette can be connected to a multi-split outdoor unit that serves either other identical cassette units or other multi-range indoor air conditioning units (Toshiba wall units, floor units, duct units).
  • The installation is ideal for restaurants, shops, office buildings.
  • The opening angle of each grille can be set separately for 360 ° comfort of airflow, closing completely to provide visual discretion in off mode.
  • Optional for this central air conditioning: RBC-AXU31UM-E wall controller for programmed operation; infrared receiver and presence sensor.
  • Color: pure white.
  • Ultra low noise, self-cleaning function, functional 5-stage adaptive fan.
  • Energy efficiency class A ++ in cooling and heating mode.
  • Condensate pump integrated in each coffered ceiling unit.
  • Infrared controller with the following main settings: Off timer (0.5 to 12 hours), ON / OFF timer 24 hours, Automatic mode, Eco mode, Hi Power, Quiet, Preset, Comfort Sleep,
  • Automatic restart after a power failure.
  • Made in Thailand.

Specificații

  • Refrigerant R410A, R32
  • Power supply 220-240/50/1 V/Hz/Ph
  • BTU cooling 9200 BTU
  • BTU heating 13600 BTU
  • Cooling capacity 2.7 kW
  • Heating capacity 4.0 kW
  • Energy class C A++
  • Energy class H A++
  • EER/COP - W/W
  • SEER/SCOP - W/W
  • Air flow volume 590/430 m³/h
  • Sound pressure level
    • Răcire (cooling) : 30/37 db(A)
    • Încălzire (heating) : 30/37 db(A)
  • Sound power level 45/52 db(A)
  • Net dimensions IDU (WxDxH) 575 x 575 x 256 (panel: 620 x 620 x 12) mm
  • Net weight IDU 15 + 3 kg
  • Control Remote, Wired (optional)
  • ODU compatibility RAS-2M14U2AVG-E, RAS-2M18U2AVG-E, RAS-3M26U2AVG-E, RAS-4M27U2AVG-E, RAS-5M34U2AVG-E

Tabel comparativ

Indoor AC cassette units
Modele Compact Cassette 10000 BTUCompact Cassette 13000 BTUCompact Cassette 16000 BTU
RefrigerantR410A
R32
R410A
R32
R410A
R32
Power supply (V/Hz/Ph)220-240/50/1220-240/50/1220-240/50/1
BTU cooling (BTU)9200920015500
BTU heating (BTU)136001360018800
Cooling capacity (kW)2.73.74.5
Heating capacity (kW)4.05.05.5
Energy class CA++A++A++
Energy class HA++A++A++
Air flow volume (m³/h)590/430620/430680/450
Sound pressure level (db(A))Răcire (cooling)30/3733/3933/41
Încălzire (heating)30/3733/3932/41
Net dimensions IDU (WxDxH) (mm)575 x 575 x 256 (panel: 620 x 620 x 12)575 x 575 x 256 (panel: 620 x 620 x 12)575 x 575 x 256 (panel: 620 x 620 x 16)
Net weight IDU (kg)15 + 315 + 315 + 3
ControlRemote
Wired (optional)
Remote
Wired (optional)
Remote
Wired (optional)
ODU compatibility
RAS-3M18U2AVG-E
RAS-3M18U2AVG-E
