Indoor air conditioning unit Toshiba Edge 16000 BTU (R32)

4.6/5.5 kW professional wall-mounted air conditioning indoor unit, A +++, ultra-quiet, contemporary matte finish, ultra-comfortable indirect airflow, WiFi option. Multisplit destination

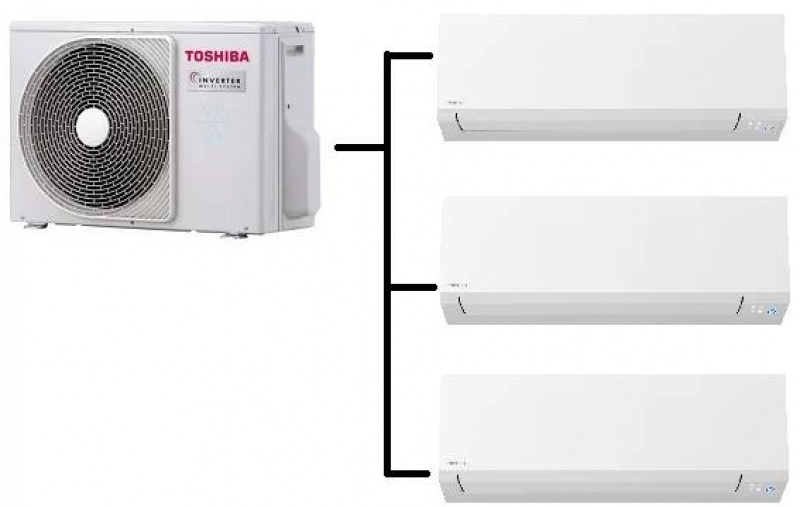

  • Toshiba Edge 16000 BTU - indoor air conditioning unit that gives you all the comfort you need from a dual split inverter air conditioning system or with multiple splitters needed for your air conditioning project.
  • You can decide with maximum flexibility the combination you need!
  • The split Edge indoor air conditioning unit is distinguished by superior energy class A +++, ultra-quietness (less than 19 db (A)), straight lines, contemporary matte finish, invisible pre-cut pipes, ultra-comfortable indirect airflow, WiFi option, eco-friendly freon R32.

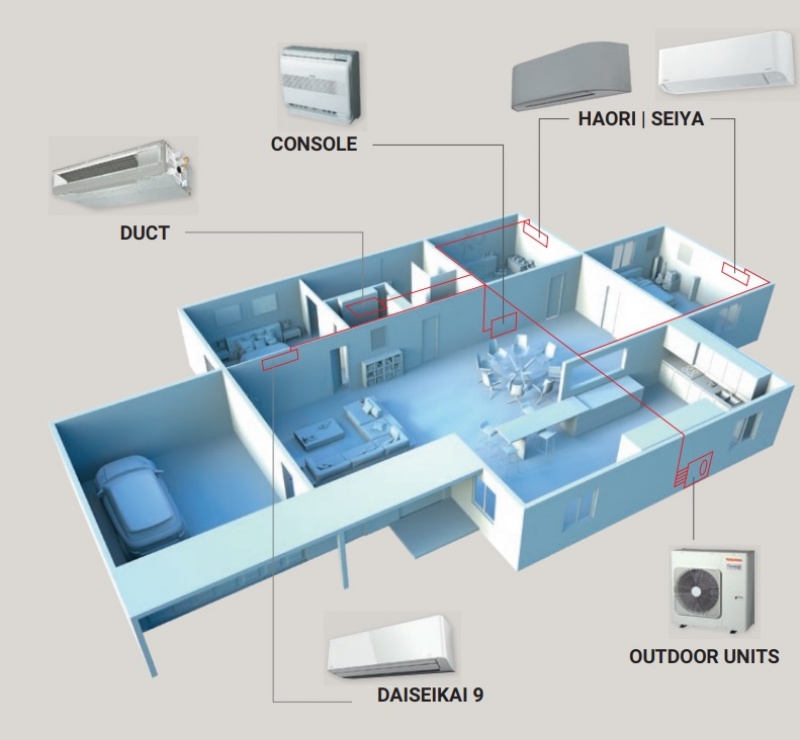

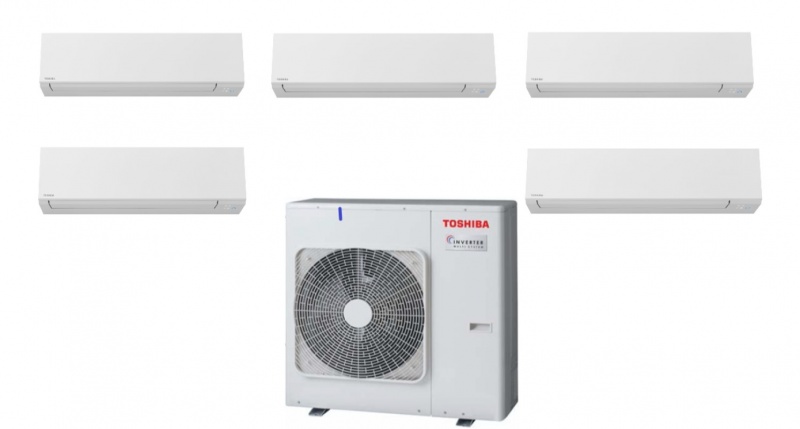

  • The Toshiba Edge indoor AC unit can be connected to an outdoor unit that serves either other identical AC units or other indoor multi-range air conditioning units (Toshiba floor / console units, duct units, cassette units).
  • Compact size and ultra-modern design based on Japanese technology.
  • The WiFi option can be integrated via the RB-N106S-G WiFi module developed by Toshiba air conditioning for intuitive control via the Toshiba Home AC Control App.

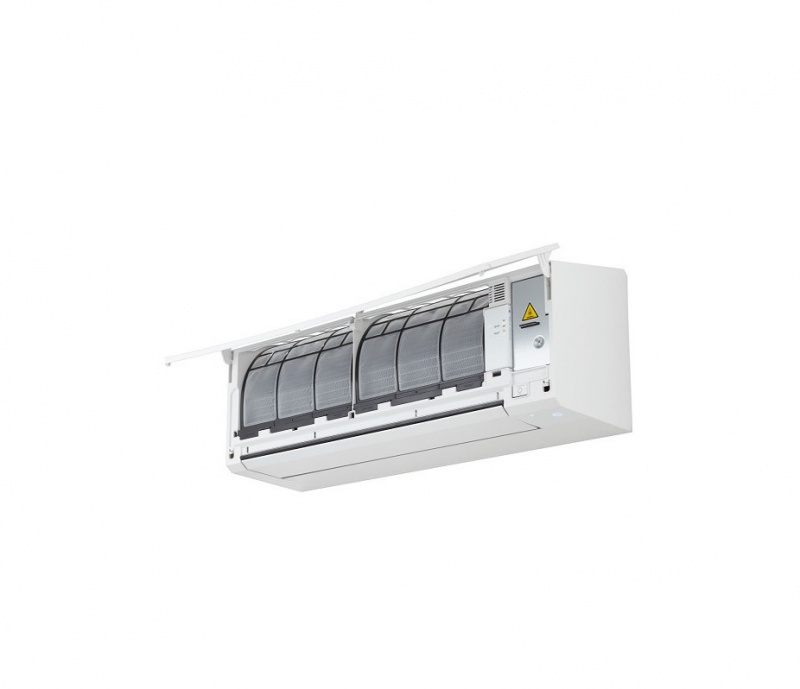

  • Special self-cleaning function to prevent the formation of mold and odors in the vaporizer (Coil Magic).
  • Made in Thailand.

Specificații

  • Refrigerant R32
  • Power supply 220-240/50/1 V/Hz/Ph
  • BTU cooling 15700 BTU
  • BTU heating 19000 BTU
  • Cooling capacity 4.6 kW
  • Heating capacity 5.5 kW
  • Energy class C A+++
  • Energy class H A+++
  • EER/COP 3.41/3.62 W/W
  • SEER/SCOP 7.8/4.6 W/W
  • Air flow volume 750 m³/h
  • Sound pressure level
    • Răcire (cooling) : 44/25 db(A)
    • Încălzire (heating) : 44/26 db(A)
  • Sound power level 57/38 db(A)
  • Net dimensions IDU (WxDxH) 800 x 226 x 293 mm
  • Net weight IDU 10 kg
  • Control Remote, Optional WiFi
  • ODU compatibility RAS-3M26U2AVG-E, RAS-4M27U2AVG-E, RAS-5M34U2AVG-E

Tabel comparativ

Toshiba Edge (R32)
Modele Toshiba Edge 10000 BTUToshiba Edge 13000 BTUToshiba Edge 16000 BTUToshiba Edge 22000 BTUToshiba Edge 24000 BTU
RefrigerantR32R32R32R32R32
Power supply (V/Hz/Ph)220-240/50/1220-240/50/1220-240/50/1220-240/50/1220-240/50/1
BTU cooling (BTU)850012000157002100024000
BTU heating (BTU)1100014500190002400027300
Cooling capacity (kW)2.53.54.66.17.0
Heating capacity (kW)3.24.25.57.08.0
Energy class CA+++A+++A+++A+++A+++
Energy class HA+++A+++A+++A+++A+++
Air flow volume (m³/h)60673275010321122
Sound pressure level (db(A))Răcire (cooling)40/2243/1944/2545/3447/35
Încălzire (heating)40/2243/1944/2646/3447/35
Net dimensions IDU (WxDxH) (mm)800 x 226 x 293800 x 226 x 293800 x 226 x 2931053 x 245 x 3201053 x 245 x 320
Net weight IDU (kg)1010101414
ControlRemote
Optional WiFi
Remote
Optional WiFi
Remote
Optional WiFi
Remote
Optional WiFi
Remote
Optional WiFi
ODU compatibility
RAS-3M18U2AVG-E
RAS-3M18U2AVG-E
RAS-3M18U2AVG-E
