Indoor unit AUX Cassette 18000 BTU - multisplit

nou

Solicită ofertă PDF

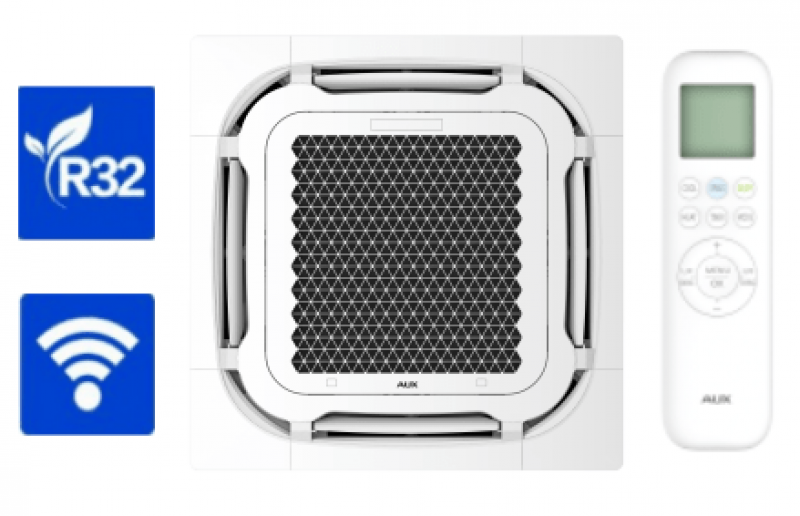

AUX Inverter 5.3 kW multisplit cassette air conditioner, 570 x 570 mm, WiFi, 4 m (360º) airflow

AUX Cassette Multi AUCA-H18/4DR3HYAB: 18000 BTU air conditioner, Inverter type, for AUX multisplit.

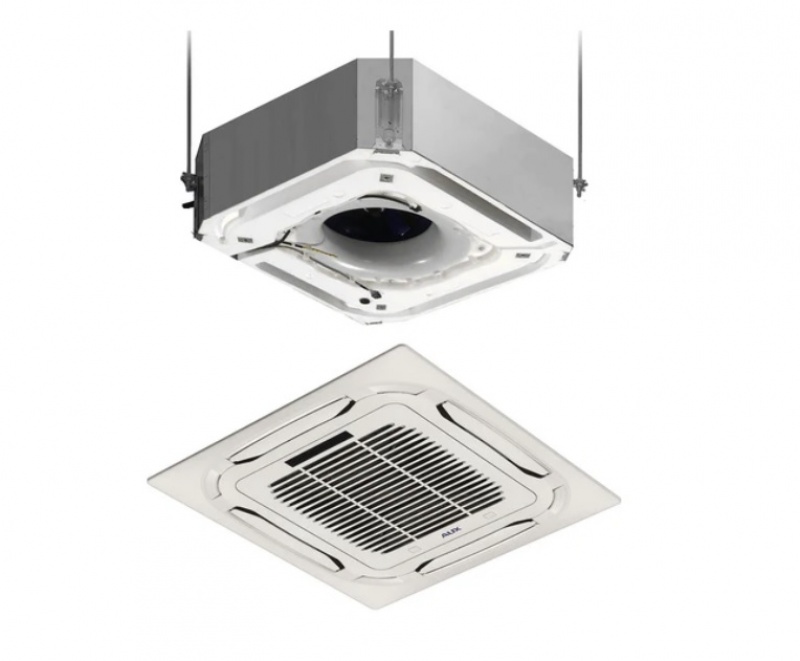

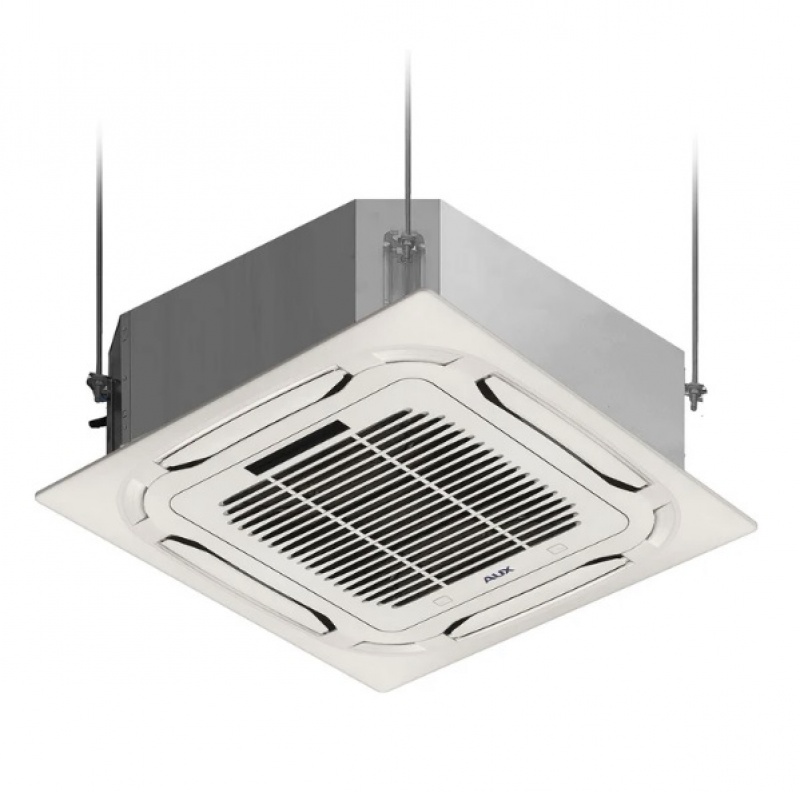

Indoor unit ceiling cassette air conditioner for air conditioning homes, offices, HoReCa spaces, halls.
Compact dimensions of only 570 x 570 x 260 mm.

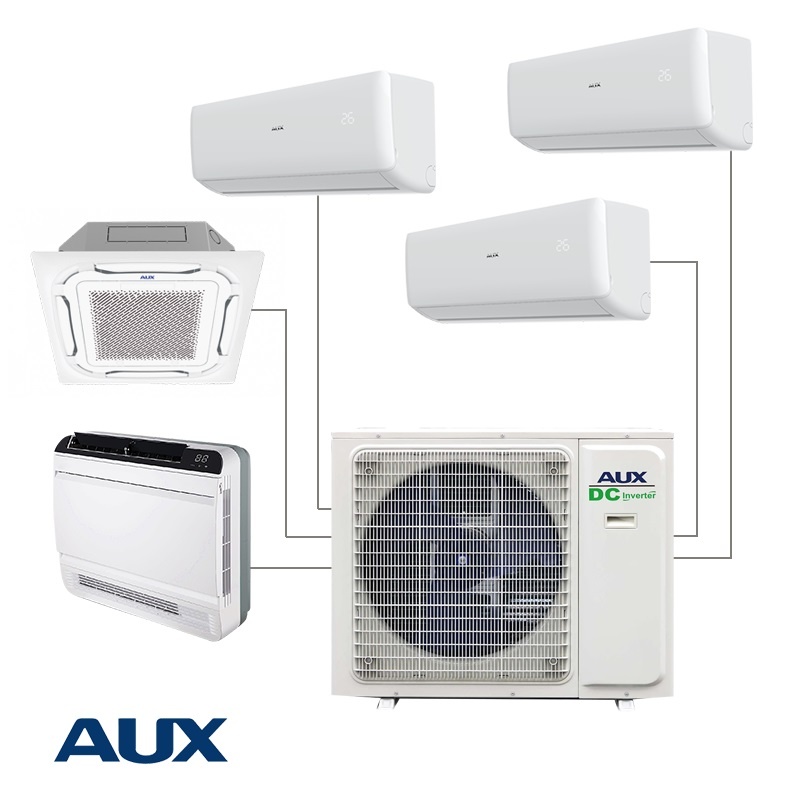

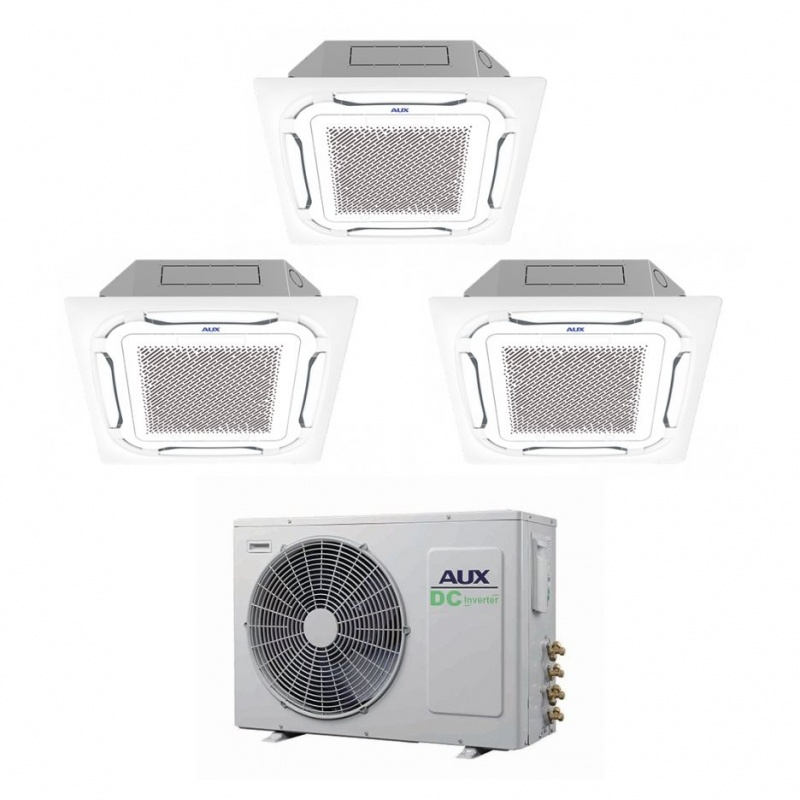

Addition for double split air conditioners or with multiple splitters (AUX Free Match Cassette or other combination).
Outdoor unit is purchased separately.
The AUX Cassette 18000 BTU model includes a 5-facet heat exchanger for increased heating/cooling efficiency.

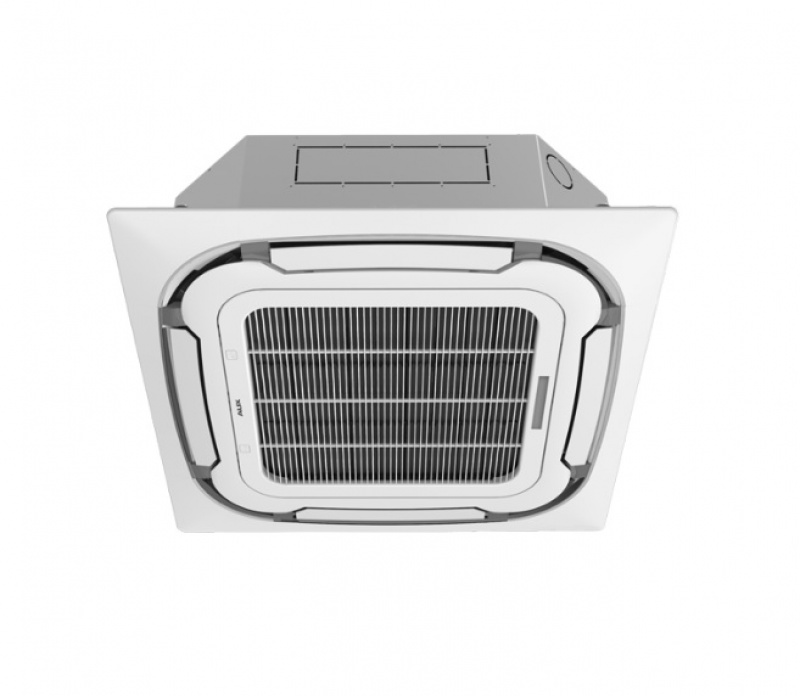

Cassette with 4 conditioned air outlet channels.
4-meter airflow with 360º diffusion.
AUX 5.3 kW cassette air conditioner with remarkable silence.
Generous air volume (530-700 m³/h) and various functions included, including for night and sleep.
Ideal installation in spaces with suspended ceilings.
Additional outlets in the corners of the panel allow air to be blown in all directions, eliminating dead angles.

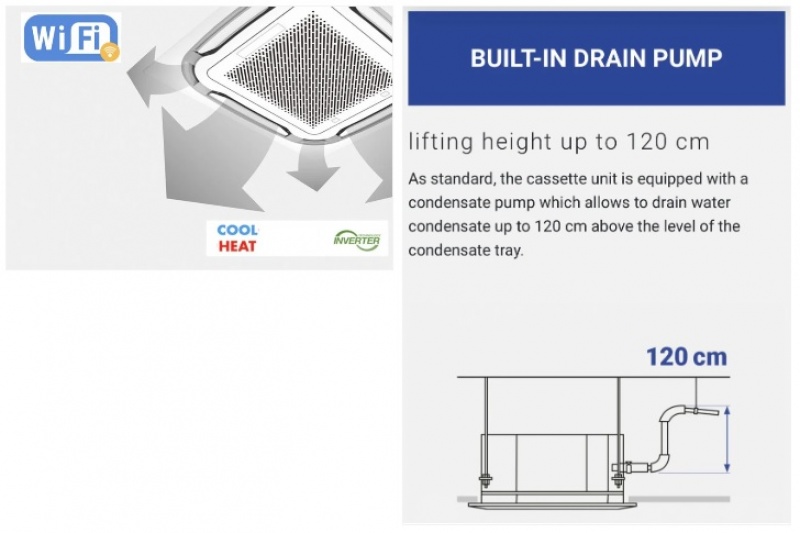

Each AUX cassette unit is equipped with a condensate pump, which allows condensate to be discharged up to 120 cm above the level of the condensate tray.

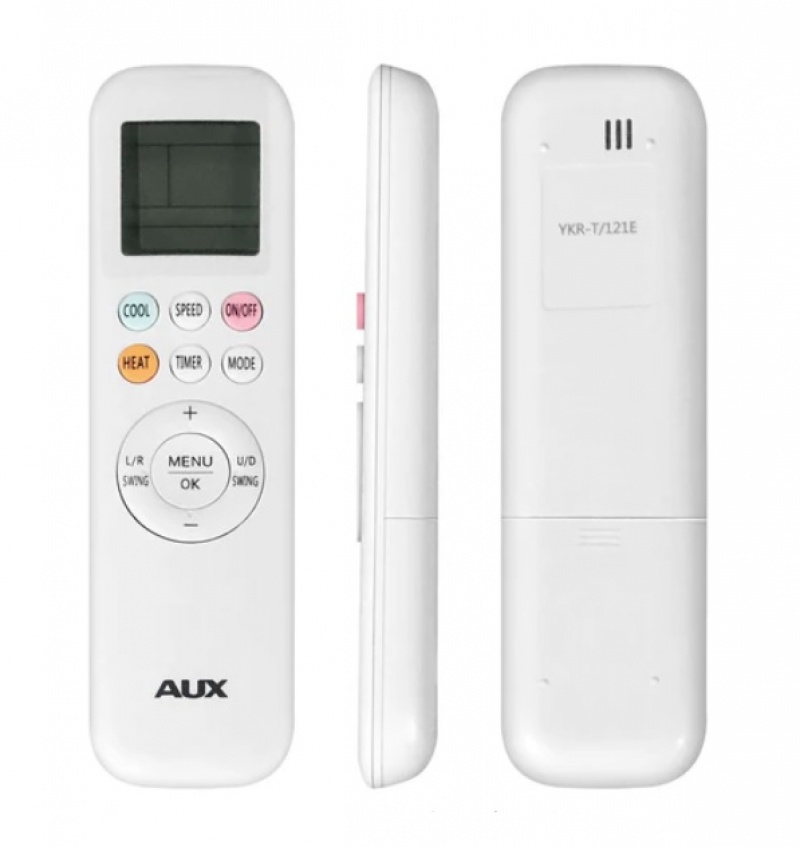

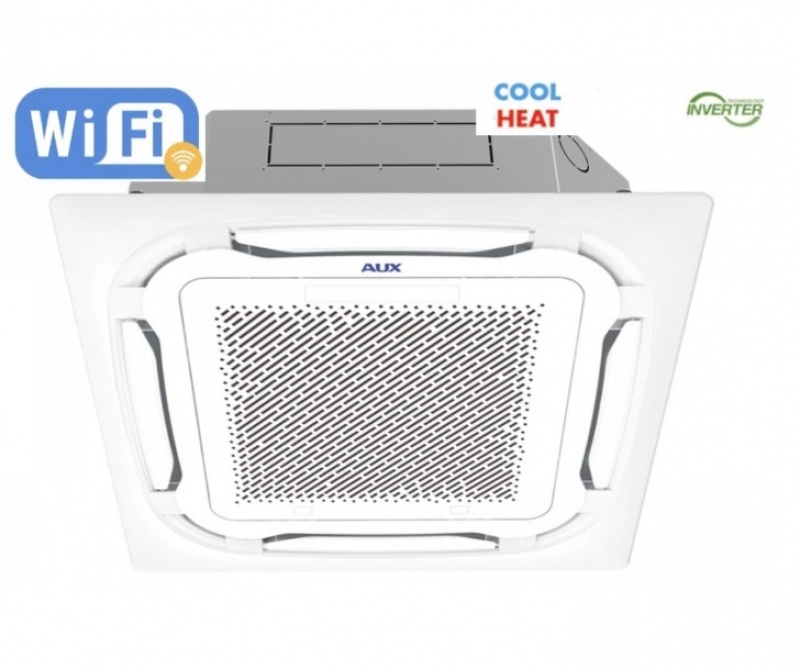

Multisplit air conditioning with IR and remote control (WiFi).

AUX cassette indoor units
Modele	AUX Cassette 9000 BTU Multisplit (R32)	AUX Cassette 12000 BTU Multisplit (R32)	AUX Cassette 18000 BTU Multisplit (R32)
BTU cooling (BTU)	9500	12000	18000
BTU heating (BTU)	10200	13000	19100
Cooling capacity (kW)	2.8	3.5	5.3
Heating capacity (kW)	3.0	3.8	5.6
Power supply (V/Hz/Ph)	220-240/50/1	220-240/50/1	220-240/50/1
Power consumption C (kW)	0.40	0.40	0.40
Power consumption H (kW)	0.40	0.40	0.40
SEER/SCOP (W/W)	8.5/4.6	8.5/4.6	8.8/4.6
EER/COP (W/W)	4.3/4.72	4.02/3.96	3.27/3.61
Energy class C	A++	A++	A++
Energy class H	A++	A++	A++
Indoor unit (IDU)	▼	▼	▼
Sound pressure level IDU (M) (db(A))	32	32	32
Sound power level IDU (M) (db(A))	52	52	52
Net dimensions IDU (WxDxH) (mm)	570 x 570 x 260 (panel: 650 x 650 x 55)	570 x 570 x 260 (panel: 650 x 650 x 55)	570 x 570 x 260 (panel: 650 x 650 x 55)
Net weight IDU (kg)	14.5	14.5	14.5
Outdoor unit (ODU)	▼	▼	▼
Sound pressure level ODU (M) (dB(A))	-	-	-
Sound power level OU (M) (dB(A))	-	-	-
Net dimensions ODU (WxDxH) (mm)	-	-	-
Net weight ODU (kg)	-	-	-
Piping connection liquid (mm)	-	-	-
Piping connection gas (mm)	-	-	-
Max. distance lenght (m)	-	-	-
Max. distance height (m)	-	-	-
Refrigerant charge (kg)	-	-	-
Operation ambient temp. range C (°C)	- → -	- → -	- → -
Operation ambient temp. range H (°C)	- → -	- → -	- → -
Control	Remote WI-FI Wired (optional)	Remote WI-FI Wired (optional)	Remote WI-FI Wired (optional)
