REC 190100 20-tubes static evaporator (1900x128x972mm)

Vaporizator static 20 tevi REC Rivacold
nou
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Rivacold static vaporizer with 20 pipes, 2490W, REC range, for showcases, laboratories and cold rooms

  • This type of 20-tube static condenser is specifically designed for static cooling systems where the lack of mobility of the cooled air is essential.
  • Static cooling radiator with a capacity of Q = 2,490kW (dT = 10K).
  • Static refrigeration vaporizer made of aluminum slats and 20 side copper pipes.
  • Made in Italy.

Specificații

  • No. of total tubes 20
  • Length 1900 m

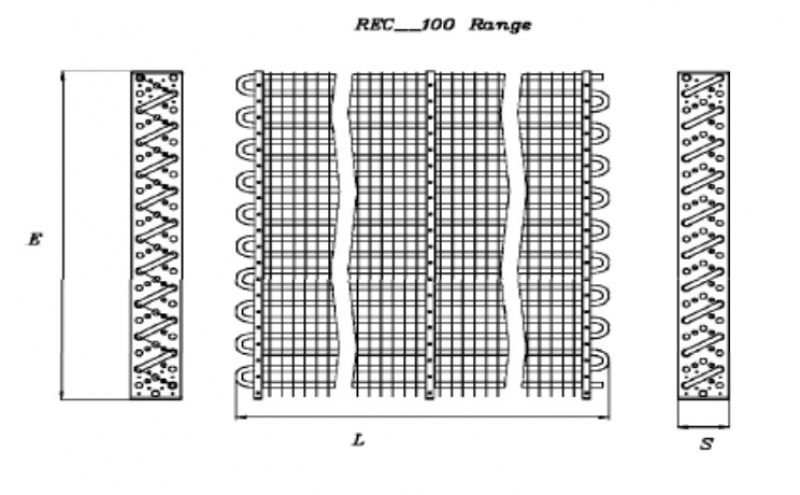

  • Dimensions (L x W x H) 1900 x 128 x 972 mm
  • Performance ΔT10°C 2490.4 W
  • Fin spacing 13 mm
  • Application area 31.13 m²

Tabel comparativ

Rivacold 20 tubes static evaporators
Modele No. of total tubesDimensions (L x W x H) (mm)Performance ΔT10°C (W)Application area (m²)
33310220400 x 110 x 2452662.21
33310320700 x 110 x 2455714.2
33310420800 x 110 x 2456874.86
33310520900 x 110 x 2458015.52
333106201000 x 110 x 2459006.18
333107201100 x 110 x 24510016.84
333111201500 x 110 x 24513589.49
333114202000 x 110 x 245183412.53
REC 5010020500 x 128 x 972520.86.51
REC 7010020700 x 128 x 972802.410.03
REC 130100201300 x 128 x 9721646.420.58
REC 150100201500 x 128 x 972192824.1
REC 170100201700 x 128 x 9722209.627.62
REC 190100201900 x 128 x 9722490.431.13
REC 210100202100 x 128 x 972277234.65
REC 230100202300 x 128 x 9723053.638.17
REC 250100202500 x 128 x 972335.241.69
REC 270100202700 x 128 x 9723616.845.21
