Roen Est CC.L.30.4.05-4M evaporator
Cubic type evaporator, with 300 mm type fan
- Ceiling cubic type evaporator for cold rooms.
- Applicability for low (negative) temperatures.
- Electrical defrost included.
- Application LBP
- Weight 56,0 kg
- Connections
- ref. (discharge) : 22
- asp. (suction) : 16
- Fan no. 4
- Drain connection 1 "
- Nominal cap.of evaporator
- ΔT8 : 7,09 kW
- ΔT10 : 10,00 kW
- Int. surface 29,0 m²
- Tube volume 10,7 dm³
- Electrical defrost 5,9 kW
- Fin spacing 8 mm
- Air flow of evaporator 4000 m³/h
- Power supply 220-240/50/1 V/Hz/Ph

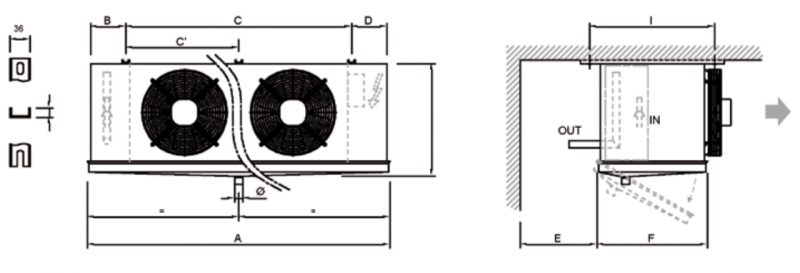

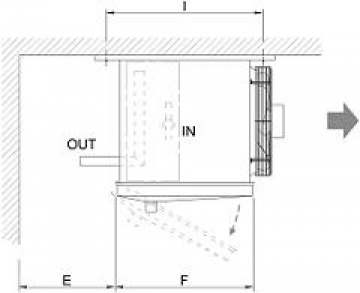

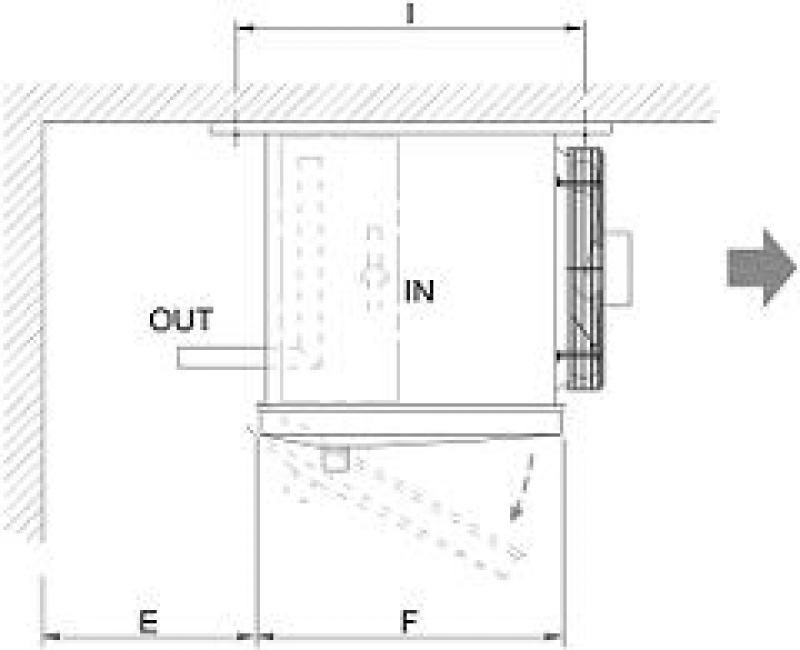

- Evaporator dimensions
- A : 2100 mm
- B : 130 mm
- C : 1820 mm
- D : 130 mm
- E : 400 mm
- F : 380 mm
- H : 410 mm
- I : 415 mm
- Air throw 10 m
| Cubic-300 mm type evaporators (LBP) |
| Modele |
Fan no. | Nominal cap.of evaporator (kW) | Int. surface (m²) | Electrical defrost (kW) | Fin spacing (mm) | Air flow of evaporator (m³/h) | Power supply (V/Hz/Ph) | Air throw (m) |
| ΔT8 | ΔT10 |
| CC.L.30.1.04-4M | 1 | 1,48 | 1,90 | 6,0 | 1,5 | 8 | 1050 | 220-240/50/1 | 11 |
| CC.L.30.1.05-4M | 1 | 1,65 | 2,31 | 7,5 | 1,5 | 8 | 1000 | 220-240/50/1 | 10 |
| CC.L.30.1.06-4M | 1 | 1,84 | 2,50 | 9,0 | 1,9 | 8 | 950 | 220-240/50/1 | 10 |
| CC.L.30.2.04-4M | 2 | 1,84 | 2,50 | 9,0 | 1,9 | 8 | 950 | 220-240/50/1 | 10 |
| CC.L.30.2.05-4M | 2 | 3,44 | 4,80 | 15,0 | 2,8 | 8 | 2000 | 220-240/50/1 | 10 |
| CC.L.30.2.06-4M | 2 | 3,93 | 5,50 | 18,0 | 3,5 | 8 | 1900 | 220-240/50/1 | 10 |
| CC.L.30.3.04-4M | 3 | 4,55 | 6,20 | 18,0 | 4,4 | 8 | 3150 | 220-240/50/1 | 11 |
| CC.L.30.3.05-4M | 3 | 4,55 | 6,20 | 22,0 | 4,4 | 8 | 3000 | 220-240/50/1 | 10 |
| CC.L.30.3.06-4M | 3 | 5,89 | 8,25 | 26,0 | 5,5 | 8 | 2850 | 220-240/50/1 | 10 |
| CC.L.30.4.04-4M | 4 | 6,08 | 8,51 | 24,0 | 5,9 | 8 | 4200 | 220-240/50/1 | 11 |
| CC.L.30.4.05-4M | 4 | 7,09 | 10,00 | 29,0 | 5,9 | 8 | 4000 | 220-240/50/1 | 10 |
| CC.L.30.4.06-4M | 4 | 7,92 | 11,09 | 35,0 | 7,4 | 8 | 3800 | 220-240/50/1 | 10 |
| CC.L.30.5.04-4M | 5 | 7,62 | 10,67 | 29,0 | 7,4 | 8 | 5250 | 220-240/50/1 | 11 |
| CC.L.30.5.05-4M | 5 | 8,87 | 12,42 | 36,0 | 7,4 | 8 | 5000 | 220-240/50/1 | 10 |
| CC.L.30.5.06-4M | 5 | 9,91 | 14,00 | 44,0 | 9,2 | 8 | 4750 | 220-240/50/1 | 10 |
