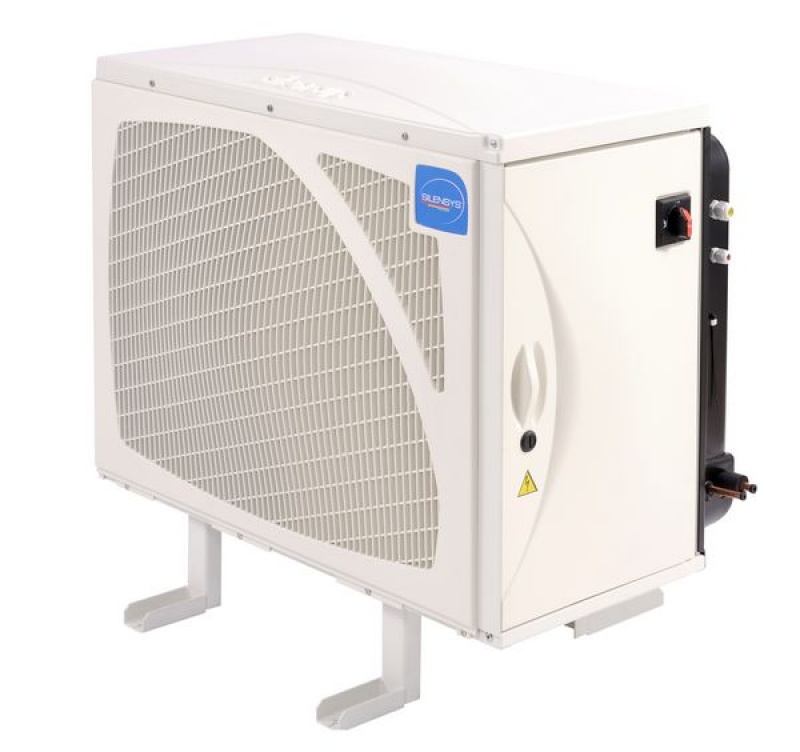

Silent type condensing unit Silensys SILAG2519ZTZ (380V)

Solicită ofertă PDF

Tecumseh cased condensing unit (LBP), 2.8 kW, R404A/R449A/R452A, 38 db(A), 380V

SILAG2519ZTZ cold room condensing unit with optimized anti-noise: 38 db(A) sound pressure (at 10 m).
Three-phase silent type condensing unit for commercial cooling - low temperatures.
Ideal for cold rooms of restaurants, hotels and shops located in noise sensitive areas.
Refined fan geometry for anti-noise effect.
Silent aggregate refrigerating power: 2816 W (R404A, at -30ºC, 32°C T.amb.).
HP/LP pressure switch with manual reset function.
Air flow: 2970 m³/h.

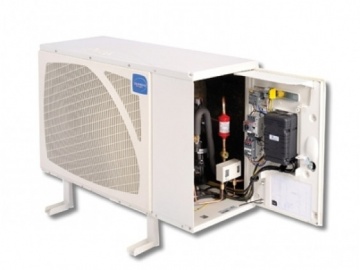

Freezing unit with piston compressor and sight glass located on the liquid tank.
Sound pressure steps: 38 db(A) at 10 m; 44 db(A) at 5 m; 58 db(a) at 1 m.
Refrigerating unit weight: 108 kg.

Silensys LBP (R404A)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Air flow volume (m³/h)	Connections		Sound pressure level (at 10 m) (db(A))	Sound pressure (at 1 m) (db(A))	Sound power level (db(A))	Cooling capacity [W] / Evapor. temp. [°C] (ambient. temp. of 32°C) (W)						Power input (kW)	Connections (inches)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Air flow volume (m³/h)	ref. (discharge)	asp. (suction)	Sound pressure level (at 10 m) (db(A))	Sound pressure (at 1 m) (db(A))	Sound power level (db(A))	-35°C	-30°C	-25°C	-20°C	-15°C	-10°C	Power input (kW)	ref. (discharge)	asp. (suction)
SILAJ2446ZFZ	220-240/50/1	LBP	26.2	1650	9.5	12.7	29	57	59 (1 m)	679	898	1150	1437	1758	2115	0.87	3/8	1/2
SILAJ2446ZTZ	380-400/50/3	LBP	26.2	1650	9.5	12.7	29	57	59 (1 m)	679	898	1150	1437	1758	2115	0.87	3/8	1/2
SILAJ2464ZFZ	220-240/50/1	LBP	34.5	1650	3/8	5/8	30	58	61 (1 m)	957	1251	1587	1962	2375	2820	0.88	3/8	5/8
SILAJ2464ZTZ	380-400/50/3	LBP	34.5	1650	3/8	5/8	30	58	61 (1 m)	956	1030	1330	1670	2060	2490	0.88	3/8	5/8
SILFH2480Z-XG	380-400/50/3	LBP	54.3	2700	3/8	5/8	33	58	67 (1 m)	1306	1420	1830	2300	2800	3340	1.22	3/8	5/8
SILFH2511ZTZ	380-400/50/3	LBP	74.2	2700	3/8	5/8	34	59	65 (1 m)	1684	1850	2440	3130	3910	4800	1.5	3/8	5/8
SILFH2511Z-XG	380-400/50/3	LBP	74.2	2700	9.5	15.9	39	59	70 (1 m)	1876	2550	3329	4211	5189	6251	2.2	3/8	5/8
SILAG2516ZTZ	380-400/50/3	LBP	112.5	5400	3/8	7/8	38	58	69 (1 m)	2410	2720	3640	4690	5900	7270	2,33	3/8	7/8
SILAG2519ZTZ	380-400/50/3	LBP	124.4	2970	1/2	7/8	38	58	69 (1 m)	2030	2816	3731	4769	5913	7153	2.55	1/2	7/8
SILAG2522ZTZ	380-400/50/3	LBP	134.8	5400	3/8	7/8	39	59	70 (1 m)	2986	3250	4250	5380	6650	8090	2,62	3/8	7/8
