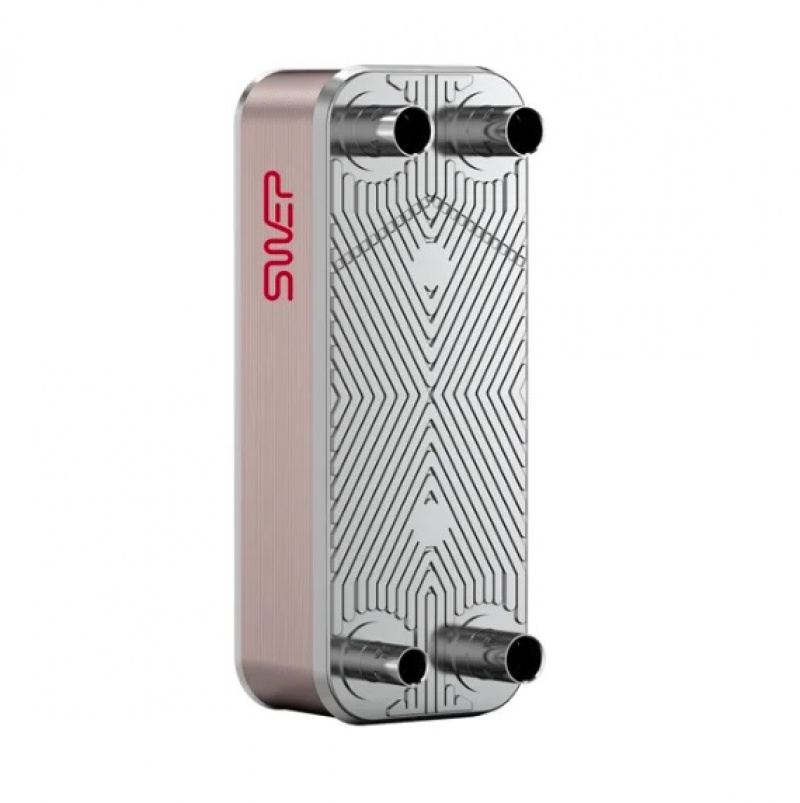

SWEP BX4T plate heat exchanger (1.2 m³/h)

SWEP heat exchanger for VRFs, BX4T range, flow rate 1.2 m³/h, max. 100 plates, < 40 kW

• SWEP BX4T heat exchanger for VRF and heat pump systems.
• Ideal for use in hotels, schools, office or retail buildings and hospitals.
• The BX4T will function as a subcooler to reduce the temperature of the refrigerant, which will add stability to the system.
• Additional economizer function for the liquid piping system, to increase performance during extreme weather.
• Selectable capacity of max. 39 kW, max. 100 stainless steel plates, copper-brazed.
• The BX4T allows efficient heat exchange in applications with small flow rates and dimensions (1.2 m³/h, 75 mm width).

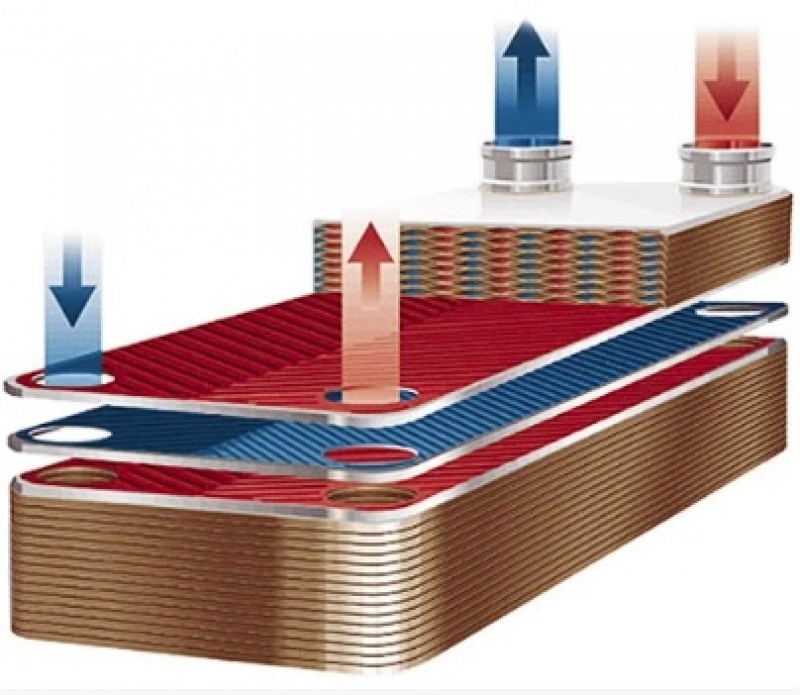

• Brazed plates for precise temperature approach on both the low and high temperature flow.
• The SWEP BX4T improves heat recovery, increasing the efficiency of the entire system.
• Suitable for high pressure refrigerants such as: R410A and R32.

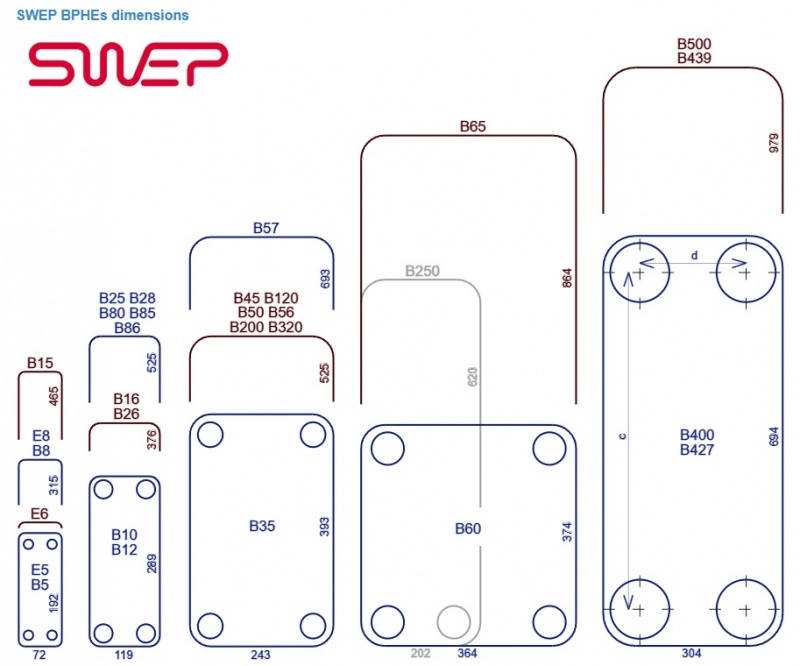

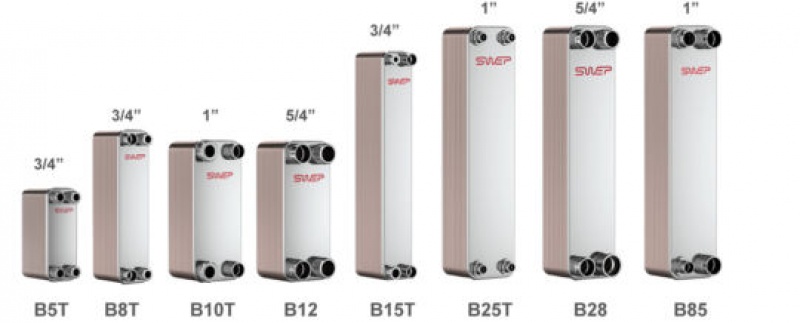

• BX4T is part of the SWEP BPHE (Brazed Plate Heat Exchangers) category.
• The final product code will result depending on the number of plates and other specifications selected by the customer
