COD PRODUS

Aux AI Therma Monobloc 6 kW

ACHP-H06/4R2HA-M 230V

Solicită ofertă PDF

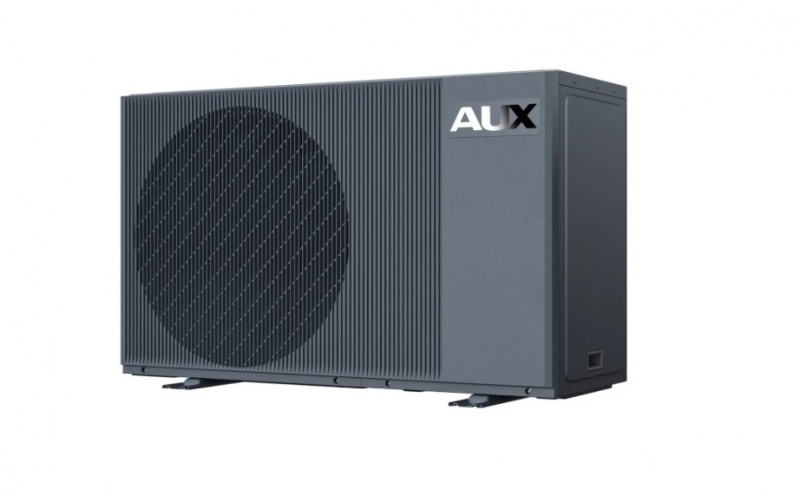

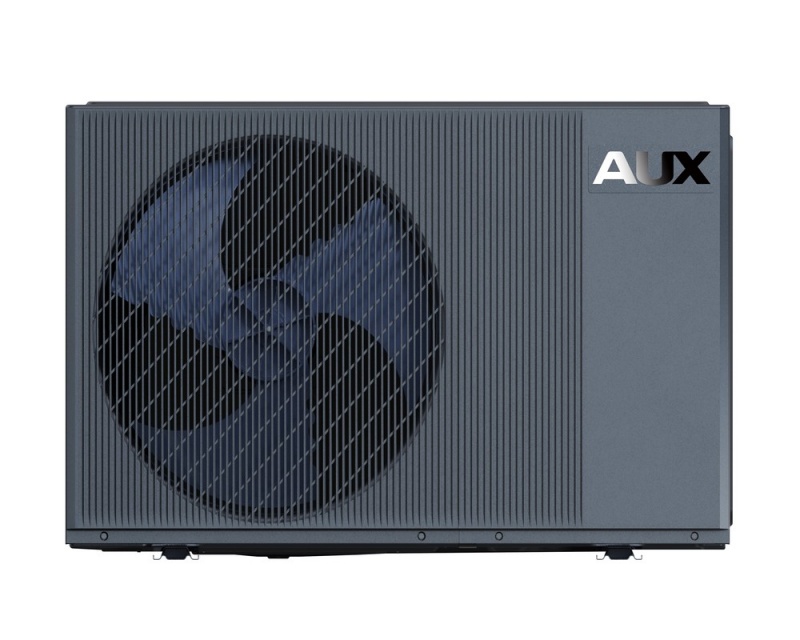

2-in-1 heat pump for home heating and cooling: Aux AI Therma Monobloc A+++, 6 kW, 230V, natural refrigerant R290

Aux AI Therma Monobloc heat pump 6 kW (R290) with maximum energy efficiency: A+++.
Provides water at temperatures of 35°C and 55°C, with a minimum noise level: 35 dB(A) at 3 meters away.
Heating of 6.35 kW, cooling of 6.8 kW.
100% performance down to -7°C - watch video.

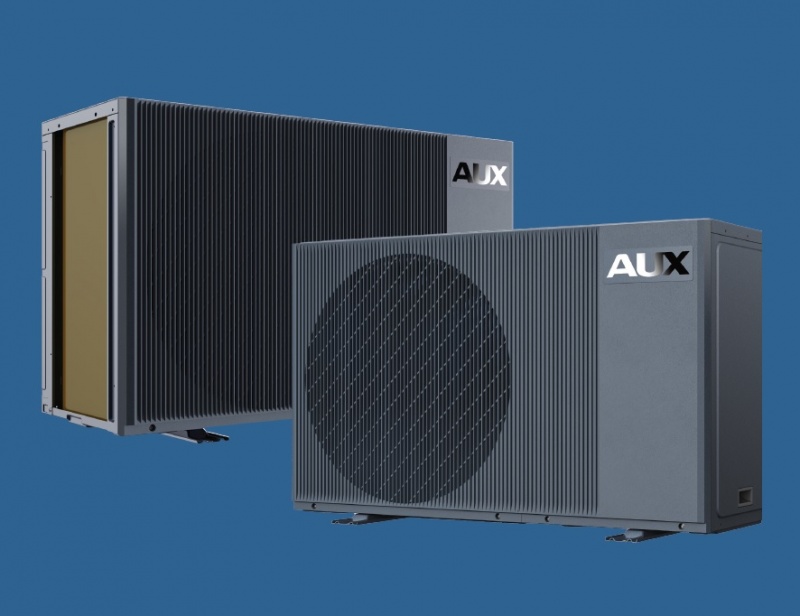

Possibility of connecting Aux ACHP-H06/4R2HA-M and in cascade (max. 8 units).
Minimum consumption: only 1.28 kW with underfloor heating!
The AI-THERMA monobloc air-water heat pump serves underfloor heating, radiators and fan coils.

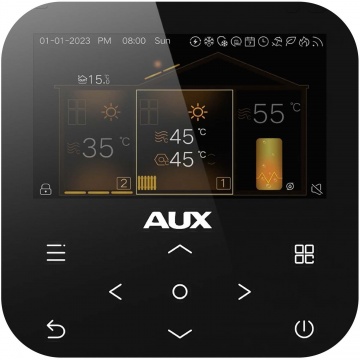

Easy control via the XK-08 wireless remote control with multiple settable options.
Control also via mobile phone: allows customization of settings such as parameter tracking and remote control.
The AI Therma monobloc 6 kW can also be connected to a backup power source and solar panels.

Specificații

Heat pump type monobloc
Refrigerant R290
EER/COP 3.1/4.95 W/W
Water side (leaving water temperature)
- Răcire (cooling) : 5-25 °C
- Încălzire (heating) : 25-80 °C
- Încălzire apă (water heating) : 30-75 (boiler/water tank) °C
Heat source (user side)
- Răcire (cooling) : -5-48 °C
- Încălzire (heating) : -25-35 °C
- Încălzire apă (water heating) : -25-43 °C
Outdoor unit (ODU) ▼
Power supply 220-240/50/1 V/Hz/Ph
Cooling capacity 6.8 kW
Heating capacity 6.35 kW
Power input
- Răcire (cooling) : 1.28 kW
- Încălzire (heating) : 1.28 kW
25 → 80 °C
Sound pressure level
- Răcire (cooling) : 42 db(A)
- Încălzire (heating) : 43 db(A)
Refrigerant charge 0.55 kg
Piping connection gas - mm
Piping connection liquid - mm
Dimensions (W x D x H) 1130 x 420 x 704 mm
Net weight ODU 93 kg
Indoor hydro unit ▼
Power supply IDU V/Hz/Ph
Leaving water temperature
- Răcire podea (floor cooling) : - °C
- Răcire ventiloconv. (fan coil cooling) : - °C
- Încălzire podea (floor heating) : - °C
- Încălzire ventiloconv. (fan coil heating) : - °C
Pump
- Tip (type) : -
- Putere (power input) W : -
- Limită debit apă (water flow limit) l/m² : -
Electric heater
- Inclusa (included) : -
- Neinclusa (not included) : -
Sound pressure level IDU (M) - db(A)
Connecting pipe hydro
- Gaz (gas) : - mm
- Lichid (liquid) : - mm
Dimensions (L x W x H) - mm
Net weight IDU - kg

Tabel comparativ

Aux AI Therma Monobloc R290 heat pumps
Modele		Aux AI Therma Monobloc 6 kW	Aux AI Therma Monobloc 8 kW	Aux AI Therma Monobloc 8 kW (380V)	Aux AI Therma Monobloc 10 kW (380V)	Aux AI Therma Monobloc 12 kW (380V)	Aux AI Therma Monobloc 14 kW (380V)	Aux AI Therma Monobloc 16 kW (380V)	Aux AI Therma Monobloc 22 kW (380V)	Aux AI Therma Monobloc 26 kW (380V)
Heat pump type		monobloc	monobloc	monobloc	monobloc	monobloc	monobloc	monobloc	monobloc	monobloc
Refrigerant		R290	R290	R290	R290	R290	R290	R290	R290	R290
Water side (leaving water temperature) (°C)	Răcire (cooling)	5-25	5-25	5-25	5-25	5-25	5-25	5-25	5-25	5-25
	Încălzire (heating)	25-80	25-80	25-80	25-80	25-80	25-80	25-80	25-80	25-80
	Încălzire apă (water heating)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)	30-75 (boiler/water tank)
Heat source (user side) (°C)	Răcire (cooling)	-5-48	-5-48	-5-48	-5-48	-5-48	-5-48	-5-48	-5-48	-5-48
	Încălzire (heating)	-25-35	-25-35	-25-35	-25-35	-25-35	-25-35	-25-35	-25-35	-25-35
	Încălzire apă (water heating)	-25-43	-25-43	-25-43	-25-43	-25-43	-25-43	-25-43	-25-43	-25-43
Outdoor unit (ODU)		▼	▼	▼	▼	▼	▼	▼	▼	▼
Power supply (V/Hz/Ph)		220-240/50/1	220-240/50/1	380-400/50/3	380-400/50/3	380-400/50/3	380-400/50/3	380-400/50/3	380-400/50/3	380-400/50/3
Cooling capacity (kW)		6.8	7.5	7.5	8.9	11.5	12.7	14.0	22.0	26.0
Heating capacity (kW)		6.35	8.4	8.4	10.0	12.0	14.0	15.1	22.0	26.0
Power input (kW)	Răcire (cooling)	1.28	1.68	1.68	2.74	3.80	4.38	5.09	4.59	4.64
Power input (kW)	Încălzire (heating)	1.28	1.68	1.68	2.8	2.45	2.92	3.21	4.80	5.45
(°C)		25 → 80	25 → 80	25 → 80	25 → 80	25 → 80	25 → 80	25 → 80	25 → 80	25 → 80
Dimensions (W x D x H) (mm)		1130 x 420 x 704	1280 x 420 x 1040	1280 x 420 x 1040	1280 x 420 x 1040	1280 x 420 x 1040	1280 x 420 x 1040	1280 x 420 x 1040	1480 x 580 x 1975	1480 x 580 x 1975
Indoor hydro unit		▼	▼	▼	▼	▼	▼	▼	▼	▼
Power supply IDU (V/Hz/Ph)
Leaving water temperature (°C)	Răcire podea (floor cooling)	-	-	-	-	-	-	-	-	-
	Răcire ventiloconv. (fan coil cooling)	-	-	-	-	-	-	-	-	-
	Încălzire podea (floor heating)	-	-	-	-	-	-	-	-	-
	Încălzire ventiloconv. (fan coil heating)	-	-	-	-	-	-	-	-	-
