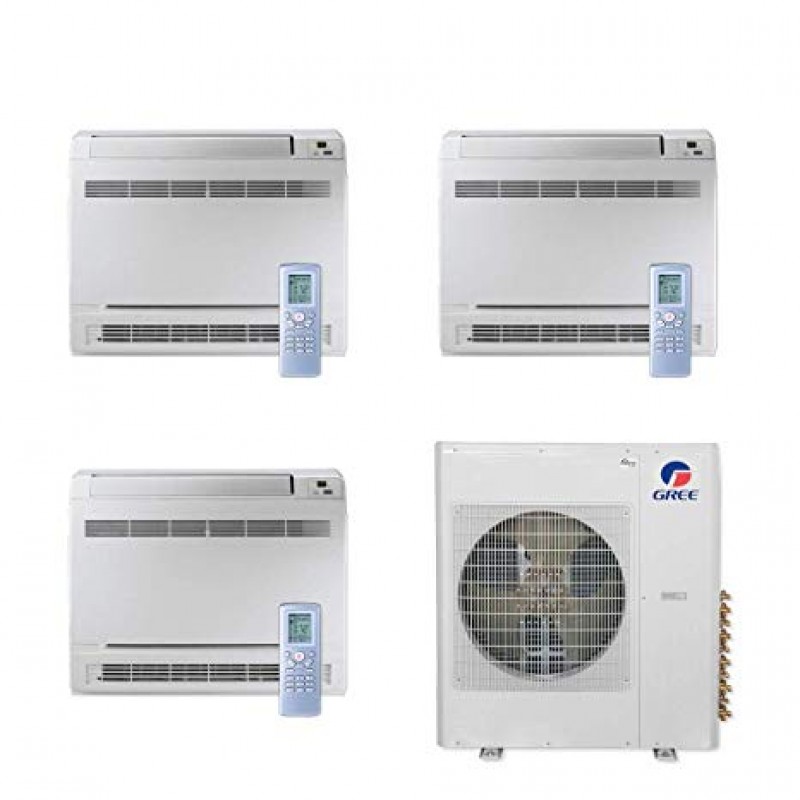

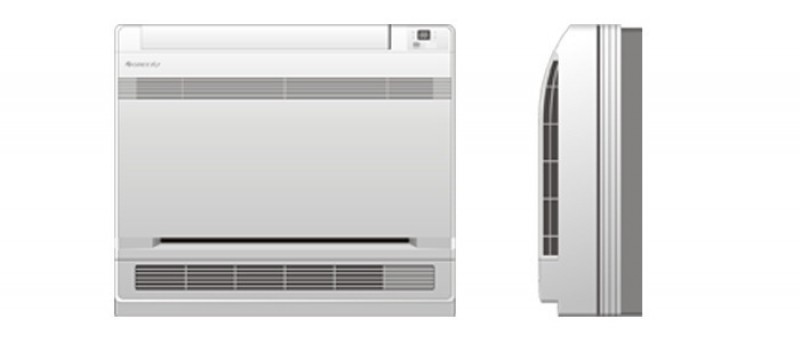

Console type inverter Gree Console 18000 BTU (R410A)

Gree Console R410A IDU - 2Gree Console R410A IDU - 3Gree Console R410A IDU - 1
qr Ai observat o eroare?

COD PRODUS

Solicită ofertă PDF

Light commercial alternative for your home and office

  • Slim body and flexible installation on floor.
  • Properly matches with various indoord decorations, meeting the modern needs for comfort.
  • Led display and intelligent defrosting.
  • Sleep curves, cold air prevention and auto clean functions.
  • Automatic operation, low voltage startup and self-diagnosis.
  • In order to combine with Super Free-Match, you need branch-box.
  • Wi-Fi is included in models with K3DNA1D termination.

Specificații

  • Power supply 220-240/50/1 V/Hz/Ph
  • Refrigerant R410A
  • BTU cooling 18000 BTU
  • BTU heating 19800 BTU
  • Cooling capacity 5,3 kW
  • Heating capacity 5,8 kW
  • Power consumption C 1,63 kW
  • Power consumption H 1,52 kW
  • SEER/SCOP 5,8/3,8 W/W
  • EER/COP 3,23/3,62 W/W
  • Rated current C/H 3,23/3,62 A/A
  • Air flow volume (M) 650 m³/h
  • Piping connection liquid 6 mm
  • Piping connection gas 12 mm
  • Control Remote, Wired (optional), WI-FI, Centralized (optional)
  • Sound pressure level (M) 44 dB (A)
  • Net dimensions (WxDxH) 700 x 215 x 600 mm
  • Net weight 15 kg
  • Sound power level (M) 54 dB (A)
  • Free-Match compatibility GWHD(36)NK3BO, GWHD(42)NK3AO
  • Super Free-Match compatibility GWHD(56S)NK3CO, GWHD(48S)NM3DO, GWHD(56S)NM3DO

Tabel comparativ

Console (R410A)
Modele GEH09AA-K3DNA1D/IGEH12AA-K3DNA1D/IGEH18AA-K3DNA1D/I
Power supply (V/Hz/Ph)220-240/50/1220-240/50/1220-240/50/1
RefrigerantR410AR410AR410A
BTU cooling (BTU)90001200018000
BTU heating (BTU)95001300019800
Cooling capacity (kW)2,63,55,3
Heating capacity (kW)2,83,85,8
Air flow volume (M) (m³/h)480550650
Piping connection liquid (mm)666
Piping connection gas (mm)9,529,5212
ControlRemote
Wired (optional)
WI-FI
Centralized (optional)		Remote
Wired (optional)
WI-FI
Centralized (optional)		Remote
Wired (optional)
WI-FI
Centralized (optional)
Sound pressure level (M) (dB (A))363844
Net dimensions (WxDxH) (mm)700 x 215 x 600700 x 215 x 600700 x 215 x 600
Net weight (kg)151515
Sound power level (M) (dB (A))464854
Free-Match compatibility
Super Free-Match compatibility

Accesorii

Centralized controller Gree CE50-24/E

Centralized controller Gree CE50-24/E
Wired controller Gree XK76

Wired controller Gree XK76
