Copeland Scroll ZH 50KCE-TFD-455 (R134a)

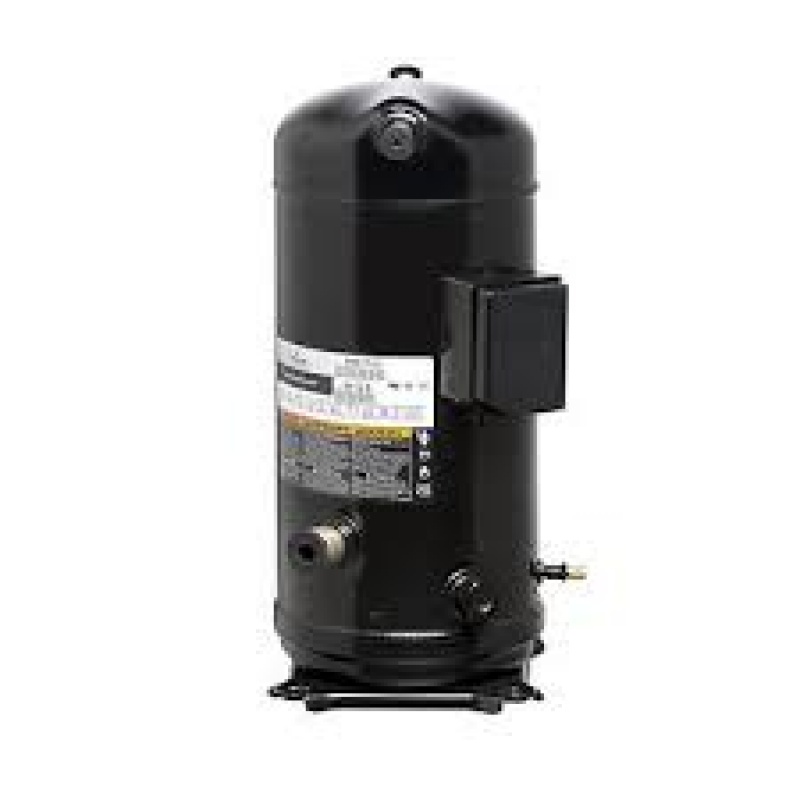

Compresor Copeland Scroll ZH50-KCE-TFD455

nou

Ai observat o eroare?

COD DTN

8620622

COD PRODUS

ZH50KCE-TFD-455

COMPRESSOR ZH50-KCE-TFD455 COPELAND R-134a only

Solicită ofertă PDF

Compressor Copeland Scroll ZH50-KCE-TFD455, three-phase, 50.9 kW, heat recovery, R134a

Scroll compressor ZH50 specially designed for heat recovery.
Applications: recovery of heat released by refrigerating or heat recovery equipment, domestic water heating equipment.
Scroll of 10.0 HP, with special vaporization temperatures between +20°C and +40ºC.
Compatible refrigerant: R134a.
Refrigerating capacities exposed to the heating structure (!).
Fixed speed compressor.
It can be used both individually and in tandem.

Specificații

Power supply 380-420/50/3 V/Hz/Ph
Application Recup. caldura (Heat Recovery)
Refrigerant R134a, R134a
Nominal HP 10.0 HP
Nominal capacity 50.9 kW
Displacement 29.1 m³/h
Net weight 61 kg
Maximum current 23 A
Cooling capacity [W] / Evapor. temp. [°C]*
- -35°C : - W
- -30°C : - W
- -25°C : - W
- -20°C : - W
- -15°C : - W
- -10°C : - W
- -5°C : - W
- 0°C : - W
- 5°C : - W
- 10°C : - W
- 15°C : - W
Specific COP 4.5 W/W
Product variation 455 - compressor with brazing stub tubes and oil sight glass - single or parallel capable (conexiuni sudabile și vizor de ulei, montare individuală sau în paralel)
Stub suction 1 3/8 "
Stub discharge 7/8 "
Oil quantity 3.4 l
Dimensions (L x W x H) 264 x 285 x 533 mm
Sound pressure @1m 63 db(A)
Heating capacity [W] / Evap. temp. [°C]* (W)
- -30°C : W
- -15°C : W
- -10°C : W
- -5°C : W
- 0°C : W
- +5°C : W
- +10°C : 23.1 W
- +15°C : 26.6 W
- +20°C : 30.6 W
- +25°C : 35.2 W
- +30°C : 40.5 W
- +35°C : 46.7 W
- +40°C : 53.8 W

Notes:

**capacities available for R404A/R507, 45°C condensing temperature

Tabel comparativ

Copeland scroll ZH compressors
Modele	Power supply (V/Hz/Ph)	Application	Refrigerant	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	Cooling capacity [W] / Evapor. temp. [°C]* (W)											Stub suction (")	Stub discharge (")	Heating capacity [W] / Evap. temp. [°C]* (W) (W)
Modele	Power supply (V/Hz/Ph)	Application	Refrigerant	Nominal HP (HP)	Nominal capacity (kW)	Displacement (m³/h)	-35°C	-30°C	-25°C	-20°C	-15°C	-10°C	-5°C	0°C	5°C	10°C	15°C	Stub suction (")	Stub discharge (")	-30°C	-15°C	-10°C	-5°C	0°C	+5°C	+10°C	+15°C	+20°C	+25°C	+30°C	+35°C	+40°C
ZH40KCE-TFD-455	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	7.5	39	22.1	-	-	-	-	-	-	-	-	-	-	-	1 1/8	7/8							16.9	19.7	22.9	26.5	30.7	35.6	41.1
ZH45KCE-TFD-455	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	9.0	44	24.9	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8							20.2	23.2	26.5	30.5	35.0	40.3	46.5
ZH50KCE-TFD-455	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	10.0	50.9	29.1	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8							23.1	26.6	30.6	35.2	40.5	46.7	53.8
ZH64KCE-TFD-455	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	13.0	63.7	36.4	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8							28.7	33.1	38.1	43.9	50.7	58.4	67.3
ZH75KCE-TFD-455	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	15	76.0	43.4	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8							34.8	39.9	45.8	52.6	60.5	69.7	80.3
ZH100KCE-TWD-522	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	20	96.1	56.6	-	-	-	-	-	-	-	-	-	-	-	1 5/8	1 3/8							46.4	52.6	59.9	68.3	77.9	88.9	101.5
ZH125KCE-TWD-522	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	25	120	71.4	-	-	-	-	-	-	-	-	-	-	-	1 5/8	1 3/8							57.6	65.4	74.4	84.8	96.9	111.0	127.0
ZH150KCE-TWD-522	380-420/50/3	Recup. caldura (Heat Recovery)	R134a R134a	30	148.8	87.5	-	-	-	-	-	-	-	-	-	-	-	1 5/8	1 3/8							71.0	80.7	91.9	105.0	120.0	137.0	157.0
ZH04K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	1.8	4.2	3.4	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	3300	3900	4500	5200	6000	6800	7600	-	-	-	-	-
ZH06K1P-PFZ-524	220-240/50/1	Pompe caldura (Heat Pumps)	R410A R410A	2.0	5.0	4.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	4200	4800	5400	6100	6900	7750	8600	-	-	-	-	-
ZH05K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	2.0	5.0	4.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	4200	4800	5400	6100	6900	7750	8600	-	-	-	-	-
ZH06K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	2.7	6.6	5.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	4900	5700	6500	7400	8400	9600	10800	-	-	-	-	-
ZH09K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	3.5	9.0	6.9	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	7100	8200	9500	10900	12500	14450	16400	-	-	-	-	-
ZH12K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	4.5	11.4	8.9	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	9200	10500	12100	13900	15900	18450	21000	-	-	-	-	-
ZH15K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	5.0	15.1	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	12000	13800	15900	18400	21100	24400	27700	-	-	-	-	-
ZH19K1P-TFM-524	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	6.5	18.7	14.8	-	-	-	-	-	-	-	-	-	-	-	7/8	3/4	-	15200	17500	20200	23200	26700	30900	35100	-	-	-	-	-
ZHI05K1P-TFD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	1.9	5.2	3.4	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	2600	4200	4800	5400	6100	6900	7750	8600	-	-	-	-	-
ZHI08K1P-TFM-526	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	2.8	8.2	5.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	5000	6700	7600	8400	9400	10500	11800	13100	-	-	-	-	-
ZHI11K1P-TFM-526	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	3.6	10.8	6.9	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	6400	9000	10100	11300	12600	14000	15600	17200	-	-	-	-	-
ZHI18K1P-TFM-526	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	5.0	17.9	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	10800	14900	16700	18700	20900	23200	26000	28700	-	-	-	-	-
ZHI23K1P-TFD-476	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	6.5	22.8	14.8	-	-	-	-	-	-	-	-	-	-	-	7/8	3/4	13800	19000	21300	23900	26600	29700	33200	36700	-	-	-	-	-
ZHI27K1P-TFD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	9.0	27.0	16.8	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	14200	22100	25100	28400	31800	35500	39700	43800	-	-	-	-	-
ZHI32K1P-TFD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	10.0	31.7	19.8	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	16400	26100	29500	33200	37100	41400	46200	51100	-	-	-	-	-
ZHI35K1P-TFD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	12.0	35.6	22.1	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	19500	29200	33100	37300	41900	46700	52000	57400	-	-	-	-	-
ZHI40K1P-TFD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	13.0	39.7	24.9	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	21700	32500	36900	41700	47000	52700	59000	65600	-	-	-	-	-
ZHI46K1P-TWD-477	380-420/50/3	Pompe caldura (Heat Pumps)	R410A R410A	15.0	46.3	29.1	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	26400	38700	43500	48700	54400	60500	67500	74400	-	-	-	-	-
ZH12K4E-PFZ-424	220-240/50/1	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	1.7	3.7	4.7	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	2800	3300	3900	4600	5400	6450	7500	-	-	-	-	-
ZH15K4E-PFJ-524	220-240/50/1	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	2.0	4.6	5.8	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	3600	4300	5000	5800	6800	8000	9200	-	-	-	-	-
ZH15K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	2.0	4.6	5.8	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	3600	4300	5000	5800	6800	8000	9200	-	-	-	-	-
ZH21K4E-PFJ-524	220-240/50/1	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	3.0	6.5	8.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	5100	5900	6900	8100	9600	11400	13200	-	-	-	-	-
ZH21K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	3.0	6.5	8.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	5100	5900	6900	8100	9600	11400	13200	-	-	-	-	-
ZH26K4E-PFJ-524	220-240/50/1	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	3.5	8.2	10.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	6300	7400	8700	10300	12100	14300	16500	-	-	-	-	-
ZH26K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	3.5	8.2	10.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	-	6300	7400	8700	10300	12100	14300	16500	-	-	-	-	-
ZH30K4E-PFJ-524	220-240/50/1	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	4.0	9.5	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	7300	8600	10100	11900	14000	16600	19200	-	-	-	-	-
ZH30K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	4.0	9.5	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	7300	8600	10100	11900	14000	16600	19200	-	-	-	-	-
ZH38K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	5.0	11.7	14.4	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	9000	10600	12500	14600	17200	20300	23400	-	-	-	-	-
ZH38K4E-TFD-424	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	5.0	11.7	14.4	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	9000	10600	12500	14600	17200	20300	23400	-	-	-	-	-
ZH45K4E-TFD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	6.0	14.0	17.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	10800	12700	14900	17400	20300	23750	27200	-	-	-	-	-
ZH45K4E-TFD-424	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	6.0	14.0	17.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	-	10800	12700	14900	17400	20300	23750	27200	-	-	-	-	-
ZH56K4E-TWD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	7.5	17.4	20.9	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	-	13400	15800	18600	21800	25500	29800	34100	-	-	-	-	-
ZH56K4E-TWD-924	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	7.5	17.4	20.9	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	-	13400	15800	18600	21800	25500	29800	34100	-	-	-	-	-
ZH75K4E-TWD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	10.0	24.2	28.8	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	-	18500	21900	25800	30300	35500	41550	47600	-	-	-	-	-
ZH75K4E-TWD-924	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	10.0	24.2	28.8	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	-	18500	21900	25800	30300	35500	41550	47600	-	-	-	-	-
ZH92K4E-TWD-524	380-400/50/3	Pompe caldura (Heat Pumps)	R134a R407C R134a R407C	130	30.7	35.6	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	-	23400	27800	32800	38500	45100	52700	60300	-	-	-	-	-
ZH06KVE-TFM-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	2.5	6.2	5.8	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	3300	4900	5700	6500	7400	8400	5820	10800	-	-	-	-	-
ZH09KVE-PFZ-526	220-240/50/1	Pompe caldura (Heat Pumps)	R407C R407C	3.0	8.2	8.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	4100	6600	7600	8700	9900	11200	12750	14300	-	-	-	-	-
ZH09KVE-TFD-426	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	3.0	8.2	8.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	4100	6600	7600	8700	9900	11200	12750	14300	-	-	-	-	-
ZH09KVE-TFD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	3.0	8.2	8.0	-	-	-	-	-	-	-	-	-	-	-	3/4	1/2	4100	6600	7600	8700	9900	11200	12750	14300	-	-	-	-	-
ZH13KVE-PFJ-526	220-240/50/1	Pompe caldura (Heat Pumps)	R407C R407C	4.0	11.8	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	5700	9500	10900	12500	14300	16200	18450	20700	-	-	-	-	-
ZH13KVE-TFD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	4.0	11.8	11.7	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	5700	9500	10900	12500	14300	16200	18450	20700	-	-	-	-	-
ZH18KVE-TFD-426	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	6.0	16.7	17.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	8000	13500	15400	17600	20000	22600	25650	28700	-	-	-	-	-
ZH18KVE-TFD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	6.0	16.7	17.1	-	-	-	-	-	-	-	-	-	-	-	7/8	1/2	8000	13500	15400	17600	20000	22600	25650	28700	-	-	-	-	-
ZH24KVE-TWD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	7.5	21.3	20.9	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	9700	17000	19600	22500	25500	28900	32800	36700	-	-	-	-	-
ZH33KVE-TWD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	10.0	29.5	29.0	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	14300	23700	27200	31100	35300	40000	45350	50700	-	-	-	-	-
ZH40KVE-TWD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	13.0	37.0	35.5	-	-	-	-	-	-	-	-	-	-	-	1 3/8	7/8	18100	29600	34100	39100	44700	50900	58200	65500	-	-	-	-	-
ZH48KVE-TWD-526	380-400/50/3	Pompe caldura (Heat Pumps)	R407C R407C	15.0	44.7	42.8	-	-	-	-	-	-	-	-	-	-	-	1 5/8	7/8	21100	35600	41100	47200	54100	61800	71100	80400	-	-	-	-	-
