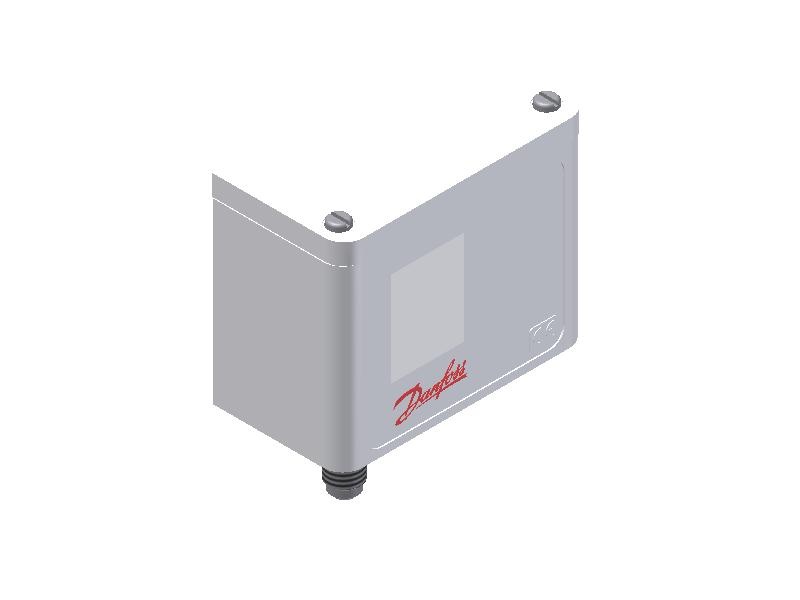

Danfoss KP7W/060-120366 pressure switch

Danfoss high pressure (HP) pressure switch, KP range, 8-32 bar, auto reset, weldable connection

• High pressure pressure switch with auto reset for refrigeration and air conditioning systems to provide protection against excessively low suction pressure or excessively high discharge pressure.
• Adjustment range: 8-32 bars.
• Differential ∆p: 4-10 bar.
• Compatible refrigerants: R22, R134a, R404A, R407A, R407C, R407F, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A.
• The high-pressure pressure switch KP can be directly connected to a single-phase AC motor up to approx. 2 kW or installed in the control circuit of large DC and AC motors.
• Weldable connection: 6 mm (ODF).
• KP pressure switches are equipped with a single pole double throw (SPDT) switch. The switch position is determined by the pressure switch setting and the pressure at the connector.
