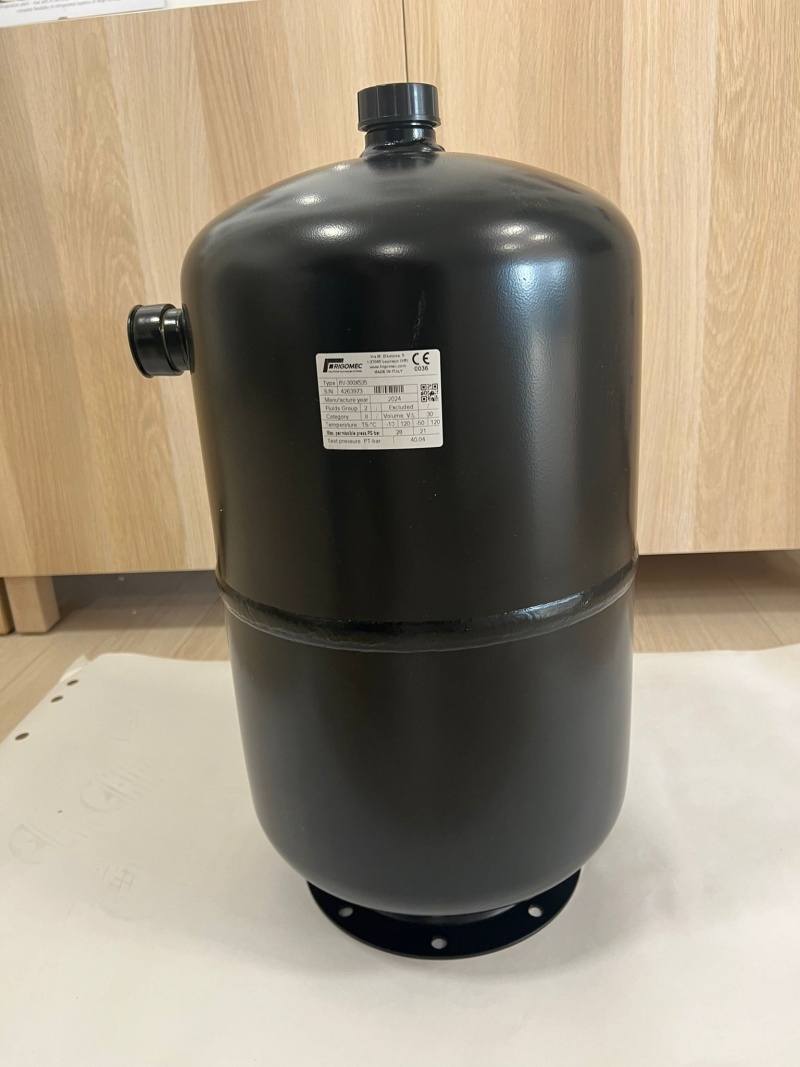

FrigoMEC suction receiver RV220 (30 l)

RV220 (300x535 mm) liquid receiver for condensing units, 30 liters, 28 bar, vertical installation

• Liquid refrigerant accumulator FrigoMEC RV220 19 liters for pressures of max. 28 bar* (example, R410A).
• It storages the refrigerant in liquid form facilitating its penetration to the upper circuit in controlled quantity.
• Do not mess with the liquid separator!
• Refrigerant accumulator with 1-1/3"/35 mm connection.
• Temperature range: -10 ... +120°C.
• Compatible refrigerants: HCFC – HFC – HFO –HC, R744 and other low GWP freon types.
• It is mounted immediately behind the condenser to mediate the heat exchange as quickly as possible.
• The liquid accumulator RV code indicates vertical installation.
• From the liquid receiver, the content is directed to the expansion valve.
• FrigoMEC RV-300X535 RV220 made in EU: Italy.

• * test pressure PT-bar: 40.04 bar.
