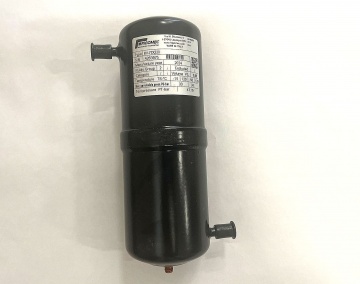

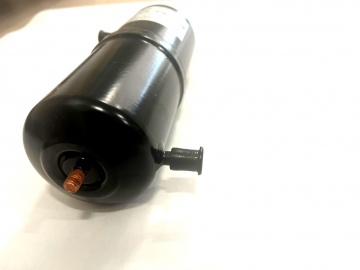

FrigoMEC suction receiver RV020 (0.88 l)

RV020 ( 77x220 mm) liquid receiver for condensing units, 0.88 l, 33 bar, vertical installation

• Liquid refrigerant accumulator FrigoMEC RV020 0.88 liters for pressures of max. 33 bar* (example, R410A).
• It storages the refrigerant in liquid form facilitating its penetration to the upper circuit in controlled quantity.
• Do not mess with the liquid separator!
• Refrigerant accumulator with 3/8 x 9.52 mm connection.
• Temperature range: -10 ... +120°C.
• Compatible refrigerants: HCFC – HFC – HFO –HC, R744 and other low GWP freon types.
• It is mounted immediately behind the condenser to mediate the heat exchange as quickly as possible.
• The liquid accumulator RV code indicates vertical installation.
• From the liquid receiver, the content is directed to the expansion valve.
• Made in EU: Italy.

* test pressure PT-bar: 47,9 bar.
