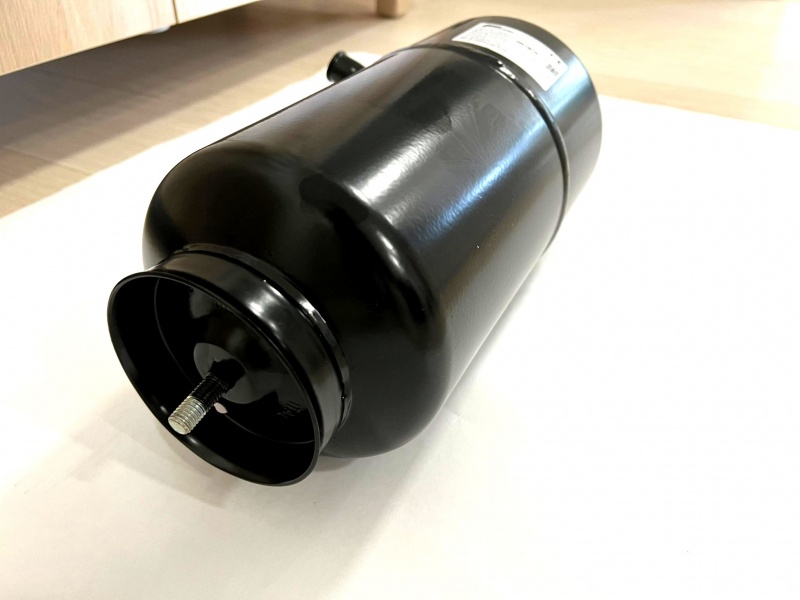

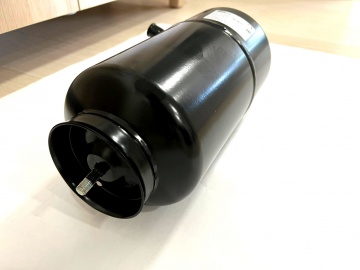

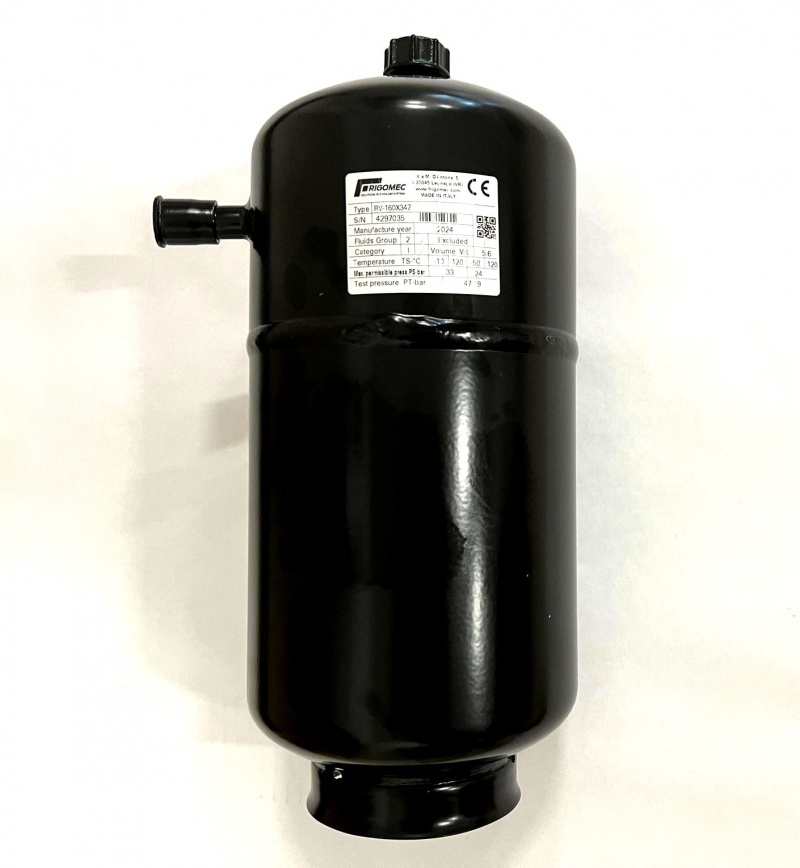

FrigoMEC suction receiver RV130 (5.6 l)

RV130 (160x347 mm) liquid receiver for condensing units, 5.6 l, 33 bar, vertical installation

• Liquid refrigerant accumulator FrigoMEC RV130 5.6 liters for pressures of max. 33 bar* (example, R410A).
• It storages the refrigerant in liquid form facilitating its penetration to the upper circuit in controlled quantity.
• Do not mess with the liquid separator!
• Refrigerant accumulator with 1"/12 mm connection.
• Temperature range: -10 ... +120°C.
• Compatible refrigerants: HCFC – HFC – HFO –HC, R744 and other low GWP freon types.
• It is mounted immediately behind the condenser to mediate the heat exchange as quickly as possible.
• The liquid accumulator RV code indicates vertical installation.
• From the liquid receiver, the content is directed to the expansion valve.
• FrigoMEC RV-160X347 RV130 made in EU: Italy.

• * test pressure PT-bar: 47,19 bar.
