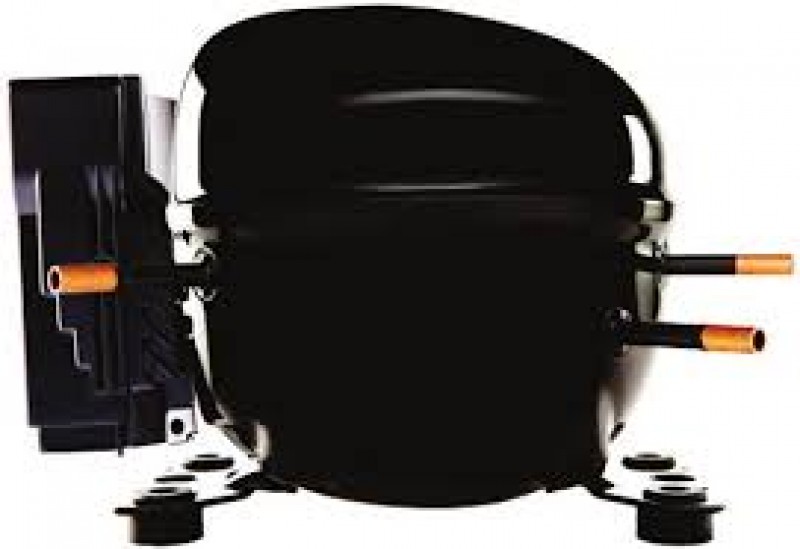

Hermetic compressor Embraco EMY3118Y

Ai observat o eroare?

COD DTN

101.25.0005

COD PRODUS

EMY3118Y

Solicită ofertă PDF

Embraco Aspera EMY3118Y single-phase motor, low temperatures (LBP), 12.2 cm³, R600a, static cooling

Aspera refrigeration compressor for freezing: static cooling.
Functional single-phase isobutane engine with a swept volume of 12.2 cc.
This professional compressor made in Europe stands out for its high energy efficiency, increased reliability and remarkable quietness.
EMY3118Y is an airtight compressor that can be successfully used to be refrigerator compressor, showcase compressor and refrigeration combine, refrigeration unit compressor.
Compared to other piston compressors on the market, Embraco Aspera technology stands out in that, during operation, energy consumption varies and adapts, leading to a reduction of even 40%.

Specificații

Power supply 220-240/50/1 V/Hz/Ph
Application LBP
Refrigerant R600a
Displacement 12.2 cm³
Weight 7.6 kg
Height 171 mm
Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C)
- -30°C : - W
- -25°C : - W
- -20°C : - W
- -15°C : - W
- -10°C : - W
- -5°C : - W
Capacity (rated point ASHRAE -23,3°C) 212 W
Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C)
- -30°C : - W
- -25°C : - W
- -20°C : - W
- -15°C : - W
- -10°C : - W
- -5°C : - W

Tabel comparativ

Embraco LBP (R600a)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Weight (kg)	Height (mm)	Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 45°C) (W)						Capacity (rated point ASHRAE -23,3°C) (W)	Cooling capacity [W] / Evapor. temp. [°C] (Condensing temp. 55°C) (W)
Modele	Power supply (V/Hz/Ph)	Application	Displacement (cm³)	Weight (kg)	Height (mm)	-30°C	-25°C	-20°C	-15°C	-10°C	-5°C	Capacity (rated point ASHRAE -23,3°C) (W)	-30°C	-25°C	-20°C	-15°C	-10°C	-5°C
EMY20CLC	220-240/50/1	LBP	3.97	7.5	166	40	54	71	92	116	144	61	34	45	60	77	98	121
EMX20CLC	220-240/50/1	LBP	4,0	7,5	166	44	58	76	96	119	146	63	36	49	64	82	102	126
EMY26CLC	220-240/50/1	LBP	5.2	7.4	166	55	73	95	121	152	187	83	45	61	81	105	133	165
EMX26CLC	220-240/50/1	LBP	5.2	-	166	53	72	96	124	156	192	81	43	59	80	104	133	165
EMT32CLP	220-240/50/1	LBP	5.96	7.1	158	64	85	112	143	178	220	97	53	71	95	122	154	190
EMY32CLC	220-240/50/1	LBP	5.96	7.4	166	64	86	111	141	176	218	97	53	72	94	120	151	189
EMX32CLC	220-240/50/1	LBP	6.0	7.5	166	64	86	111	141	176	218	92	49	69	92	119	151	189
EMX3109Y	100/50/1 / 100-127/60/1	LBP	6.2	-	171	-	-	-	-	-	-	100	-	-	-	-	-	-
EMY40CLC	220-240/50/1	LBP	7.24	7.6	166	80	107	136	171	214	267	119	66	90	116	148	186	232
EMC40CLT	220-240/50/1	LBP	7.2	-	117	88	118	154	198	248	300	117	78	107	142	187	233	260
EMY46CLC	220-240/50/1	LBP	7.96	7.7	166	90	120	157	200	249	303	135	75	102	135	174	219	268
EMX46CLC	220-240/50/1	LBP	7.96	7.7	166	90	120	157	200	249	303	135	75	102	135	174	219	268
EMC46CLT	220-240/50/1	LBP	8.0	-	166	95	129	169	215	269	310	133	88	119	158	203	256	280
EMX3113Y	100/50/1 / 100-127/60/1	LBP	9.0	8	155	-	-	-	-	-	-	155	-	-	-	-	-	-
EMY55CLP	220-240/50/1	LBP	9.05	7.7	166	102	135	175	222	277	340	156	85	114	150	192	241	296
EMX55CLC	220-240/50/1	LBP	9.0	7.4	156	102	135	175	222	277	339	156	87	117	154	197	245	303
EMX3115Y	100/50/1 / 100-127/60/1	LBP	10.6	7.6	166	-	-	-	-	-	-	184	-	-	-	-	-	-
EMY66CLP	220-240/50/1	LBP	10.62	7.9	166	118	156	202	256	320	394	177	98	134	175	224	280	346
EMX66CLC	220-240/50/1	LBP	10.6	-	166	122	160	207	261	323	394	183	101	137	178	227	284	348
EMX70CLC	220-240/50/1	LBP	11.1	7.7	166	123	164	210	263	327	403	191	103	143	184	233	290	360
EMX3118Y	220-240/50/1	LBP	12.2	7.7	166	-	-	-	-	-	-	212	-	-	-	-	-	-
EMY3118Y	220-240/50/1	LBP	12.2	7.6	171	-	-	-	-	-	-	212	-	-	-	-	-	-
EMX80CLT	220-240/50/1	LBP	12.2	7.9	171	139	185	240	305	380	464	213	118	162	207	265	331	406
NBY1118Y	220-240/50/1	LBP	14.3	10.6	195	159	206	266	339	427	529	244	138	183	234	299	375	464
