Horizontal dry siphon Tecnosystemi Siphon Stop Ø 40 mm

nou

Solicită ofertă PDF

Sifon condens anti-miros cu corp transparent inspectabil, diametru conexiuni 40 mm, model Tecnosystemi SCD300007

Air conditioning condensate siphon with horizontal installation, model Siphon Stop SCD300007.
Eliminates bad odor problems from your air conditioner, fan coil or other type of HVAC unit.
Diameter of lateral connections of 40 mm.

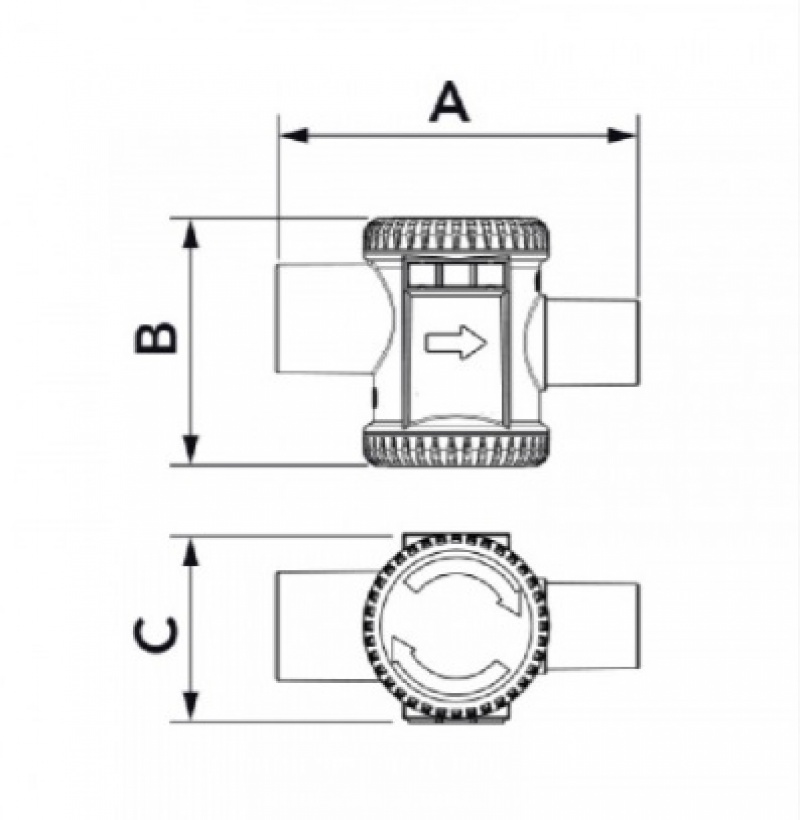

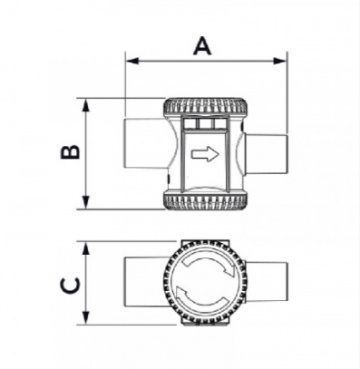

Main body dimensions: 153 x 105 x 78 mm.

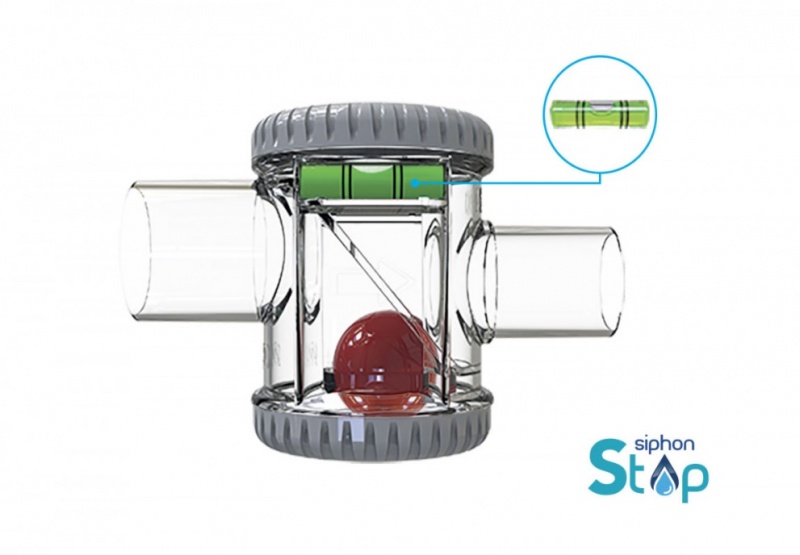

The new horizontal anti-odor siphon Siphon Stop is a necessary accessory to eliminate the problem of unpleasant odors from condensate leaks.

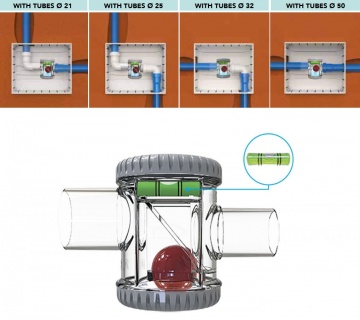

It is installed horizontally in the wall or in the false ceiling.
Spirit level included.

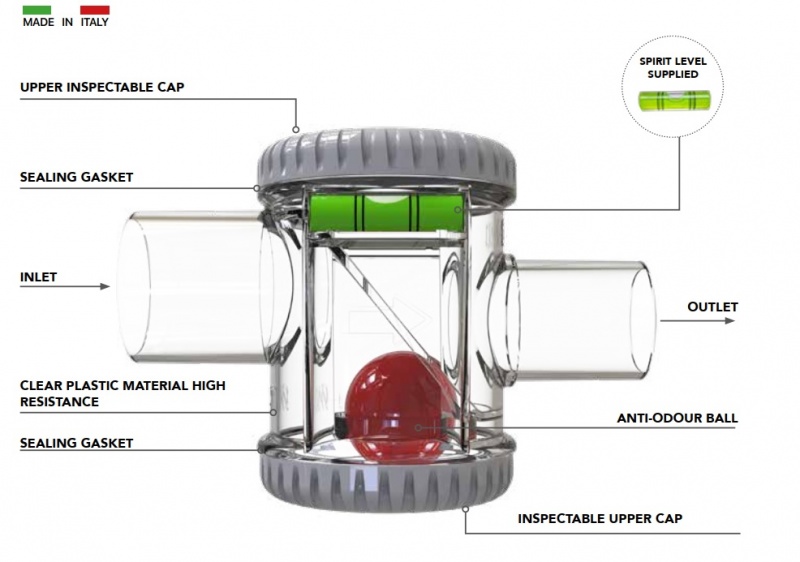

Condensate siphon with a transparent body made of shock-resistant material that allows internal inspection and its control for cleaning.
The two covers allow easy and quick checking, without disconnecting the air conditioning condensate tubes.

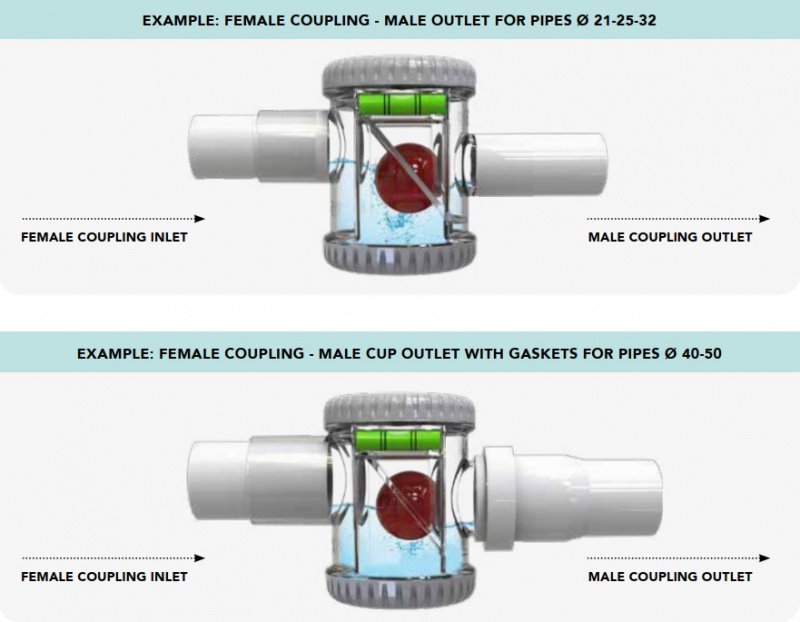

Tecnosystemi SCD300007 has a female input connection and a male output connection.
Recommended for residential, commercial and industrial HVAC installations.

Y fittings and sifones
Diameter (mm)	16 x 18 x 20 x 25	230 x 120	124 x 105 x 78 x 21	133 x 105 x 78 x 25	143 x 105 x 78 x 32	153 x 105 x 78 x 40	163 x 105 x 78 x 50
Colour	alb (white)	transparent și alb (transparent & white)	transparent și gri (transparent & gray)	transparent și gri (transparent & gray)	transparent și gri (transparent & gray)	transparent și gri (transparent & gray)	transparent și gri (transparent & gray)

Y fittings and sifones

Modele

Diameter (mm)

16 x 18 x 20 x 25

230 x 120
