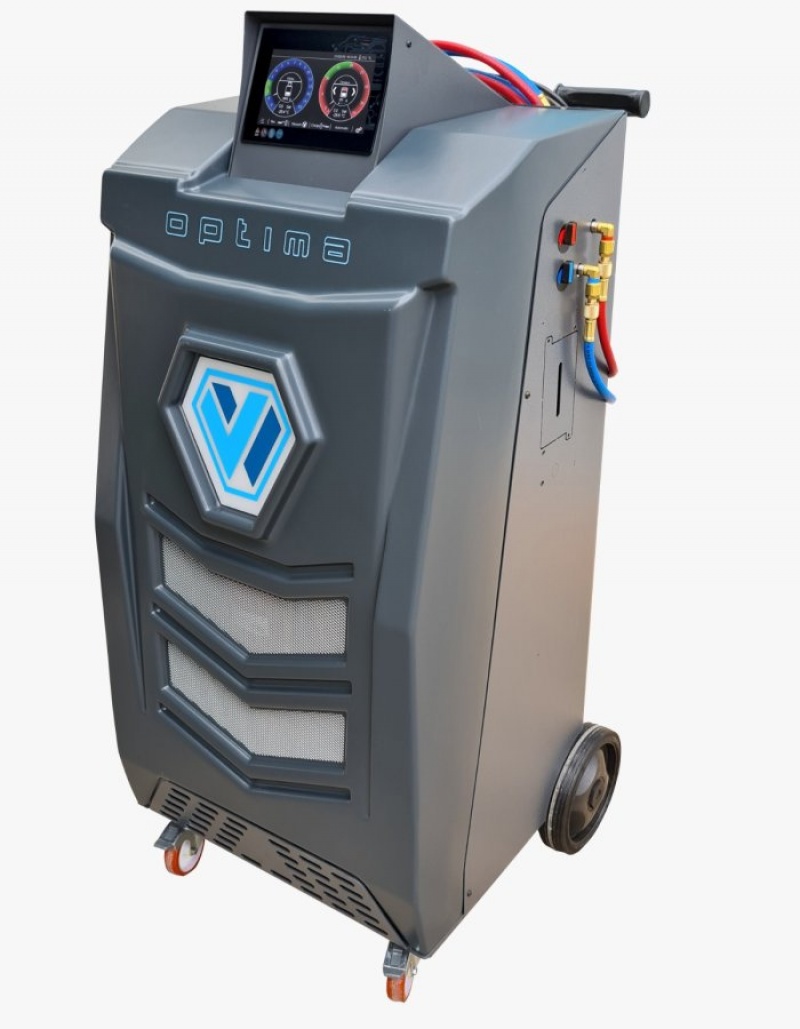

Refrigerant charging unit Wigam Optima P-Variant R134a/R1234yf

Statie incarcare cu freon Optima P-Variant 13003094

Statie incarcare refrigerant Wigam 13003094

Statie incarcare freon Wigam Optima P-Variant (R134a/R1234yf)

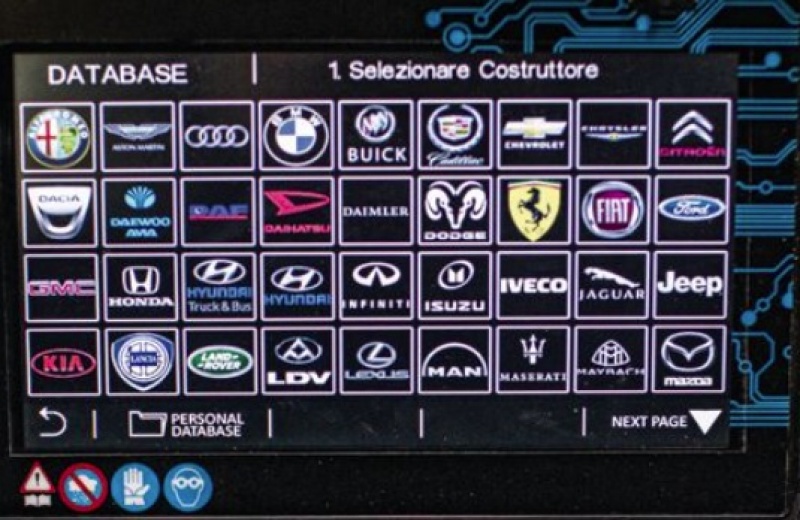

Display statie incarcare refrigerant Wigam

Statie incarcare refrigerant Wigam 13003094 OPTIMA

Ai observat o eroare?

COD PRODUS

Optima P-Variant 13003094

Solicită ofertă PDF

Wigam refrigerant charging station 13003094 for R134a and R1234yf with printer

Innovation and speed: refrigerant loading, recovery, recycling, vacuuming and data printing in one unit!
Wigam Optima P-Variant 13003094 - for both R134a and R1234yf.
Digital control via a 7" touch screen display.
New generation freon charging station for the maintenance and repair of car air conditioning systems for sale.
The 3 independent scales with 1g resolution for oils and additives, allow operation on hybrid and fully electric vehicles.
Refrigerant recovery up to 95%.
OPTIMA can be configured according to your own work procedures, choosing from multiple options and customizing your daily use.
Maximum precision of the amount of refrigerant, both in the recovery phase and in the charging phase.
Recovery rate: 300 gr./min.
Vacuum volume: 100 l/min.
Refrigerant charging station in accordance with industry standards and in full respect for the environment.
OPTIMA Printer Variant can also work with disposable hermetic dosimeters, by purchasing the special kit.
The refrigerant charging station configuration was also created for the "PLUG-IN" installation of the latest generation refrigerant analyzer, which interacts directly with the software.
Storage temperature: -10°C ... +50°C.
Ambient temperature of use: 0 ... +40°C.
Remarks: by purchasing the special topping-up kit, the unit will be selected for the required refrigerant in the first start-up phase and through a retrofit operation, it can be converted to use the other refrigerant. To be able to use the charging station, one of the following kits will be selected: Kit Wigam R134a 14010100 or Kit Wigam R1234uf 14010101. Other options: Analyzer Kit Wigam 09017024, Hermetic Dosimeters Start Kit Wigam 14028031.

Specificații

Refrigerant R134a, R1234yf
Functions & settings Automatic recovery, Automatic vacuum, Automatic refrigerant charge, Automatic oil charge (with scale), Automatic UV charge (with scale), Automatic oil discharge (with scale), Hybrid and electric car management, Flushing software (suitable with R134-1234FS/4-6/ZM), Automatic identification of leaks (vacuum test), Test with NITROGEN/AZOIDRO, Service connection for injection/pressurization ICS, Automatic lock scale ALS, Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.), Database can be updated, Printer
Number of bottles with dedicated load cells 3
Resolution scale refrigerant/oil/UV 5/1/1 g
Recovery of refrigerant up to 95 %
Recovery rate 300 g/min
Bottle capacity 10 kg
Dimensions (L x W x H) 540 x 560 x 1180 mm
Net weight 64 kg
Printer inclus (included)

Tabel comparativ

Refrigerant charging units
Modele	Refrigerant	Functions & settings	Number of bottles with dedicated load cells	Resolution scale refrigerant/oil/UV (g)	Recovery of refrigerant up to (%)	Recovery rate (g/min)	Bottle capacity (kg)	Dimensions (L x W x H) (mm)	Net weight (kg)	Printer
Optima Variant 13003093	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated	3	5/1/1	95	300	10	540 x 560 x 1180	64	neinclus (not included)
Optima P-Variant 13003094	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer	3	5/1/1	95	300	10	540 x 560 x 1180	64	inclus (included)
Optima+ Variant 13003097	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer Computerized discharge of non condensable gases Automatic valves (LOW-HIGH) ZERO emissions during oil discharge Climate regulation pressure bottle	3	5/1/1	99	300	10	540 x 560 x 1180	64	inclus (included)
X-treme 20 Multivariant 13003096	R134a R404A R407C R452A R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer	2	5/1/1	95	400	20	470 x 630 x 930	85	inclus (included)
