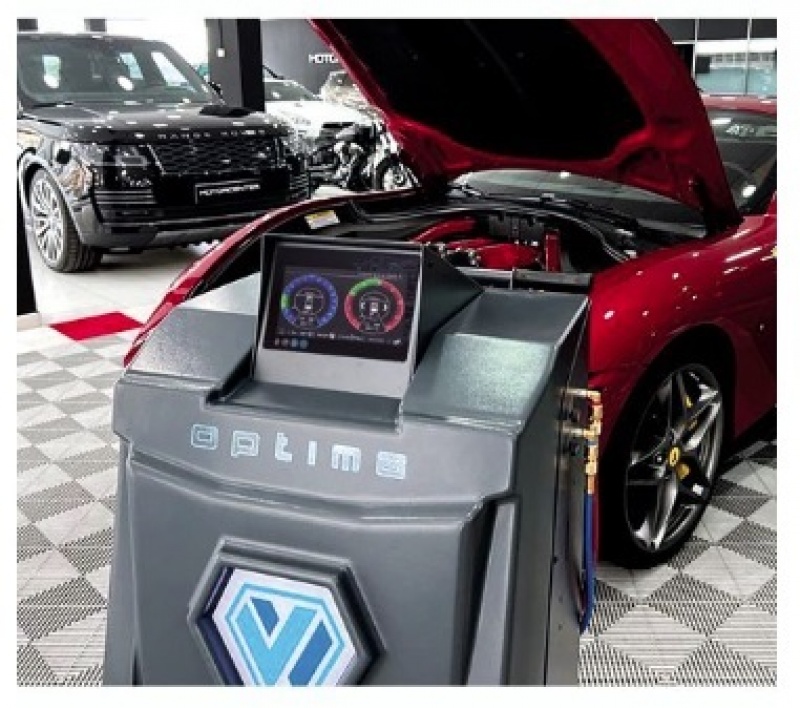

Refrigerant charging unit Wigam Optima+ Variant R134a/R1234yf

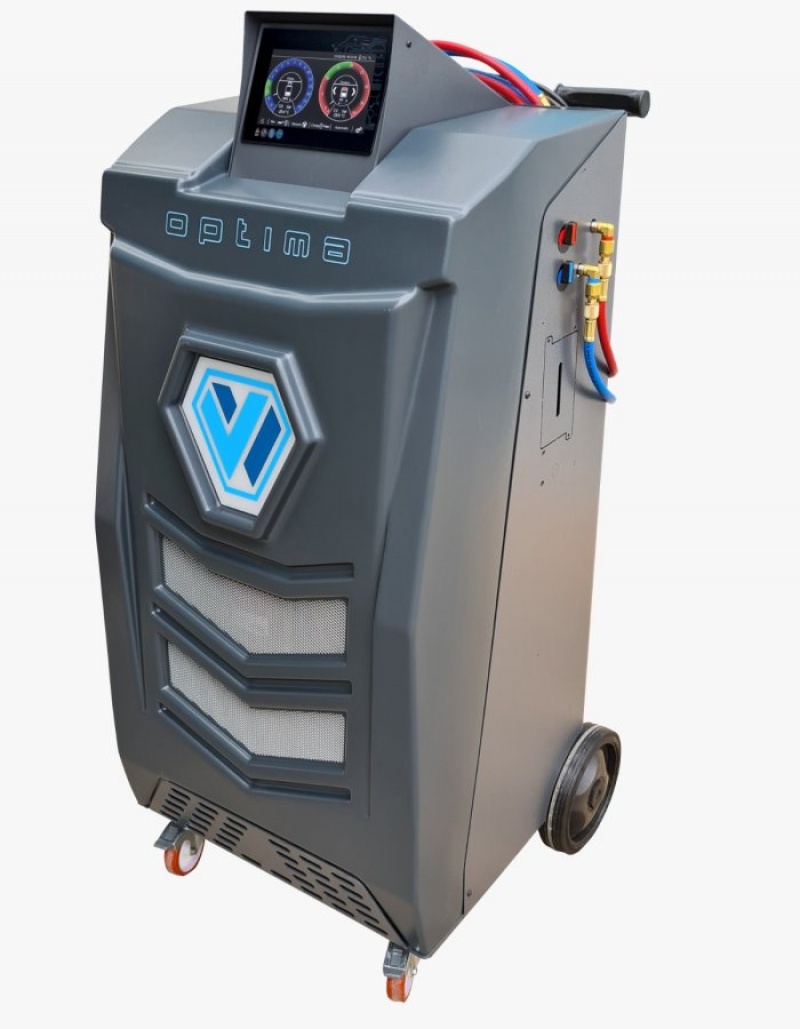

Statie incarcare cu freon Optima+ Variant 13003097

Statie incarcare refrigerant Wigam 13003097

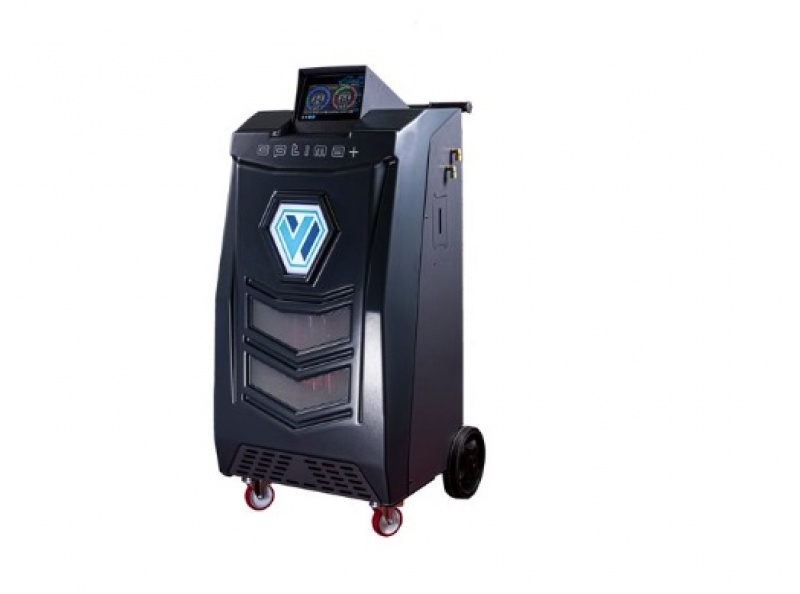

Statie incarcare freon Wigam Optima+ Variant (R134a/R1234yf)

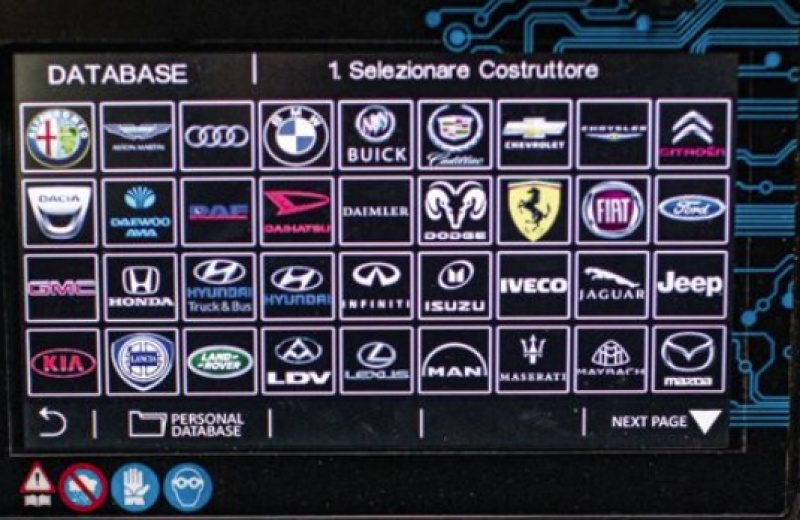

Display statie incarcare refrigerant Wigam

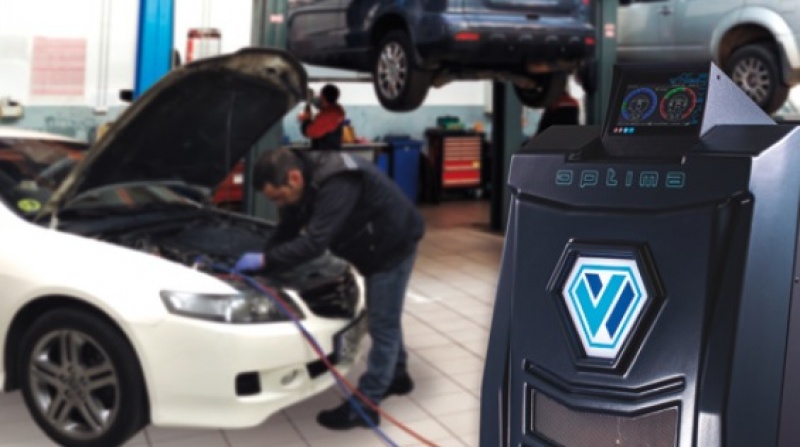

Statie incarcare refrigerant Wigam 13003097 OPTIMA+

Did you notice an error?

PRODUCT CODE

Optima+ Variant 13003097

Offer request PDF

Wigam refrigerant charging unit 13003097 R134a/R1234yf with printer and advanced computerization

Innovation and efficiency: refrigerant loading, recovery, recycling, vacuuming and data printing in one unit!
Wigam Optima+ Variant 13003097 - for both R134a and R1234yf.
Computerized non-condensable gas exhaust, automatic valves (low and high), zero emissions, pressure vessel for climate control.
Digital control via a 7" touch screen display.
Maximum accuracy load/evacuation rate (+/-15 g), equal to 99% of the total amount transported.
New generation freon charging station for the maintenance and repair of car air conditioning systems for sale.
The 3 independent scales with 1g resolution for oils and additives, allow operation on hybrid and fully electric vehicles.
Fully automatic unit.
Database that can be updated via USB memory.
Integrated printer: customized paper report with workshop/operator/vehicle data.
Automatic service alarm: the unit informs you when you need to replace the filter and oil in the vacuum pump. (I.A.S.).
OPTIMA+ can be configured according to your own work procedures, choosing from multiple options and customizing your daily use.
Recovery rate: 300 gr./min.
Vacuum volume: 100 l/min.
OPTIMA Plus Variant can also work with disposable hermetic dosimeters, by purchasing the special kit.
The freon charging station configuration was also created for the "PLUG-IN" installation of the latest generation refrigerant analyzer, which interacts directly with the software.
Storage temperature: -10°C ... +50°C.
Ambient temperature of use: 0 ... +40°C.
Remarks: by purchasing the special topping-up kit, the unit will be selected for the required refrigerant in the first start-up phase and through a retrofit operation, it can be converted to use the other refrigerant. To be able to use the charging station, one of the following kits will be selected: Kit Wigam R134a 14010100 or Kit Wigam R1234uf 14010101. Other options: Analyzer Kit Wigam 09017024, Hermetic Dosimeters Start Kit Wigam 14028031.

Specifications

Refrigerant R134a, R1234yf
Functions & settings Automatic recovery, Automatic vacuum, Automatic refrigerant charge, Automatic oil charge (with scale), Automatic UV charge (with scale), Automatic oil discharge (with scale), Hybrid and electric car management, Flushing software (suitable with R134-1234FS/4-6/ZM), Automatic identification of leaks (vacuum test), Test with NITROGEN/AZOIDRO, Service connection for injection/pressurization ICS, Automatic lock scale ALS, Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.), Database can be updated, Printer, Computerized discharge of non condensable gases, Automatic valves (LOW-HIGH), ZERO emissions during oil discharge, Climate regulation pressure bottle
Number of bottles with dedicated load cells 3
Resolution scale refrigerant/oil/UV 5/1/1 g
Recovery of refrigerant up to 99 %
Recovery rate 300 g/min
Bottle capacity 10 kg
Dimensions (L x W x H) 540 x 560 x 1180 mm
Net weight 64 kg
Printer inclus (included)

Comparative table

Refrigerant charging units
Modele	Refrigerant	Functions & settings	Number of bottles with dedicated load cells	Resolution scale refrigerant/oil/UV (g)	Recovery of refrigerant up to (%)	Recovery rate (g/min)	Bottle capacity (kg)	Dimensions (L x W x H) (mm)	Net weight (kg)	Printer
Optima Variant 13003093	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated	3	5/1/1	95	300	10	540 x 560 x 1180	64	neinclus (not included)
Optima P-Variant 13003094	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer	3	5/1/1	95	300	10	540 x 560 x 1180	64	inclus (included)
Optima+ Variant 13003097	R134a R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic UV charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer Computerized discharge of non condensable gases Automatic valves (LOW-HIGH) ZERO emissions during oil discharge Climate regulation pressure bottle	3	5/1/1	99	300	10	540 x 560 x 1180	64	inclus (included)
X-treme 20 Multivariant 13003096	R134a R404A R407C R452A R1234yf	Automatic recovery Automatic vacuum Automatic refrigerant charge Automatic oil charge (with scale) Automatic oil discharge (with scale) Hybrid and electric car management Flushing software (suitable with R134-1234FS/4-6/ZM) Automatic identification of leaks (vacuum test) Test with NITROGEN/AZOIDRO Service connection for injection/pressurization ICS Automatic lock scale ALS Beginning Check System (B.C.S.), Intelligent Alert System (I.A.S.) Database can be updated Printer	2	5/1/1	95	400	20	470 x 630 x 930	85	inclus (included)
